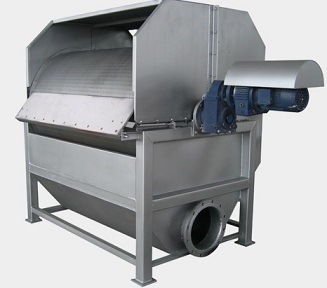

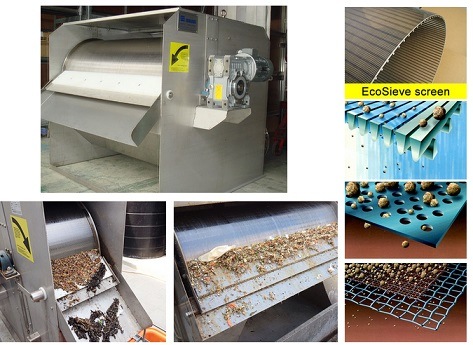

Externally fed drum screen filter
The externally fed drum screen filter is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case. The distance between each coil is the same as the desired filtering slot.
Operation

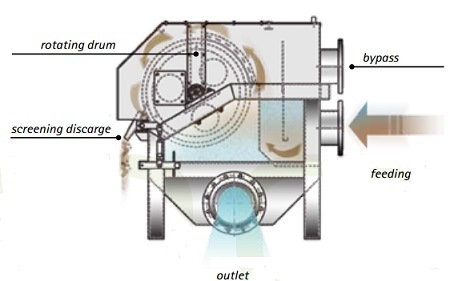

The liquids to be filtered flow in the feeding tank through a flanged inlet and are conveyed on the filter surface through a special distributor equipped with wet seal. The solids separation occurs there: the solids are kept and made to rotate by the external surface of the rotating filter, and, finally, discharged by a brass cleaning blade. The liquid filtered passes through the filtering drum, where it is washed again on the opposite side of the filter, conveyed on the tank bottom and then discharged. The filter rotates thanks to a bath oil gearbox directly connected at the rotating drum filter. Inside the rotating filter there is or a washing system equipped with nozzles (mobile washing system), which work with high-pressure water, or a bar composed of a set of spray nozzles (fixed washing system), through which the filtering drum can be periodically cleaned.
Technical parameter
Advantages
Water separation treatment of industrial waste water in these industries :-
Packaging & Shipping
Packaging
1. All the products are packed in seaworthy wooden cases.
2.Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Externally fed drum screen filter
Operation
The liquids to be filtered flow in the feeding tank through a flanged inlet and are conveyed on the filter surface through a special distributor equipped with wet seal. The solids separation occurs there: the solids are kept and made to rotate by the external surface of the rotating filter, and, finally, discharged by a brass cleaning blade. The liquid filtered passes through the filtering drum, where it is washed again on the opposite side of the filter, conveyed on the tank bottom and then discharged. The filter rotates thanks to a bath oil gearbox directly connected at the rotating drum filter. Inside the rotating filter there is or a washing system equipped with nozzles (mobile washing system), which work with high-pressure water, or a bar composed of a set of spray nozzles (fixed washing system), through which the filtering drum can be periodically cleaned.
| Model | Net tube size D*L | Rotating speed r/min | Power KW | Backwash water | |
| Flow m³/h | Pressure MPa | ||||
| JXMD-600 | 600*1000 | 4-20r/min | 0.75 | 2.5-3 | ≥0.4 |
| JXMD-800 | 800*1200 | 1.1 | 2.5-3 | ≥0.4 | |
| JXMD-1000 | 1000*1400 | 1.5 | 3.5-4 | ≥0.4 | |
| JXMD-1200A | 1200*1500 | 1.5 | 3.5-4 | ≥0.4 | |
| JXMD-1200B | 1200*2000 | 2.2 | 4.5-5 | ≥0.4 | |
| JXMD-1500 | 1500*2000 | 3 | 4.5-5 | ≥0.4 |
Advantages
- Very Fine Filtration And High Flow Rates
- Wedge Wire Filter
- Installation In Narrow Rooms
Water separation treatment of industrial waste water in these industries :-
- Paper Mills
- Food Industry
- Chemical Industry
Packaging
1. All the products are packed in seaworthy wooden cases.
2.Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
