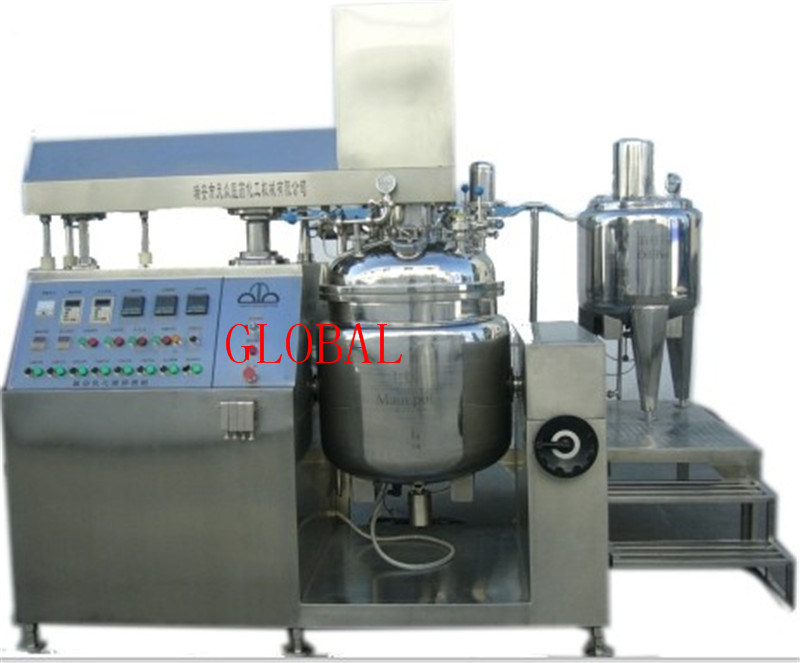

Vacuum mixing emulsifier
Application:
The equipment is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion, shampoo, toothpaste and so on
Structure:
this homogenizer include main pot, water and oil pot, vacuum system, lift system, temperature system, control system and so on
Principle:
First put the raw material which can dissolved into water into water pot, then heat it , and mix it
Second: put the raw material which can dissolved into oil to oil pot, heat it and mix it,
Then suck both of the raw material into main pot, to homogenize the two material by homogenizer
Character:
Control by computer touch-screen, integrated operation, with beautiful generous;
Work continuously large quantity, circulating homogeneous discharging, especially suitable for single products continuous production
Easy operation, perfect homogeneous emulsification
Capacity : 100-2000L
Helical ribbon mixing, internal external circulating homogenization.
Parameter:
Order requirement:
How much capacity do you need?
What way do you heat the machine by steam or electric ?
Do you need automatic one or manual one?
Do you need water and oil pot or not?
What is your raw material?
What is the voltage? Is it 380V 50hz 3phase?
When do you need ?
INSTALL PICTURE:
Application:
The equipment is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion, shampoo, toothpaste and so on
Structure:
this homogenizer include main pot, water and oil pot, vacuum system, lift system, temperature system, control system and so on
Principle:
First put the raw material which can dissolved into water into water pot, then heat it , and mix it
Second: put the raw material which can dissolved into oil to oil pot, heat it and mix it,
Then suck both of the raw material into main pot, to homogenize the two material by homogenizer
Character:
Control by computer touch-screen, integrated operation, with beautiful generous;
Work continuously large quantity, circulating homogeneous discharging, especially suitable for single products continuous production
Easy operation, perfect homogeneous emulsification
Capacity : 100-2000L
Helical ribbon mixing, internal external circulating homogenization.
Parameter:
| Model | Volume | Emulsify | mixer | Outside dimension | |||||
| Kw | r/min | Kw | r/min | L | W | H | M H | ||
| TZZRJ-30 | 30L | 1.5 | 0-3500 | 0.75 | 0-70 | 1500 | 800 | 1500 | 2050 |
| TZZRJ-50 | 50L | 3 | 0-3500 | 0.75 | 0-70 | 2750 | 2100 | 1900 | 2600 |
| TZZRJ-100 | 100L | 3 | 0-3500 | 1.5 | 0-70 | 2800 | 2150 | 2100 | 2800 |
| TZZRJ-150 | 150L | 4 | 0-3500 | 1.5 | 0-70 | 2850 | 2150 | 2150 | 2900 |
| TZZRJ-200 | 200L | 4 | 0-3500 | 1.5 | 0-70 | 3000 | 2200 | 2200 | 3100 |
| TZZRJ-350 | 350L | 5.5 | 0-3500 | 2.2 | 0-70 | 3650 | 2650 | 2550 | 3600 |
| TZZRJ-500 | 500L | 7.5 | 0-3500 | 2.2 | 0-50 | 3800 | 2800 | 2700 | 3950 |
| TZZRJ-750 | 750L | 11 | 0-3500 | 3.7 | 0-50 | 3900 | 3900 | 2900 | 4400 |
| TZZRJ-1000 | 1000L | 11 | 0-3500 | 3.7 | 0-50 | 3900 | 3400 | 3150 | 4550 |
| TZZRJ-2000 | 2000L | 22 | 0-3500 | 7.5 | 0-50 | 4850 | 4300 | 3600 |
Order requirement:
How much capacity do you need?
What way do you heat the machine by steam or electric ?
Do you need automatic one or manual one?
Do you need water and oil pot or not?
What is your raw material?
What is the voltage? Is it 380V 50hz 3phase?
When do you need ?

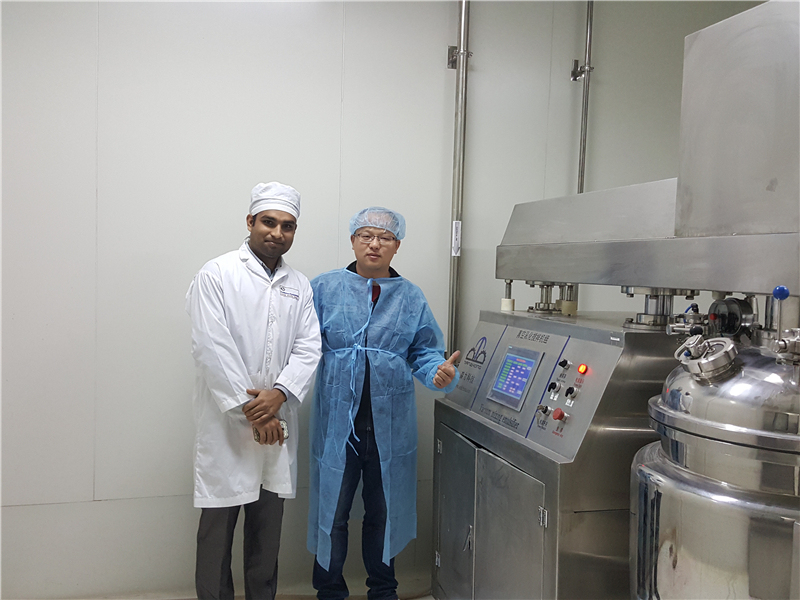

INSTALL PICTURE:
