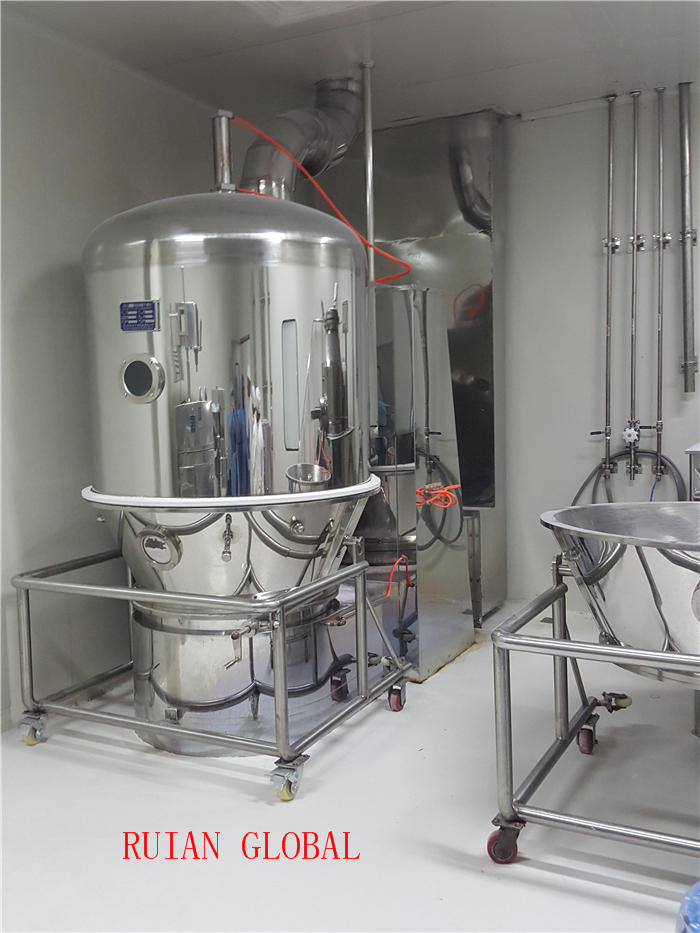

Fluid bed dryer and granulator
Principle

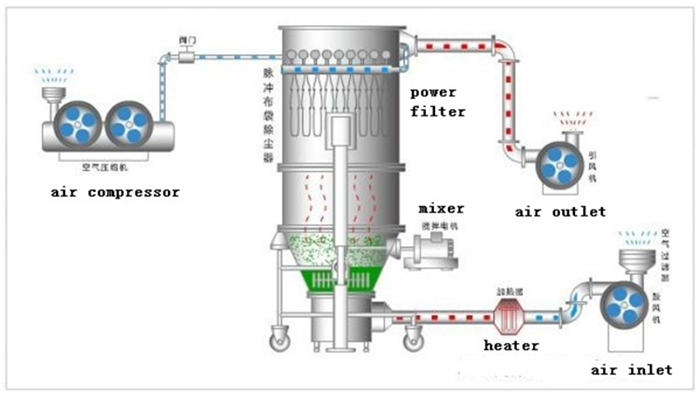

The powder material is in a boiling state in fluid bed, heated and mixed by filtered hot air. Then spray binder into fluid bed, make the dry powder material agglomerate and become granules. The moisture in granule is evaporated by hot air and binder is solidified. Finally, the ideal, uniform and porous finished granule will be got.
Application
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine
Food stuff: cocoa, coffee, milk powder, granule of juice, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Structure:
Feature
Because of powder granulating, the flow property is improved and the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security when explosion.
FL fluid bed tea infusion granulator has no dead corner, easy for feeding, discharging and clean. It could meet the requirement of GMP.
Parameter
item parameter | FL-120 fluid bed dryer | ||
Material vessel | volume | L | 420 |
diameter | MM | 1200 | |
capacity | Kg/time | 60-120 | |
Electric power | 3 phase | 380V/50HZ | |
Steam | pressure | MPa | 0.4-0.6 |
cost | Kg/h | 180 | |
Air compressor | Pressure | MPa | 0.4-0.7 |
cost | Kg/h | 0.8 | |
Fan motor | power | Kw | 18.5 |
Product temperature | ℃ | Automatic control and show | |
Application |
| It suitable for wet granulation dry | |
Recovery rate | % | ≥99% | |
Product humidity | % | Humidity can be 3‰-5% | |
Noise | db | Fan motor can be lower 75 | |
Material | it is stainless steel 304, it is mirror polish inside | ||
Seal way | sealing by cylinder | ||
Air inlet filter | it has primary, middle and high efficiency air filter. | ||
Fan adjust | it adjust the fan capacity | ||
Steam heater | steam heating , the heater is stainless steel 304 | ||
Control way | It is automatic, the inverter adjust the fan capacity, the touch screen is English | ||
Steam angle seat valve | Good brand | ||
GMP | It is according to GMP standard | ||
Product standard | According to JB/T13755-92 standard | ||
Noise | db | Fan motor lower 75 | |

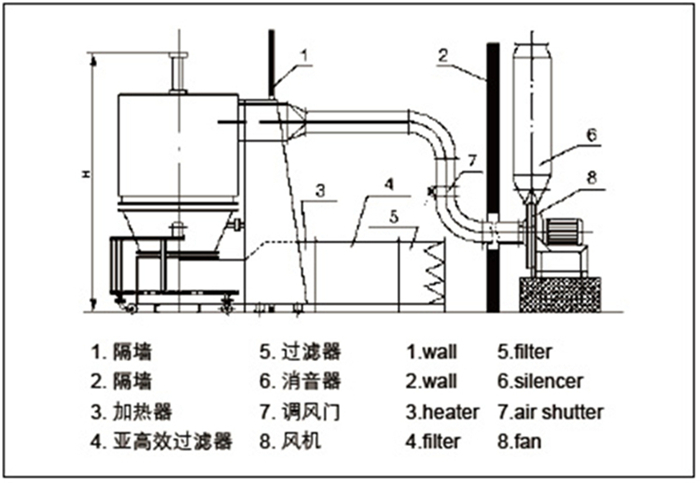

Dimension | Installation dimension |
