Stainless Steel Evaporator for Juice and Milk

Multi effect falling film evaporatorSpecifications 1.Material:SS316L/SS304 2.Steam pressure (Mpa):0.5-0.8 3.Evaporation temperature:45-90 4.Evaporation capaicty: 500~50000L/h Application: It's applicable for dairy products, pharmacy, glucose, s

Technical Feature

  • Shanghai, China
  • 10set /Month
  • L/C, T/T, cash
  • Dryer
  • 380V
  • Different Capacity Different Power
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
GY
Engineers Overseas Available
Yes
Warranty
2 Years
Trademark
Genyond
Transport Package
in Bulk
Specification
big
Origin
China
HS Code
84386000

DETAIL DESCRIPTION

Multi effect falling film evaporator

Specifications



1.Material:SS316L/SS304
2.Steam pressure (Mpa):0.5-0.8
3.Evaporation temperature:45-90
4.Evaporation capaicty: 500~50000L/h



Application:



It's applicable for dairy products, pharmacy, glucose, starch,chemical industry,  xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.

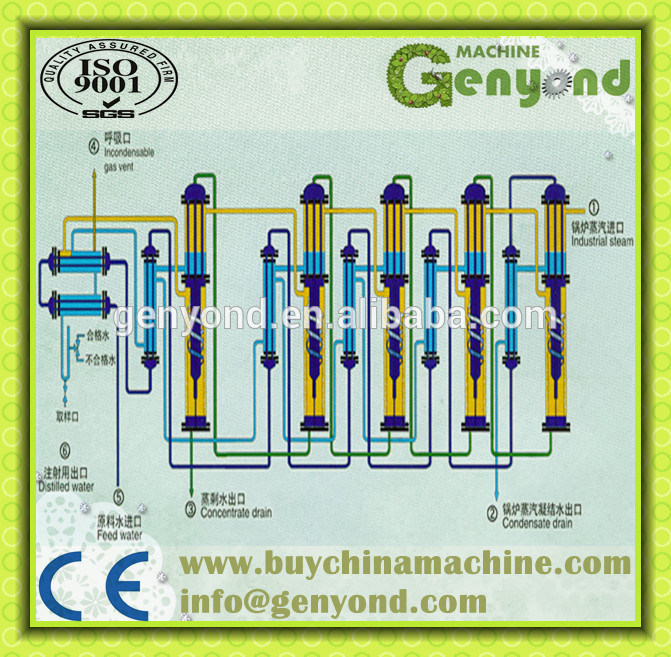

Equipment structure:

It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.

Equipment characteristics:

1. Material: SUS304 or SUS316L;
2.Full closed process, fast and low temperature evaporation;
3.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;

4.Low steam consumption: 1kg steam can evaporte 3.5kg water;

5.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.

6.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale,  short cocentration time, the concentration ratio can reach to 1:5.

7.This equipment  can realize automatic production, intellectual system management, which is in conformity with GMP standard.

8.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.

SPECIFICATIONLJN500LJN1000LJN1500LJN2000LJN3000LJN5000LJN6000LJN8000
Evaporating capacity(kg/h)5001000150020003000500060008000
Steam pressure(Mpa)0.1~0.25
Steam cost(kg/h)1853705557401110185022202960
Recycling water cost(t/h)  510131518253040
Weight(kg)20602480328042004860577064307600
Dimension(mm)7080*
900*
3500
7680*
1000*
4000
8380*
1100*
4600
8890*
1200*
4600
9500*
1300*
4900
10200*
1400*
5300
10800*
1500*
5800
11500*
1600*
5800

 Vacuum degree(MPA)Evaporation temperature(c)
First effect-0.047~-0.05280-85
Second effect-0.069~-0.07270-75
Third effect-0.075~-0.08145-52
