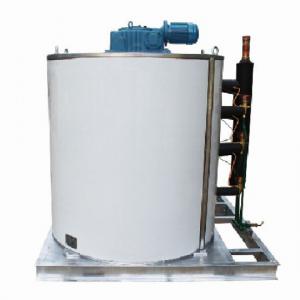

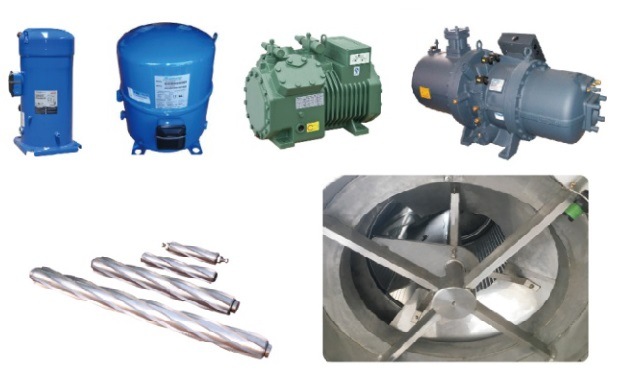

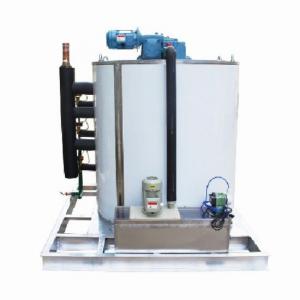

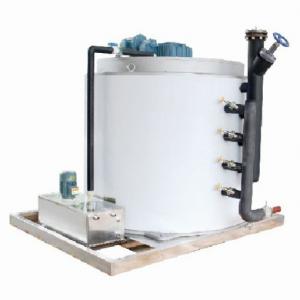

ECOICE 2.5Ton Ice Flake Machine Part Evaporator
Ice flaker evaporator is a key part in ice flake machine . We could produce ice flaker evaporator according to client detailed requirement . Before confirming the Order , pls inform us which type of refrigerant gas you use .
The main character of our ice flaker evaporator
1. Made of special alloy with high heat conduction capacity, and very light .
2.Each flake ice scraper without any jointing . So it is in high solidity .
3. Compact design and high efficiency .
4. The flake ice is glittering , hard and pure .
5. Ice making and droppin very quickly .
Commercial Range Ice Flaker Evaporator Specification :
| Model | ECO-1T | ECO-1.5T | ECO-2T | ECO-2.5T | ECO-3T | ECO-5T |
| Daily Output(Ton/24Hrs) | 1 | 1.5 | 2 | 2.5 | 3 | 5 |
| Necessary Refrigeration Capacity (KW) | 6 | 9.8 | 12 | 15.5 | 18 | 30 |
| Voltage | 380V/50HZ/3P | |||||
| Reductor Power | 0.18 | 0.18 | 0.37 | 0.37 | 0.37 | 0.37 |
| Water Inlet / Drain Pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Dimension (mm) | 790*580*900 | 790*580*1000 | 900*680*1050 | 950*680*1100 | 950*680*1200 | 1180*1050*1420 |
| Weight (kgs) | 160 | 200 | 240 | 260 | 280 | 370 |
