Low Noise Screw Press Sludge Dewatering Belt Filter Press
INTRODUCTION:

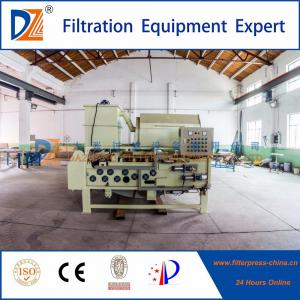

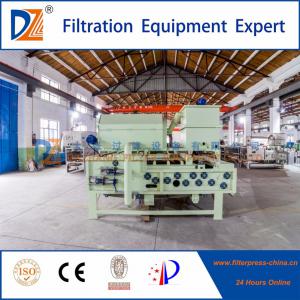

The belt filter (sometimes called a belt press filter, or belt filter press) is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment. The process of filtration is primarily obtained by passing a pair of filtering belts through a system of rollers. The system takes a sludge as a feed, and separates it into a filtrate and a solid cake.
Feature:
1. Fully-automatic& continuous filtering
2. Lowest moisture
3. ISO9001/14001
4. Energy saving
5. Service very good
Our product line:
Automatic Membrane Filter Press
Automatic Chamber/Recessed Filter Press
Hydraulic/ Mechanical/ Manual Filter Press
Stainless Steel/ Cast Iron Filter Press
Cotton Cake Filter Press
Belt Filter Press
Stainless Steel Bag Filters, etc
Filter Plate Size: 380*380mm-2000*2000mm
And OEM is also welcome
DESIGN FEATURES:
1. It adopts advanced technology from Austria and has a good appearance.
2. The structure has a large stiffness, a stedy operation and low noise.
3. It is equipped with advanced concentration preprocessing equipment to flocculate slurry preferably and decrease running cost.
4. Gravity dewatering zone is equipped with advanced distributing device to scatter material uniformly and extend filter cloth's service life.
5. It has a long wedge-shaped dewatering zone and gravity dewatering zone. It can dehydrate material sufficiently and make sure that the material will not overflow.
6. Dewatering rollers are arranged in a scientifica way. Filtrate is respectively discharged from gravity zone, wedge-shaped zone and squeezing zone without disturbing each other. Dewatering roller has larger diameter and better dewatering effect, they endowed belt filter with high treatent capacity, high efficiency and energy saving.
7. It works continuously from feeding to cake discharging. It has high degree in automation. PLC interface can be installed as needed to realize centralized control by computer.
8. Power transmission adopts mechanical or frequency stepless speed regulation, so as to get wide speed range and application.

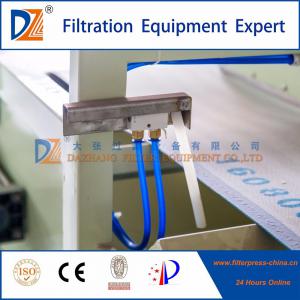

9. It is equipped with reliable backwash device to ensure good dehydration effect.

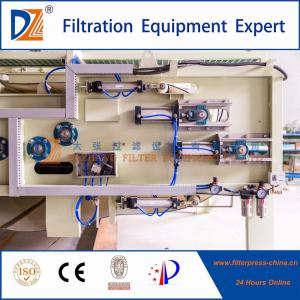

10. It is equipped with pneumatic tensioning and auto deviation adjustment device to ensure safe operation of filter belt.
11. It adopts infrared safety guarding and comprehesive emergency shutdown device to ensure safety operation.
12. Different filtr belt can be selected based on various filtering material, the filter belt is of high precision.

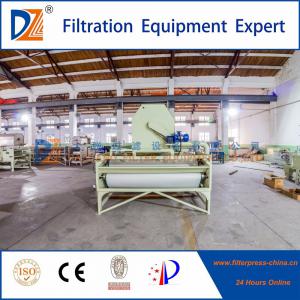

13. According to different concentration, it can chose different thickening system: Drum Thickener or Belt Thickener.
OUR SERVICE:
1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.
2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.
3. We can supply the filtration flow chart according to different material and demands.
4. We can offer the filtration testing free of charge.
5. We could offer training in free.
COMPANY INFORMATION:
Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
DaZhang produce dozens of models (model 320 to 2000) of filter presses with more than 100 specifications. Filtration area of these filter presses ranges from 1M2 to 1,000M2 and filtration pressure ranges from 0.4MPa to 1.6MPa (and the filtration pressure of circular filter press can be 2.0Mpa).
DaZhang has excellent processing and testing equipment. Our major production equipment includes large CNC machining center, mold processing center, professional filter plate CNC processing equipment, large filter plate 4000T press, 1000T press, 500T press, 200T press, vertical lathe, large double housing planer and full-automatic welding equipment and so on.
"Devoted, Elaborate, Rigorous, Harmonious". Customers are our pilots, service is our heart. What customers demand is what we are trying to create, and what makes customers satisfied is what we are pursuing all the time. In many years, staffs in Dazhang continuously create, overstep ourselves and work hard to provide the customers with the high-quality products, creating the brand with product quality and promoting the brand with services. Honor creates success, innovation creates prosperity. On the basis of technique innovation, guided by the enterprise culture and purpose to serve society, uniting as one, staffs in Dazhang are not afraid of hardships to make dedication to top-grade brand and making great efforts to do the biggest contribution to China national industry with all strength.
Quality is our culture and DaZhang will be your best friend forever.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
