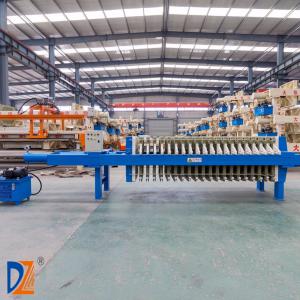

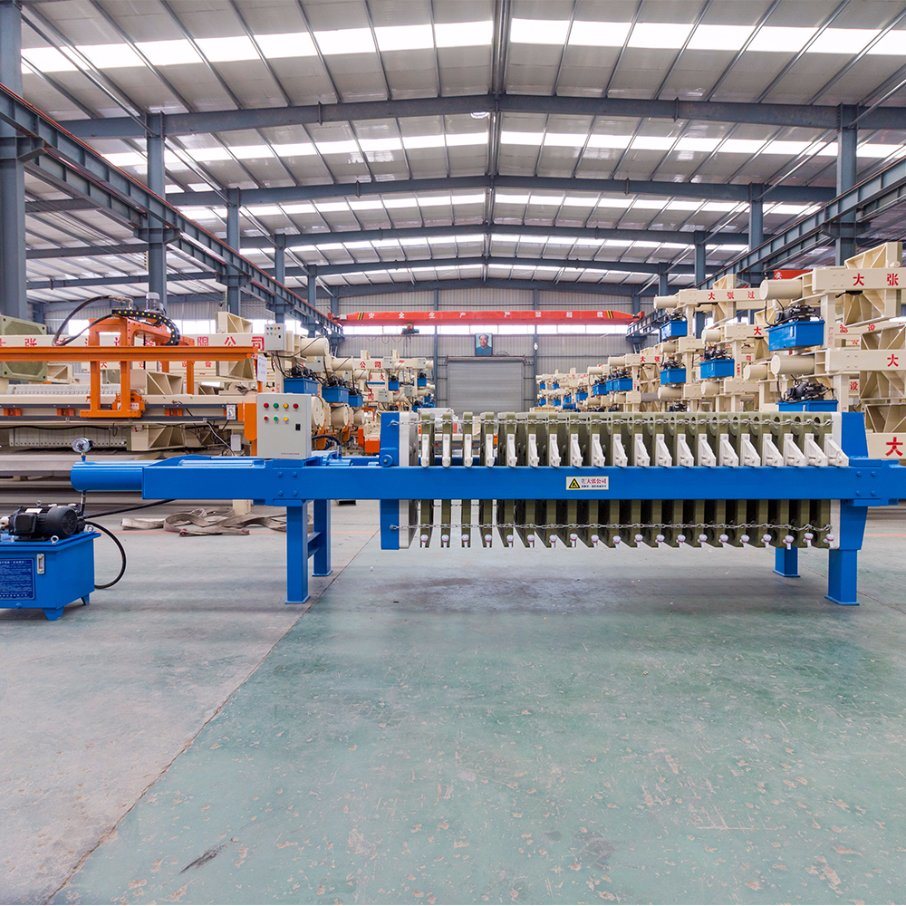

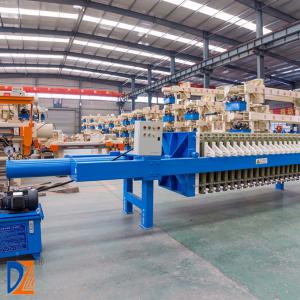

Quick Once Opening Chamber/Recessed Filter Press

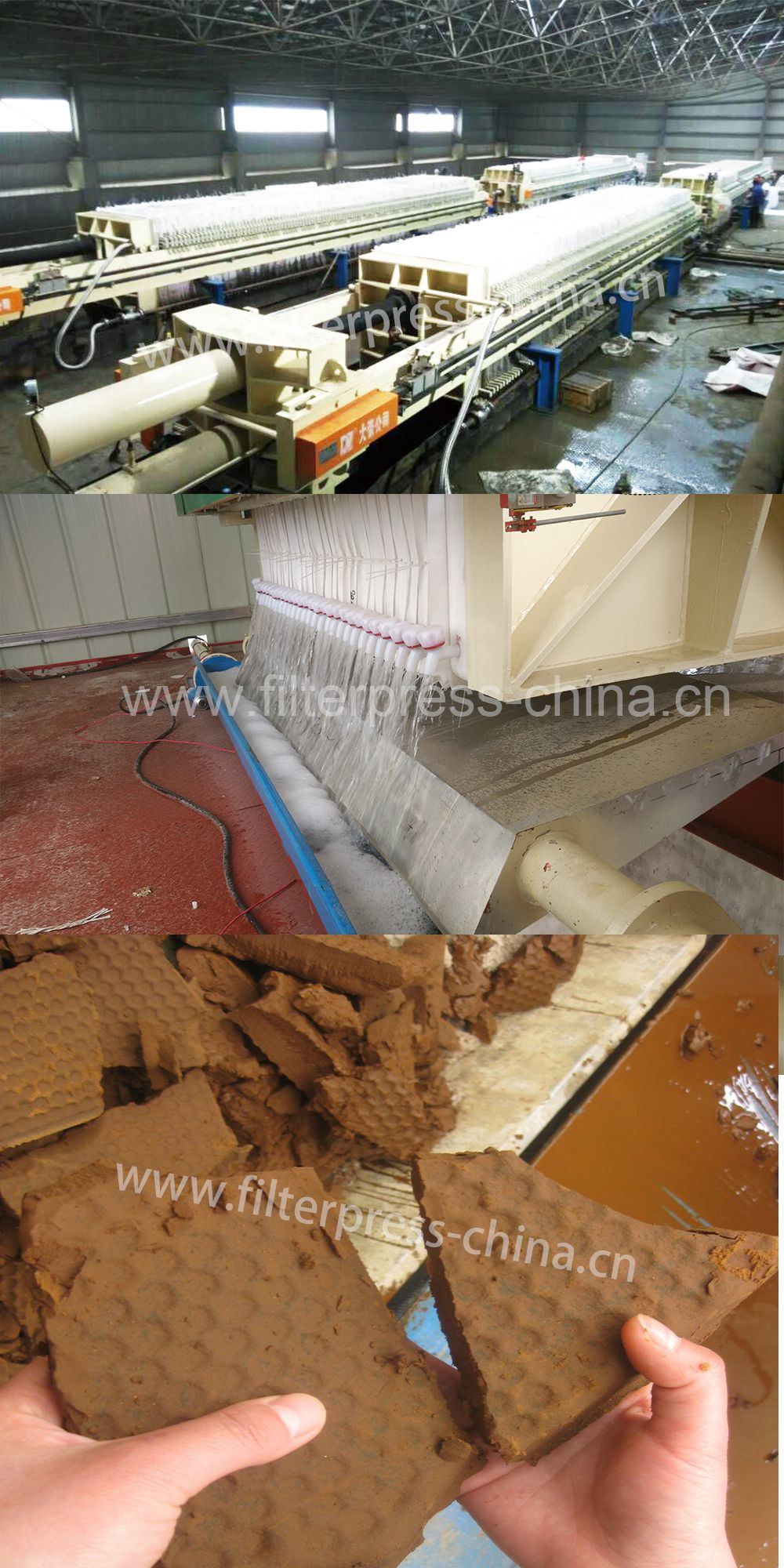

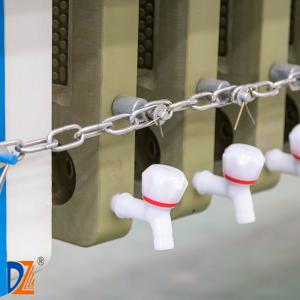

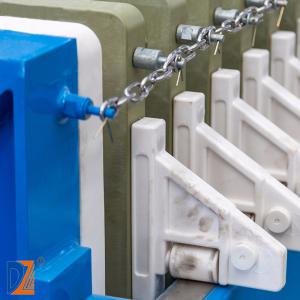

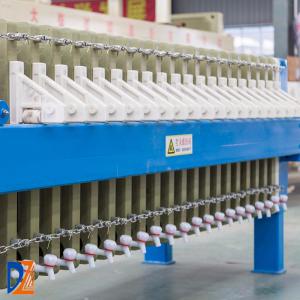

Once open filter press uses longer cylinder and beams. The plates are connected by stainless steel chains. While discharging, all plates will be pulled open to discharge all cakes at one time. Companying with vibration device, it can discharge cakes perfectly.
Advantage:
High degree of automation and efficiency, less wear and tear. Easy operation and maintenance.
But please kindly notice that the plates should not be too much. normally no more than 30 pcs.
Techinical Data:
Applicable field
1) Chemical Industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
2)Food Industry
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and so on
3)Sewage Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
4) Pharmacy Industry
Phytic acid, calcium, chinese traditional medicine, saccharification, organophosphate etc
5) Pottery Clay Industry
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces
6) Metallurgy, Coal Industry
Gold, silver, copper, zinc ore mineral powder, etc
7) Other solid liquid separation industries.
Company Information:
Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
Quality is our culture and DaZhang will be your best friend forever.
Workshop Show:
Packing and Shipping:
Technical Advantage:
1. DaZhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.
2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.
3. DaZhang self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.
4. The main beam of DaZhang filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.
5. The chain cover which is indenpendently developed by DaZhang has the characteristic of high hardness and anti-corrosion.
6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
Contact Information:
Once open filter press uses longer cylinder and beams. The plates are connected by stainless steel chains. While discharging, all plates will be pulled open to discharge all cakes at one time. Companying with vibration device, it can discharge cakes perfectly.
Advantage:
High degree of automation and efficiency, less wear and tear. Easy operation and maintenance.
But please kindly notice that the plates should not be too much. normally no more than 30 pcs.
Techinical Data:
| Model | Filter Area (M2) | Plate Size (MM) | Cake Thickness (MM) | Filter Volume (L) | Plate NO. (PCS) | Weight (KG) | Dimensions L*W*H(MM) | Foundation Size (MM) |
| KXMY4/450 | 4 | 500*500 | 30 | 60 | 9 | 890 | 2230*800*900 | 1550 |
| KXMY5/450 | 5 | 79 | 12 | 920 | 2630*800*900 | 1800 | ||
| KXMY6/630 | 6 | 95 | 7 | 1450 | 2200*1050*1150 | 1490 | ||
| KXMY8/630 | 8 | 119 | 9 | 1500 | 2400*1050*1150 | 1640 | ||
| KXMY10/630 | 10 | 154 | 12 | 1610 | 2540*1050*1150 | 1890 | ||
| KXMY12/630 | 12 | 178 | 14 | 1720 | 3130*1050*1150 | 2140 | ||
| KXMY15/630 | 15 | 226 | 18 | 1880 | 3550*1050*1150 | 2490 | ||
| KXMY10/870 | 10 | 154 | 7 | 1940 | 2720*1270*1300 | 1580 | ||
| KXMY20/870 | 20 | 307 | 15 | 2230 | 3500*1270*1300 | 2430 | ||
| KXMY18/1000 | 18 | 270 | 10 | 1850 | 3470*1400*1400 | 2320 | ||
| KXMY35/1000 | 35 | 525 | 20 | 2540 | 5470*1400*1400 | 3620 | ||
| KXMY28/1250 | 28 | 420 | 10 | 3600 | 4110*1770*1600 | 3220 | ||
| KXMY55/1250 | 55 | 833 | 20 | 5000 | 6510*1770*1600 | 4320 |
Applicable field
1) Chemical Industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
2)Food Industry
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and so on
3)Sewage Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
4) Pharmacy Industry
Phytic acid, calcium, chinese traditional medicine, saccharification, organophosphate etc
5) Pottery Clay Industry
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces
6) Metallurgy, Coal Industry
Gold, silver, copper, zinc ore mineral powder, etc
7) Other solid liquid separation industries.
Company Information:
Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
Quality is our culture and DaZhang will be your best friend forever.
Workshop Show:
Packing and Shipping:
Technical Advantage:
1. DaZhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.
2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.
3. DaZhang self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.
4. The main beam of DaZhang filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.
5. The chain cover which is indenpendently developed by DaZhang has the characteristic of high hardness and anti-corrosion.
6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.
Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.
Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.
Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.
Q: Is on site installation & commissioning available?
A: Yes.
Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
