Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer

air flow grain drying machinery , airflow starch drying systerm,raisin dryerUse renewable biomass fuels to dry paddy, wheat, corn and soya bean etc. lowest drying cost, best grain quality after drying. Features:1. Using Automatic Feeding & Drying &

Technical Feature

  • Qingdao, China
  • 50000sets/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~20

PRIMARY PARAMETERS

Model NO.
5HRH-12
Operational Method
Intermittent
Drying Medium
Inactive Gas
Heating Mode
Convective
Type of Flow
Contra-Flow
Transport Package
Wooden Box
Origin
China
Structure
Rotary Type Drier
Operation Pressure
Atmospheric Dryer
Appearance of Dried Sample
Bulk
Movement Way
Combined
Trademark
you lian
Specification
2200*3800*8750
HS Code
84193100

DETAIL DESCRIPTION

air flow grain drying machinery , airflow starch drying systerm,raisin dryer

Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer
Use renewable biomass fuels to dry paddy, wheat, corn and soya bean etc. lowest drying cost, best grain quality after drying.


Features:
1. Using Automatic Feeding & Drying & Discharging System for increased efficiency for improved productivity and labour efficiency.
2. Using online computerized moisture meter, monitor the paddy moisture content in real-time, it can ensure good quality grain & prevent over-drying
3. Automatic temperature controlling System, equip with grain temperature sensor to control drying temperature exactly. 4. Fast heating speed & High thermal efficiency.
5. Indirect hot air to ensure the grain dries evenly and cleanly.
6. Easy operation and maintenance, no needs for professional technicians.

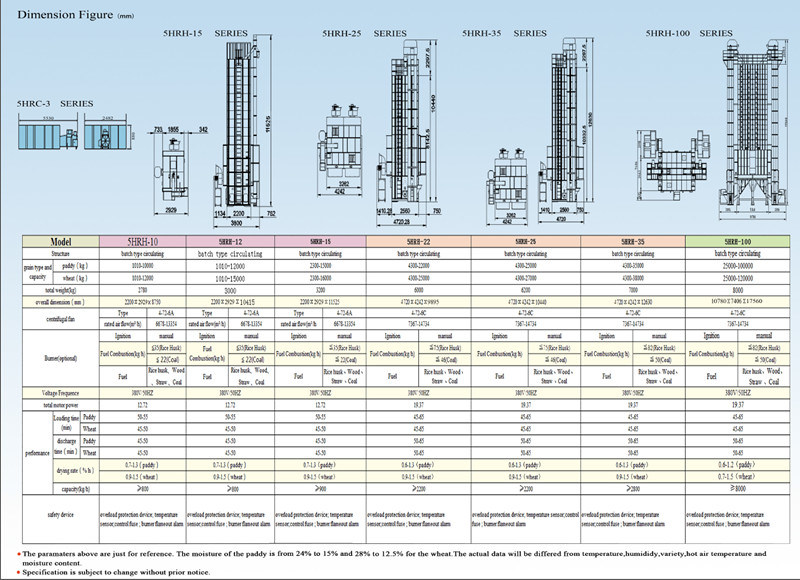

Specification of Paddy Dryer:

ModelItemHG10HG12HG15
Loading capacity (kg)Paddy (kg)
(1 Liter= 560g )		2300 ~ 100002300 ~ 120002300 ~ 15000
Wheat (kg)
(1 Liter= 680g )		2700 ~ 121002700 ~ 145002700 ~ 18200
PerformanceFeed Time
(Min)		Paddy45 ~ 5550 ~ 6070 ~ 80
Wheat40 ~ 5050 ~ 6070 ~ 80
Outlet Time
(Min)		Paddy40 ~ 5045 ~ 5565 ~ 75
Wheat35 ~ 4545 ~ 5565 ~ 75
Drying capacity (kg.)780080009000
Internal volume (m³)18.5323.9627.18
Outside dimension  L*W*H (mm)4828*2492*74364828*2492*87504828*2492*9556
Packing dimension  L*W*H (mm)2100*2080*66022100*2080*79162100*2080*8722
Net weight (kg)270028003000
Power (Kw)     (Excluding Burner)6.86.86.8
Standard DevicesOnline computerized moisture meter,  Grain temperature sensor,  Fault sensor etc
Safety DevicesFull load alarm device, Thermal relay, Temperature controller, Abnormal combustion sensor, Overload protection device, Earth leakage protection device.
Centrifugal
fan		Rated air volume(m³)6677 ~ 13353
Air outlet diameter(mm)600
RPM1450
Drying rate list is for reference only. Actual data will differ by ambient temperature, relative humidity, grain variety, hot air temperature, moisture rate before and after drying.Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer

Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer

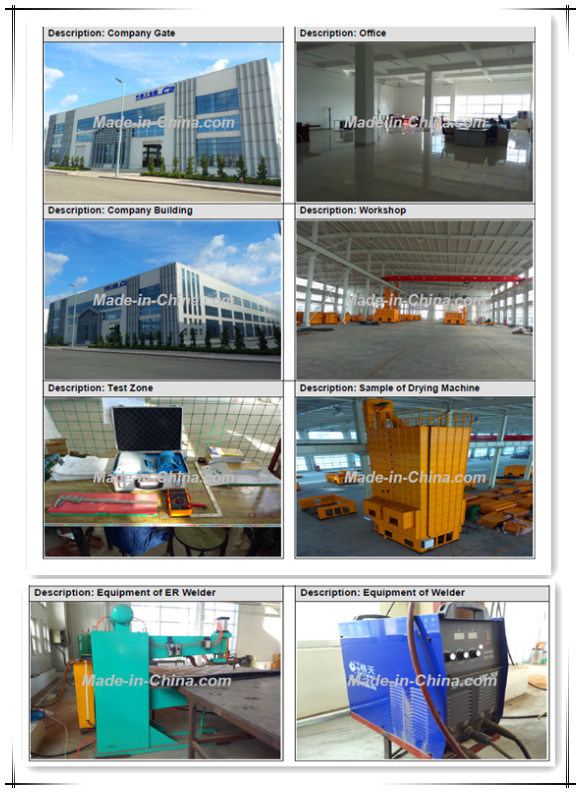

Our factory
Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer
Certifications
Air Flow Grain Drying Machinery, Airflow Starch Drying system, Raisin Dryer
