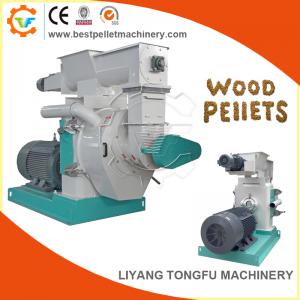

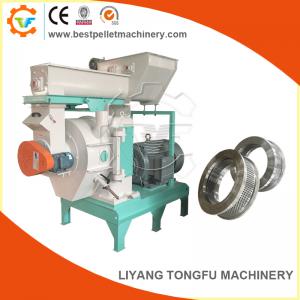

Ring Die Biomass/Wood/Rice Husk/Sawdust Pellet Mill Manufacturers
why should choose us:
1.Experienced
over 10years experience on wood pellet making machine biomass pellet line.
2.Professional
professoinal sales and engineers team design according to customers needs
3.Certification
high quality as all of our wood pellet making machine been approved CE certification.
4.Performance
already suplied over 100 turn-key projects with great satisfaction.
5.Manufacturer
we are manufacturer,customers can get better wood pellet machine price and directly after-sales service.
1.What kinds of material need for biomass pellet mill?
1) biomass pellet mill suitable raw material: The raw material could be branches, wood chips, coconut shell, peanut shell, rice,wheat or maize straw, wood sawdust, wood logs, or any other biomass materials or wood wastes, etc.
2) Application for biomass pellet mill: Ring die wood pellet mill machine is used for making the agro-forestry wastes or boimass materials into solid fuels or wood pellets.
3) Finish product wood pellets advantages: final products wood pellets are with bright future, it has features of efficient, cost-effective, environmental friendly, renewable, broad application.

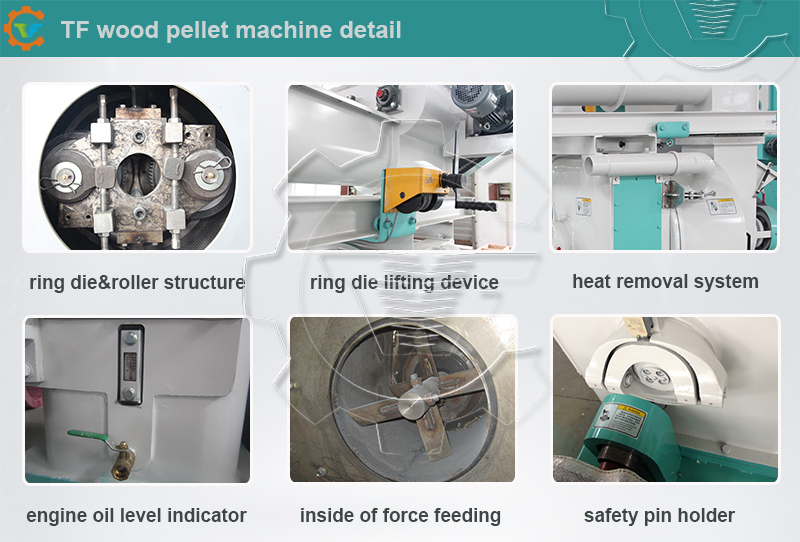

2. Features of biomass pellet mill:
1) Driven by gear, more strong then by belt, and the capacity 10% higher than by belt.
2) This straw pellet machine also matched the safty equipment, one overload, the safty pin will crack, to protecting the machine lifetime.
3) The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.

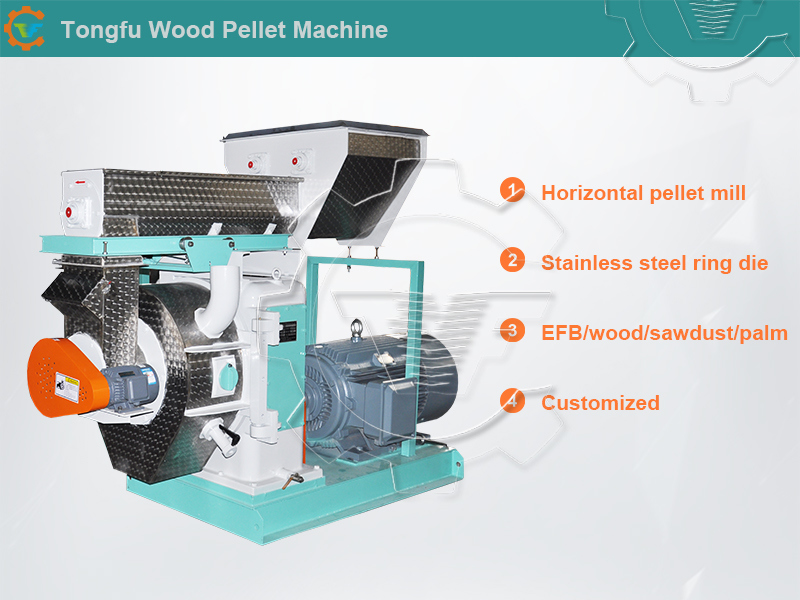

4) One ring die and two rollers system.
5). Permanent magnet device can remove impurities in the pelletizing process.
3. Technical Data of biomass pellet mill:
Spare parts of biomass pellet mill&related machines:
We provide various spare parts of wood pellet machine, including ring die, roller, main shaft, hollow shaft, hoops, etc. we can also produce customized type according to your requirements.
Biomass pellet mill used in Wood Pellet Line:
Ring die wood/sawdust pelletizer is the key equipment in biomass wood pellet producing process. The whole process is including wood chipping(wood chipper)----crushing(hammer mill)---Drying(dryer)---pelletizing(pellet mill)---Cooling&screening(pellet cooler&screener)---Packing(ton bags packing or 10~50kg bags packing for choose). Not every process is necessary for you, We will equip most suitable line according to your actual condition.
Biomass pellet mill Delivery images:
Our biomass pellet mill has been sold to over 20countries all over the world,our
machine with CE certificate,final pellet from our machine strictly follow EN standard.
Tell us your question please, TF Pellet machine team is waiting for your early contact and ready to be your business partner!
Contact: Jennifer
Web: www.bestpelletmachinery.com
why should choose us:
1.Experienced
over 10years experience on wood pellet making machine biomass pellet line.
2.Professional
professoinal sales and engineers team design according to customers needs
3.Certification
high quality as all of our wood pellet making machine been approved CE certification.
4.Performance
already suplied over 100 turn-key projects with great satisfaction.
5.Manufacturer
we are manufacturer,customers can get better wood pellet machine price and directly after-sales service.
1.What kinds of material need for biomass pellet mill?
1) biomass pellet mill suitable raw material: The raw material could be branches, wood chips, coconut shell, peanut shell, rice,wheat or maize straw, wood sawdust, wood logs, or any other biomass materials or wood wastes, etc.
2) Application for biomass pellet mill: Ring die wood pellet mill machine is used for making the agro-forestry wastes or boimass materials into solid fuels or wood pellets.
3) Finish product wood pellets advantages: final products wood pellets are with bright future, it has features of efficient, cost-effective, environmental friendly, renewable, broad application.
2. Features of biomass pellet mill:
1) Driven by gear, more strong then by belt, and the capacity 10% higher than by belt.
2) This straw pellet machine also matched the safty equipment, one overload, the safty pin will crack, to protecting the machine lifetime.
3) The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
4) One ring die and two rollers system.
5). Permanent magnet device can remove impurities in the pelletizing process.
3. Technical Data of biomass pellet mill:

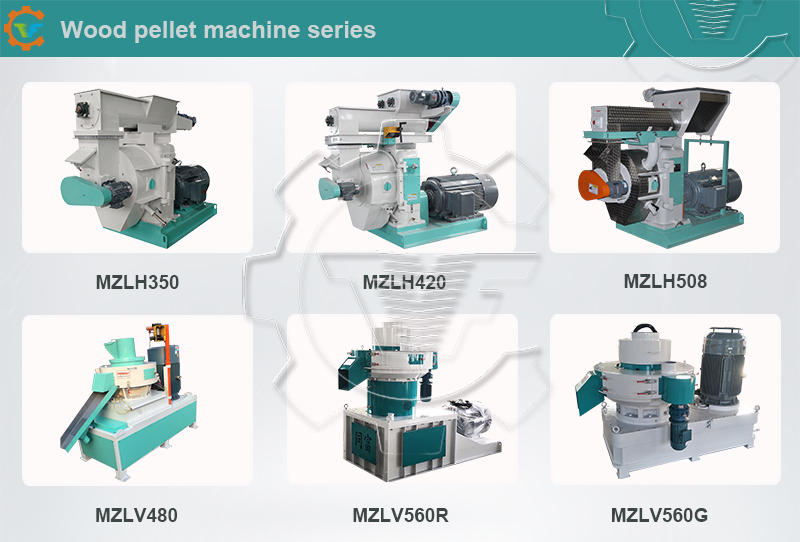

| Type | Model | Power(kw) | Capacity(t/h) | Ring die(mm) | Remark |
| horizontal type | MZLH350 | 45 | 0.4~0.6 | 350 | 1layer ring die |
| MZLH420 | 90/110 | 1~1.5 | 420 | ||
| MZLH508 | 110/132kw | 1.8~2.2 | 508 | ||
| vertical type | MZLV480 | 55 | 0.5~0.6 | 480 | 2 layer ring die, for 560 model, we have 560R(Reducer type), 560G(Gear type). |
| MZLV480 | 75 | 0.9~1 | 480 | ||
| MZLV560 | 90 | 1~1.2 | 560 | ||
| MZLV560 | 110 | 1.5~1.8 | 560 | ||
| MZLV560 | 132 | 2~2.5 | 560 | ||
| MZLV700 | 160kw | 2.5~3 | 700 |
Spare parts of biomass pellet mill&related machines:
We provide various spare parts of wood pellet machine, including ring die, roller, main shaft, hollow shaft, hoops, etc. we can also produce customized type according to your requirements.

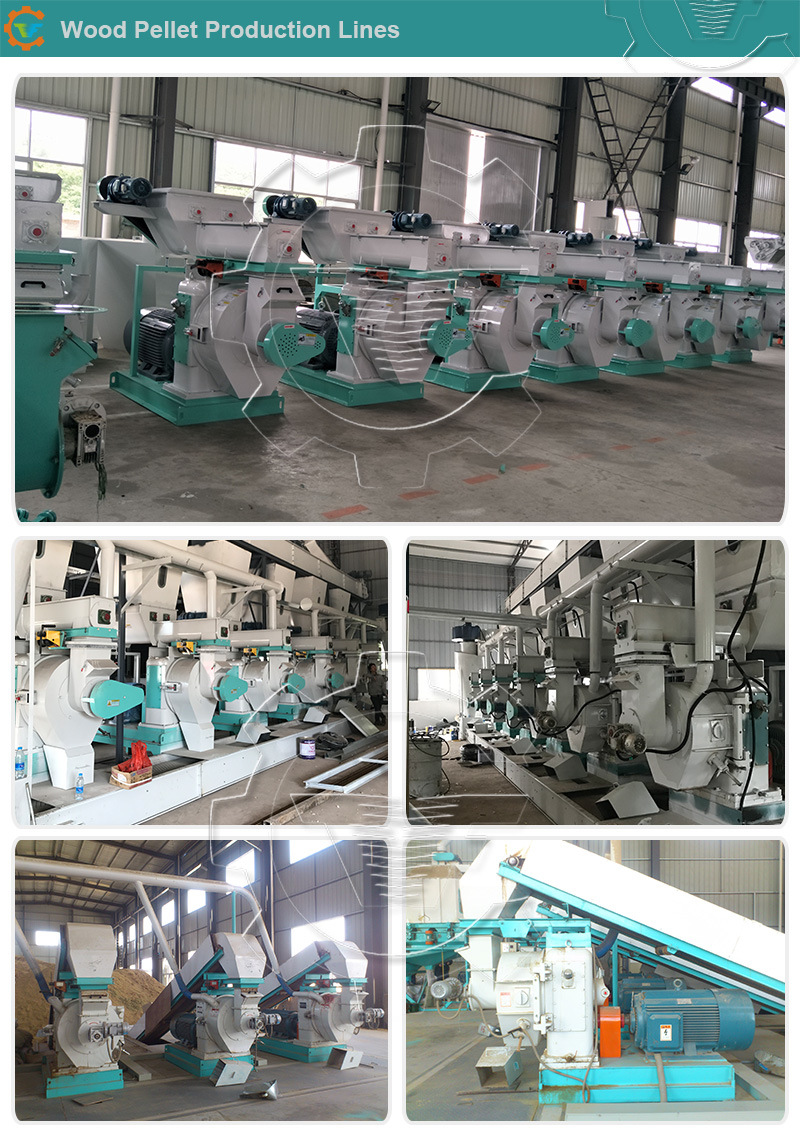

Biomass pellet mill used in Wood Pellet Line:
Ring die wood/sawdust pelletizer is the key equipment in biomass wood pellet producing process. The whole process is including wood chipping(wood chipper)----crushing(hammer mill)---Drying(dryer)---pelletizing(pellet mill)---Cooling&screening(pellet cooler&screener)---Packing(ton bags packing or 10~50kg bags packing for choose). Not every process is necessary for you, We will equip most suitable line according to your actual condition.

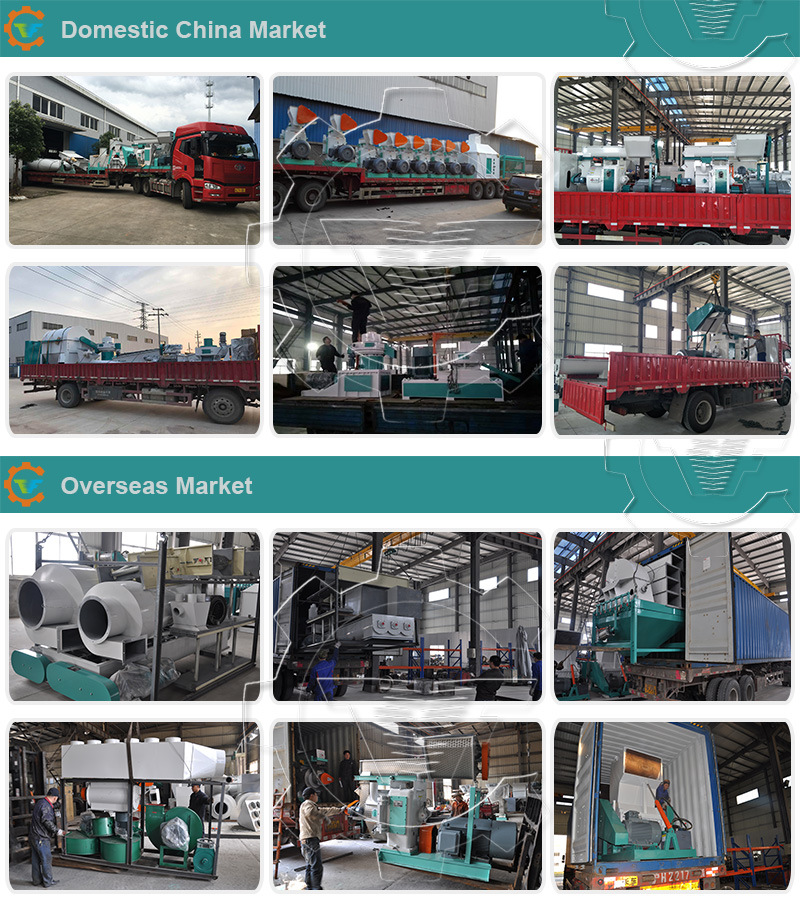

Biomass pellet mill Delivery images:
Our biomass pellet mill has been sold to over 20countries all over the world,our
machine with CE certificate,final pellet from our machine strictly follow EN standard.
Tell us your question please, TF Pellet machine team is waiting for your early contact and ready to be your business partner!
Contact: Jennifer
Web: www.bestpelletmachinery.com
