New Multifunctional Corn/Rice Hammer Mill (SFSP Series)
Rice hull crusher, here means Hammer Mill machine for Paddy Hull or rice husk, is widely used in the agriculture field. This product breaks up materials, like rice hull, paddy straw, peanut skin, etc. through the collisions of the fast-rotating ram and materials. All grain and other materials are crushed into powder at once, leaving no residue. It has the features of compact structure, convenient and reliable operation, easy installation, fine performance, etc. It specialized be applicable to Africa market.
SFSP series hammer mill is mainly used to crush staff, such as corn, cereal and husk, etc. This series hammer mill not only can crush the rice hull and paddy husk, straw, but also can grind some kinds of grain crops like crop stalks, straw, hay, etc. It can be widely used in the professions grain, feed and chemical industry, such as animal feed factory, organic fertilizer factory. It is also applicable to grind raw materials of various granular feed such as corn, sorghum, wheat, legume, chaff, cakes and other materials.
SFSP series hammer miller adopt the welded-steel plate construction, the motor and rotor of miller are assembled on the same base frame, and adopt the pin coupling with elastic sleeves for direct drive, and the rotor can be operated forward and reverse through dynamic balancing test. The feed port is on the top of Miller, which can be matched with various types of feeding devices, and the hammers are symmetric offset spread. The design of material flow and air flow of grinding chamber of the drip type miller is even reasonable, and the production benefit and performance are better.
The structure of SFSP series rice hull crusher is reasonable, safe and reliable. They come with features of small vibration, high crushing productivity, stable performance, reliable quality, safety and easy to operate and convenience for maintenance.
1. Product description
SFSP series water-drop type high efficiency hammer mill is the most advanced in China at present mainly used for milling grainy materials including corn, grist and chaff, which is featured by favorable adaptability, high efficiency, stability, safety, easy operation and maintenance. It is the ideal product for such industries as food, feedstuff and chemical engineering.
2. Technical parameters
3. Features
1. SFSP series water-drop type has high efficiency;
2. It is the most advanced in China at present mainly used for milling grainy materials including corn, grist and chaff;
3. It is featured by favorable adaptability, high efficiency, stability, safety, easy operation and maintenance;
4. It is the ideal product for such industries as food, feedstuff and chemical engineering.
4 Photos
5. Contact us
Ms. Danni Feng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, New High-tech Development Zone, Wuhan city, Hubei Province, P. R. China.
Web: www. chinaricemill.com
Tel: +86 27 67848665, +86 18202720898
Rice hull crusher, here means Hammer Mill machine for Paddy Hull or rice husk, is widely used in the agriculture field. This product breaks up materials, like rice hull, paddy straw, peanut skin, etc. through the collisions of the fast-rotating ram and materials. All grain and other materials are crushed into powder at once, leaving no residue. It has the features of compact structure, convenient and reliable operation, easy installation, fine performance, etc. It specialized be applicable to Africa market.
SFSP series hammer mill is mainly used to crush staff, such as corn, cereal and husk, etc. This series hammer mill not only can crush the rice hull and paddy husk, straw, but also can grind some kinds of grain crops like crop stalks, straw, hay, etc. It can be widely used in the professions grain, feed and chemical industry, such as animal feed factory, organic fertilizer factory. It is also applicable to grind raw materials of various granular feed such as corn, sorghum, wheat, legume, chaff, cakes and other materials.
SFSP series hammer miller adopt the welded-steel plate construction, the motor and rotor of miller are assembled on the same base frame, and adopt the pin coupling with elastic sleeves for direct drive, and the rotor can be operated forward and reverse through dynamic balancing test. The feed port is on the top of Miller, which can be matched with various types of feeding devices, and the hammers are symmetric offset spread. The design of material flow and air flow of grinding chamber of the drip type miller is even reasonable, and the production benefit and performance are better.
The structure of SFSP series rice hull crusher is reasonable, safe and reliable. They come with features of small vibration, high crushing productivity, stable performance, reliable quality, safety and easy to operate and convenience for maintenance.
1. Product description
SFSP series water-drop type high efficiency hammer mill is the most advanced in China at present mainly used for milling grainy materials including corn, grist and chaff, which is featured by favorable adaptability, high efficiency, stability, safety, easy operation and maintenance. It is the ideal product for such industries as food, feedstuff and chemical engineering.
2. Technical parameters
| Model | SFSP56*40 | SFSP60*45 | SFSP60*60 | SFSP60*70 | SFSP60*90 |
| Capacity (t/h) | 0.5-1.25 | 0.8-1.5 | 1.0-1.8 | 1.2-2.0 | 1.5-2.2 |
| Power (kw) | 37 | 45 | 55-75 | 75-90 | 90-110 |
| Weight (kg) | 750 | 850 | 950 | 1050 | 1150 |
| Overall dimensions (mm) | 1850x1050x1080 | 1950x1050x1080 | 2050x1150x1080 | 2150x1150x1080 | 2250x1200x1080 |
| Main Shaft Rotation(rpm) | 2960 | 2960 | 2960 | 2960 | 2960 |
| Model | SFSP56*40 | SFSP60*45 | SFSP60*60 | |
| Rotor Dia.(mm) | 560 | 600 | 600 | |
| Crushing chamber Width(mm) | 400 | 450 | 600 | |
| Main Shaft Rotation(r/min) | 2950 | 2970 | 2970 | |
| Hammer Linear Speed(m/s) | 86 | 93 | 93 | |
| Hammer Numbers(pcs) | A | 4*6=24 | 4*10=40 | 4*12=48 |
| B | 4*8=32 | 4*12=48 | 4*18=72 | |
| Matched Power(kw) | 37 | 45 | 55 |
3. Features
1. SFSP series water-drop type has high efficiency;
2. It is the most advanced in China at present mainly used for milling grainy materials including corn, grist and chaff;
3. It is featured by favorable adaptability, high efficiency, stability, safety, easy operation and maintenance;
4. It is the ideal product for such industries as food, feedstuff and chemical engineering.

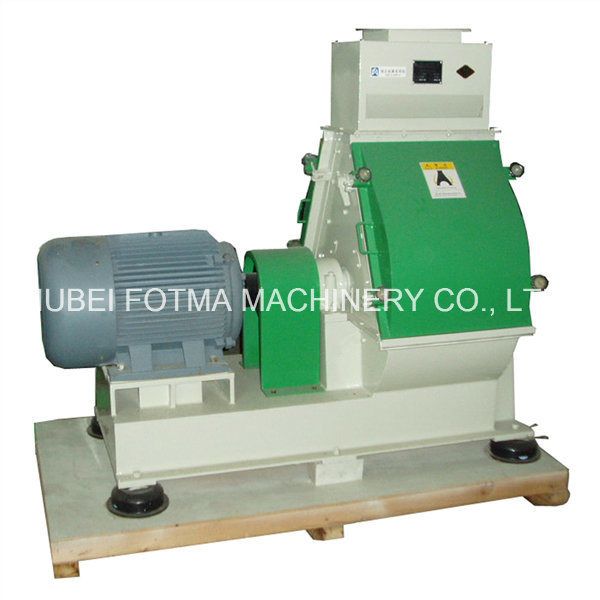

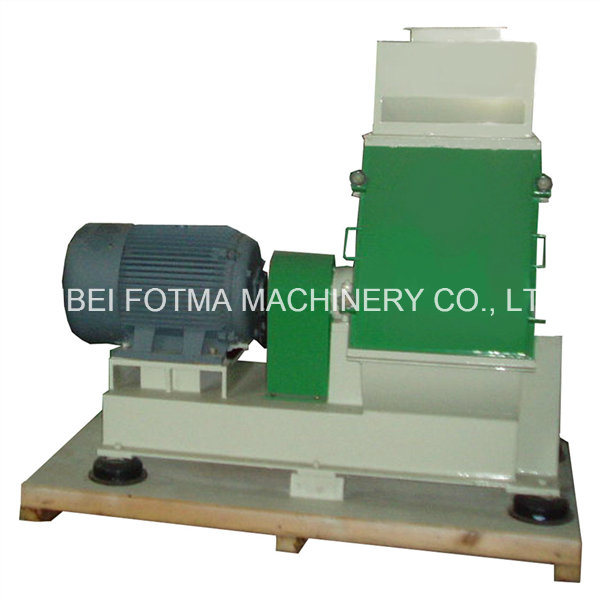

4 Photos
