Ce Approved Electric Fruit Lemon Orange Juice Extractor
Machine introductionThis machine is applicable to be juicing various fruits,such as tomato,pineapple,apple and orange etc.It has the following features:
(1).screw propelling and extruding;
(2).Slag discharge part improved,suitable for pressing high-fiber materials such as leaf vegetables etc;
(3).Automatically finish the processes of juicing and slagging for fruits and vegetables,such as berries and pome fruits etc.
Main structure principle
The main component is to nuclear pulp, juice, leather through a pipe into the spiral juice machine, by screw, screw diameter along the bottom slag is expected to export direction gradually increase and pitch gradually reduce, when the material being spiral propulsion for spiral cavity volume shrinking, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction. Raw material add to the feed hopper, under the propulsion of spiral compression, the squeezing the juice through a filter at the bottom of the gravy, while the waste and the conical part of the surge tank by screw formed between the annular gap discharge, pressure regulating head along the axial movement of adjustable gap size. From the slag trough of equipment used in clockwise (to the feed hopper depending on the rotation handwheel bearing seat, regulating the head to the left, the gap is narrowing, conversely gap bigger.) Change the size gap, changing the resistance of slag discharge, can change the rate of slag, but if the gap is too small, the strong pressure, part of slag particles with juice by filter out.
Technical parameters
| Model | LZ-0.5 | LZ-1.5 |
| Raw material throughput | 500Kg/h | 1500Kg/h |
| Screw diameter | Φ87.5mm | Φ175mm |
| Screen aperture | 0.6mm | 0.6mm |
| Power | 1.5Kw | 4Kw |
| Spindle speed | 400rpm | |
| Wight | ~100Kg | ~240Kg |
| Dimension | 1100×265×920mm | 1560×450×1340mm |

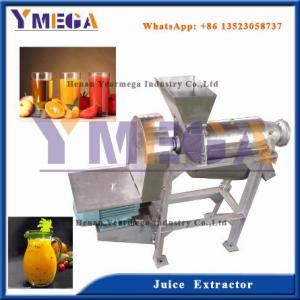

Machine Photos
Packing and shipping
The Juice Extractor for sale would be covered by plastic, and then packed in standard ply wooden package for exporting.
Our Services
| 1 | We provide 1 year guarantee with life-time service. |
| 2 | We provide English manual and video for operation |
| 3 | If required, we could send technicians for installation and commissioning, training. |
| 4 | Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours. If big problem, we can send technician to customer's local place. |
