It, as the main body of the drying section, is associated with stove, pipeline, draught fan, loader and other accessory equipment. During the process, raw material under the work of fan will scatter sufficiently within the drum to contact with hot blast air and then steamed moisture following the air thrust force will be ventilated.

1.Drum dryer models can be chosen from single drum, bi-layer drum, triple layer one.
2.Highly mechanized, high throughput and continuous running.
3.Elegant structure design (low resistance against flow through the pipeine), simple operation, low maintenance costs and decreased power consumption.
4.A wide range of application
5.Uniform production and stable performance and high thermal efficiency (generally up to 80% -90%)
In the process of drying, stability of the roller and uniformity of the airflow will enjoy a full play, with the drum and connected pipeline conveying materials effectively. Thanks to the above principle, drying intensity is increased yet labor investment reduced.

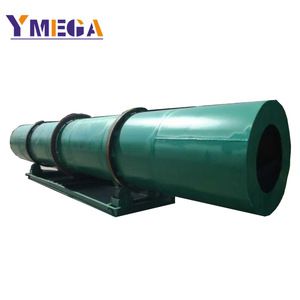

Rotary Drum Dryer:

Drying Machine for Wood Pellet Plant
The wood powder produced by wood crusher and hammer mill is with high moisture, which can effect the quality of pellets. So before pelletizing, a drying machine is needed to make the moisture reaches about 15%. According to your production scale, we recommend two types of drying machines for you: rotary drum dryer and sawdust pipe dryer.

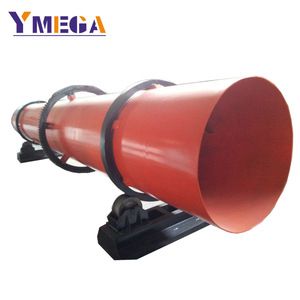

rotary drum dryer structure Rotary Drum Dryer Introduction
Rotary drum dryer is one of the traditional wood drying equipment which is of reliable operation, high flexibility and large processing capacity. It is widely used in metallurgy, chemical and other large scale industries.

Rotary Drum Dryer Wide Application:

1. Agriculture, feed and fertilizer industry, such as straw, grass, leaves, wood chips, fish feed,organic fertilizer, etc.
2. Powder or granular materials of special drying requirements. Such as a variety of crystals, magnetic powder, lime and so on.
3. Chemical industry, metallurgical and other industries, such as ores, coal, metal powder, clay.

Rotary Drum Dryer Characteristics:
1. Large handling capacity and low energy cost & investment.
2. High drying speed. The dryer is of good thermostability, using high temperature and hot air to dry the material quickly.
3. High overloading capacity. Even though there is a little increase in the handing capacity, it does not need to replace equipment.
4. The special design of gear wheel structure can greatly reduce the horizontal force produced by the oblique rotary drum.

 The small size portable Rotary Drum Dryer for sale would be covered by plastic, and then packed in standard ply wooden package for exporting.
