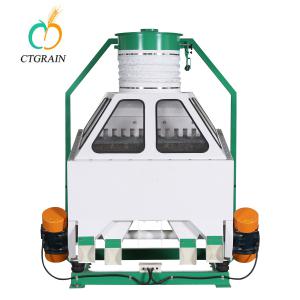

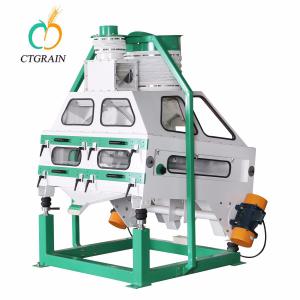

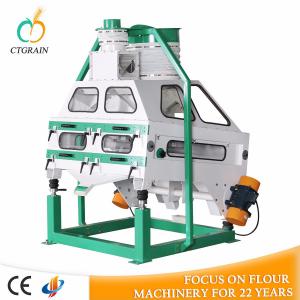

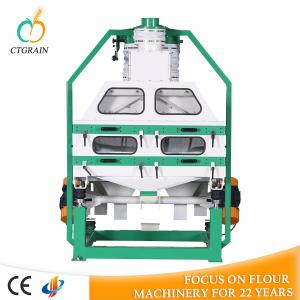

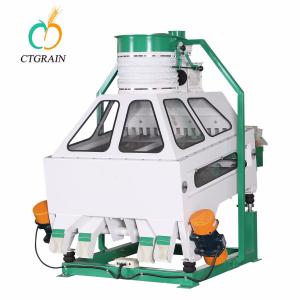

Coffee Corn Rice Wheat Seed Gravity Grading De-stoner Machine/Stone Remover
The machine for grain cleaning
* To remove stone
* To classify grain
* To remove light impurities and so on
Working principle
The material falls onto the guide plate from inlet and cover evenly on the entire width of the upper sieve due to the vibratory action of the machine. The combined action of the vibration and air flow make the material on the upper sieve classified automatically according to its specific gravity and granular size. Light material become overtails of the upper sieve and discharged out of the machine from the machine tail. More light material like straw and dust is taken away from aspiration outlet. Heavy material together with stones and sand falls onto the lower sieve through the upper sieve. As the action of the machine vibration, air flow and friction, the heavy material moves towards the tail of the machine and discharged from the tail outlet while sand and stones move towards the head of the machine and discharged from the stone outlet. Through the observation windows, operator can directly observe the effect of classifying and de-stoning.
Features
1) Reliable and excellent classifying and de-stoning.
2) Negative pressure, no dust sprays out.
3) High capacity.
4) Easy operation and maintenance.
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
* To remove stone
* To classify grain
* To remove light impurities and so on
Working principle
The material falls onto the guide plate from inlet and cover evenly on the entire width of the upper sieve due to the vibratory action of the machine. The combined action of the vibration and air flow make the material on the upper sieve classified automatically according to its specific gravity and granular size. Light material become overtails of the upper sieve and discharged out of the machine from the machine tail. More light material like straw and dust is taken away from aspiration outlet. Heavy material together with stones and sand falls onto the lower sieve through the upper sieve. As the action of the machine vibration, air flow and friction, the heavy material moves towards the tail of the machine and discharged from the tail outlet while sand and stones move towards the head of the machine and discharged from the stone outlet. Through the observation windows, operator can directly observe the effect of classifying and de-stoning.
Features
1) Reliable and excellent classifying and de-stoning.
2) Negative pressure, no dust sprays out.
3) High capacity.
4) Easy operation and maintenance.
| TypeParameter | Shape Size | Power | Capacity | Aspiration Volume | Sieve Width | Weight |
| L x W x H (mm) | KW | t/h | m3/h | cm | kg | |
| TQSF60 | 1450x876 x1800 | 2x0.25 | 3-5 | 4500 | 60 | 280 |
| TQSF80 | 1450x1046x1800 | 2x0.25 | 5-7 | 6000 | 80 | 340 |
| TQSF100 | 1500x1246x1900 | 2x0.25 | 7-9 | 8000 | 100 | 400 |
| TQSF125 | 1470x1496x1900 | 2x0.25 | 9-11 | 10200 | 125 | 500 |
| TQSF150 | 1580x1746x1900 | 2x0.25 | 11-14 | 12000 | 150 | 600 |
| TQSF175 | 1470x1990x1900 | 2x0.25 | 14-18 | 15000 | 175 | 750 |
| TQSF200 | 1470x2292x1900 | 2x0.25 | 16-20 | 17000 | 200 | 1000 |
| TQSF250 | 1470x2835x1900 | 2x0.25 | 20-22 | 20400 | 250 | 1050 |
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
