Chinatown Grain Machinery Co., Ltd. provides complete machinery and service for food production and grain processing industries, such as wheat flour mill, fodder factory, and Advanced Technology flour mill machine. Thus far, our products include conveying equipment, cleaning equipment, flour milling equipment, and Advanced Technology flour mill machine. They have been recognized by a number of customers both at home and abroad.
Since our founding, we have been focusing on the grain processing techniques and machinery development. We have accumulated a great deal of experience in both fields.
We have supplied a range of machines and technical solutions for the whole grain, edible oil and food processing industry chain, such as collecting, storing, cleaning, grading, sieving, grinding, mixing, production, shape forming, and packing.

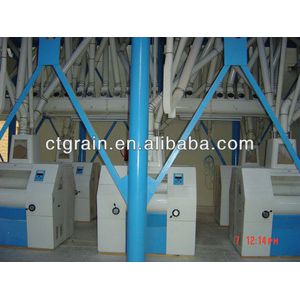

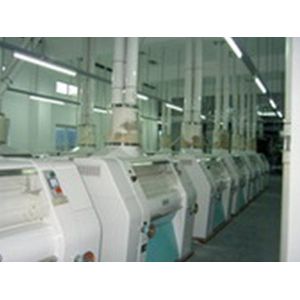

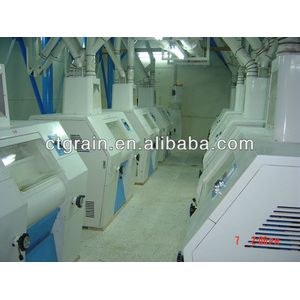

The Large Capacity Corn/Maize Degerminator are designed and installed together with the steel structure support. The main support structure is made of three levels: the Advanced Technology flour mill machine are located on the ground floor, the sifters are installed on the first floor, the cyclones and pneumatic pipes are on the second floor.
The materials from Large Capacity Corn/Maize Degerminator are lifted by pneumatic transferring system. Enclosed pipes are used for ventilation and de-dusting. Workshop height is relatively low to reduce customers’ investment. The milling technology can be adjusted to satisfy customers’ different requirements. Optional PLC control system can realize central control with high degree of automation and make operation easier and flexible. Enclosed ventilation can avoid dust spill to keep high sanitary working condition. The whole mill can be compactly installed in a warehouse and designs can be customized as per different requirements.
Compact wheat flour mill- 60, 80, 100, 120, 150TPD
Product Introductions:
The machines of this series of our Large Capacity Corn/Maize Degerminator are designed and installed together with the steel structure support. The main support structure is made of three levels: the Advanced Technology flour mill machine are located on the ground floor; the sifters are installed on the first floor and the cyclones and pneumatic pipes are on the second floor. The materials from 80T/24H wheat flour making machine are lifting by a pneumatic transferring system. The whole mill can be installed in a warehouse and individual designs can meet customer different requirements.
Features:
- The capacity is various from 60MT to 150MT wheat per day, flexible for customer’s choice.
- Compact design saves area and civil building costs less.
- Low investment and low power consumption which means running costs less.
- Elaborate machine combined with excellent design results in high quality flour and high yield.
Application:
- Widely applied in small and middle wheat mills or farm in developing country. - Especially suitable for the investor who is a freshman in wheat processing.
- Economical choice.
Note
- The detailed cleaning and milling flow sheets could be designed following customers’ special requirement and the plant location.
- The wheat silos and flour and bran warehouse are excluded in the above.
- For more information or other model, please contact us.
| Model | Capacity (t/24h) | Roller Mill Model | Sifter Model | Cleaning Flow Sheet | Mill Flow Sheet | Space LxWxH(m) |
| CTWM-40 | 40 | manual | twin sifter | 3-sifting 2-scrouring 2-destoning 1-washing | 4-reaking 5-reducing 1T | 30x8x11 |
| CTWM-60 | 60 | manual | twin sifter | 35x8x11 | ||
| CTWM-80 | 80 | pneumatic | plansifter | 4-breaking 6-reducing 1S,1T,2P | 38x10x11 | |
| CTWM-100 | 100 | pneumatic | plansifter | 3-sifting 2-scrouring 2-destoning 1-dampening | 42x10x11 | |
| CTWM-120 | 120 | pneumatic | plansifter | 5-breaking 8-reducing 1S,1T,4P | 46x10x11 | |
| CTWM-150 | 150 | pneumatic | plansifter | 50x10x11 |
CLEANING SECTION:
MILLING SECTION:
BLENDING & PACKING:
CONVEYING EQUIPMENT:
SPARE PARTS:
