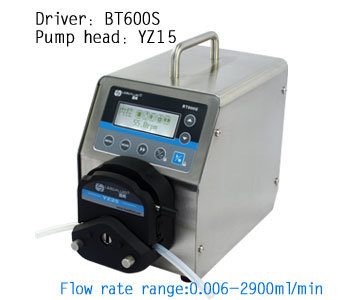

BT600S Basic Speed -Variable Peristaltic Pump

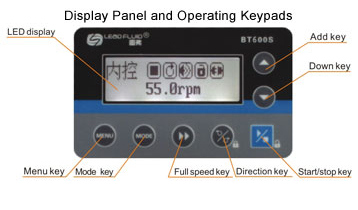

BT600S Basic Speed -Variable Peristaltic Pump flow range is 0.006-2900ml/min. Rotate speed is 0.1-350rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC .
» Technical parameters
• Flow range :0.006-2900ml/min
• Flow accuracy:<0.5%
• Speed range:0.1-600rpm.
• Speed resolution: 0.1-100 rpm, the speed resolution is 0.1 rpm.
100-600rpm, the speed resolution is 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard),
AC 110V±10%,50Hz/60Hz(optional)
• Power consumption:<60W
• External control:Input electrical level 5V, 1 2V (standard), 24V(optional).
External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface:RS485 communication interface,
support the MODBUS protocol.
• Ambient temperature:0 ~ 40ºC
• Relative humidity:<80%
• IP grade:IP31
• Dimensions(LxWxH)223mmx150mmx195mm
• Weight:5.2KG

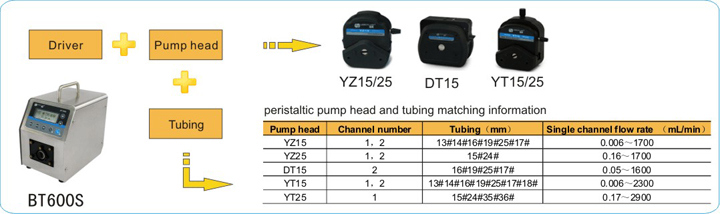

» BT600S Applicable pump head and tubing, flow parameters
| Drive type | Pump head | Channel number | Tubing(mm) | One channel flow rate (ml/min) |
| BT600S (304SS) | YZ15 | 1 | 13#14#16#19#25#17# | 0.006~1700 |
| YZ25 | 1 | 15#24# | 0.16~1700 | |
| 2×YZ15 | 2 | 13#14#16#19#25#17# | 0.006~1700 | |
| 2×YZ15 | 2 | 13#14#16#19#25#17# | 0.16~1700 | |
| DT15-24 | 2 | 19#16#25#17# | 0.05~1600 | |
| YT15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 | |
| YT25 | 1 | 15#24#35#36# | 0.17~2900 | |
| 2×YT15 | 2 | 13#14#16#19#25#17#18# | 0.006~2300 |
