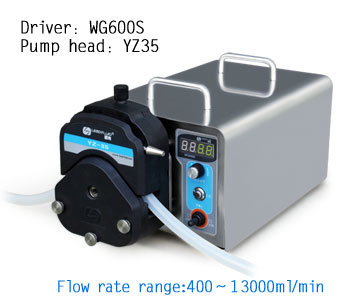

WG600S Basic Speed -Variable Industrial Peristaltic Dosing Pump

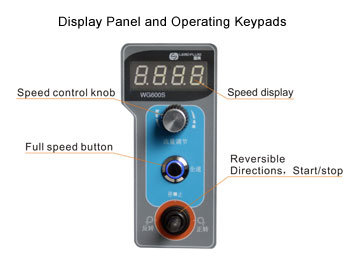

The pump is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic functions:such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
» Technical parameters
• One channel flow range :0.04-13L/min
• Flow accuracy:<3%
• Speed range:30-600rpm.
• Speed resolution: 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard),
• Power consumption:<300W
• External control:Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface:RS485 communication interface,
support the MODBUS protocol.
• Ambient temperature:0 ~ 40ºC
• Relative humidity:<80%
• IP grade:IP31
• Dimensions(LxWxH)340mmx235mmx175mm
• Weight:13KG
sio
n metering peristaltic pumpDelivery time: within 3-10 days after payment.
Packing: 1 set/carton.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.
Payment: T/T, Paypal, Credit card, Western union.
