Why buy from us?
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
What can this machine do for you?
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability
Application:

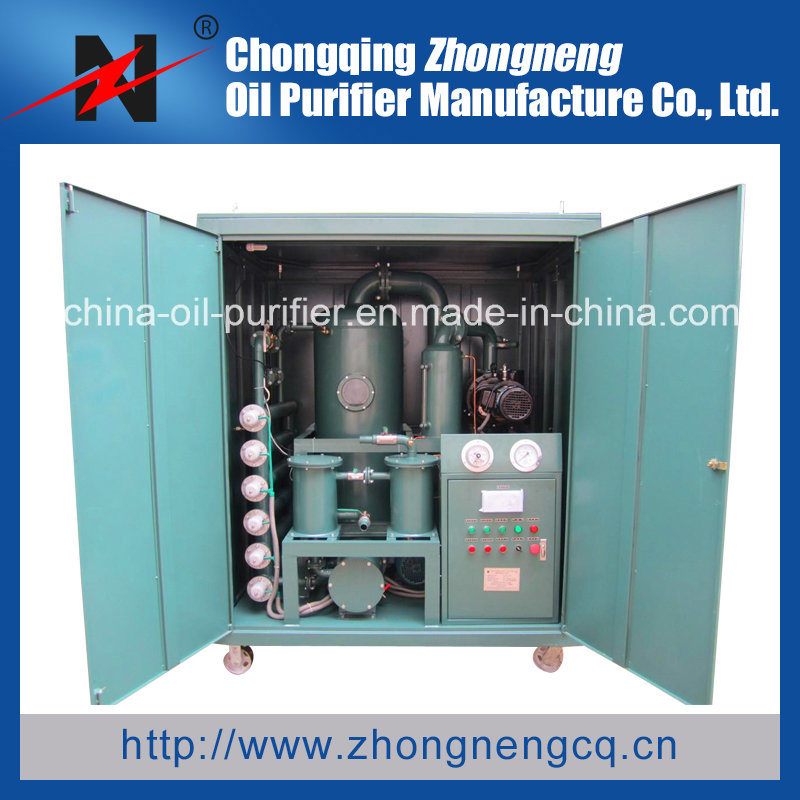

Series ZYD has been specially designed for regenerating insulating oils in energized or de-energized transformers even when transformer power above 110KV and altitude over 500 meters, as well as purify mutual inductor oil, switch oil and so on. (oilpurifier. Justin@zhongnengcq. Cn)
Features:
1. Operated fully-automatically with PLC controller.
2. The oil of any grades can be treated on line.
3. High vacuum: Ultimate vacuum ≤ 5Pa, Working vacuum ≤ 35Pa.
4. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.
5. High absorption speed: Absorption speed power ≥ 333 L/C.
6. UK G technology---the trace water (such as dissolved water) can be removed effectively.
7. Distinctive combination of double FH trapezoidal network filtering system and high polymer filter.
8. Carbon fiber infrared heating system---make the oil contains zero sum of ethane after the treatment.
9. Special for vacuum oiling and drying for power transmission equipments over 110KV.
Advantages:
1. Compared with the single-stage vacuum oil purifier, this machine is more quickly and completely on water, degas and impurities remove, which recover the oil limiting voltage-withstand function. With the bridge-type vacuum linking system that can purify and be an independent vacuum power supply, this machine can be applied to electric insulation devices.
2. Besides the dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon effectively, which can make the treated oil reach to the normal index on anti-oxides, acid-alkali water-solubility.
3. Mobile type with trailer, hermetical, canopy-covering, open and frame system.
Tester for transformer oil (series II-J)
-Coalescence-Separation Oil Filter
ZHONGNENG'S Main Products/Used Oil Solutions:
For Transformer Oil Filtration and Test:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYB Multi-Function Insulating Oil Treatment Equipment
Series ZYD Double-Stage High Vacuum Transformer Oil Purifier
Series ZYD-I Double-Stage High Vacuum Transformer Oil Regeneration System
ZV series Vacuum Pumping Device
Series JY On-Load Tap-changer Insulating Oil Purifier
Series IIJ-II Oil Tester (BDV Tester)
For Lube Oil/Hydraulic Oil Purification:
Series TYA Lubricant Oil Purifier Machine
Series TYC Lubricating Oil Regeneration System
Series TYA-I Phosphate Ester Fire-Resistance Hydraulic Oil Purifier
For UCO / Used Cooking Oil Vegetable Oil Purification:
Series COP Cooking Oil Filtration Unit
For Turbine Oil Reclamation:
Series TY Turbine Oil Purification Unit
Series TY-R Turbine Oil Regeneration System
For Fuel Oil Filtering:
Series TYB Light Fuel Oil Coalescence-Separation Purifier
For Black Engine Oil Regeneration:
Series LYE Waste Engine Oil Recycling System
For Simple Used Oil Purification and Oiling
Series PL Paper Plate Pressure Oil Filter
Series JL Portable Oil Purifier
For Explosion Proof Type Oil Filtration Needed:
Series EFD Explosion Proof Type Oil Filtration System
(Can be added on any model above)
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
What can this machine do for you?
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability
Application:
Series ZYD has been specially designed for regenerating insulating oils in energized or de-energized transformers even when transformer power above 110KV and altitude over 500 meters, as well as purify mutual inductor oil, switch oil and so on. (oilpurifier. Justin@zhongnengcq. Cn)
Features:
1. Operated fully-automatically with PLC controller.
2. The oil of any grades can be treated on line.
3. High vacuum: Ultimate vacuum ≤ 5Pa, Working vacuum ≤ 35Pa.
4. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.
5. High absorption speed: Absorption speed power ≥ 333 L/C.
6. UK G technology---the trace water (such as dissolved water) can be removed effectively.
7. Distinctive combination of double FH trapezoidal network filtering system and high polymer filter.
8. Carbon fiber infrared heating system---make the oil contains zero sum of ethane after the treatment.
9. Special for vacuum oiling and drying for power transmission equipments over 110KV.
Advantages:
1. Compared with the single-stage vacuum oil purifier, this machine is more quickly and completely on water, degas and impurities remove, which recover the oil limiting voltage-withstand function. With the bridge-type vacuum linking system that can purify and be an independent vacuum power supply, this machine can be applied to electric insulation devices.
2. Besides the dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon effectively, which can make the treated oil reach to the normal index on anti-oxides, acid-alkali water-solubility.
3. Mobile type with trailer, hermetical, canopy-covering, open and frame system.
Tester for transformer oil (series II-J)
-Coalescence-Separation Oil Filter
| Item | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Technical Data | Flow Rate | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Vacuum Range | MPa | -0.08~ -0.099 | |||||||
| Working Pressure | MPa | ≤0.3 | |||||||
| Temperature Range | ºC | 20 ~ 80 | |||||||
| Power Supply | 50Hz 380V(or as need) | ||||||||
| Working Noise | dB(A) | ≤75 | ≤75 | ≤80 | ≤80 | ≤80 | ≤82 | ≤85 | |
| Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
| Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
| Inlet (outlet) caliber | mm | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
| Weight | Kg | 450 | 550 | 900 | 1150 | 1450 | 1600 | 1950 | |
| Overall Dimension (mm) | Length | 1250 | 1400 | 1750 | 1800 | 2000 | 2050 | 2500 | |
| Width | 900 | 950 | 1250 | 1300 | 1400 | 1500 | 1800 | ||
| Height | 1700 | 1850 | 1900 | 1950 | 2100 | 2100 | 2400 | ||
| Guarantee Data after Treating | Breakdown Voltage | kV | ≥65 | ||||||
| Water Content | PPM | ≤5 | |||||||
| Gas Content | % | ≤0.1 | |||||||
| Particles Size | μm | ≤1 ~ 5(without free carbon) |
