Double Stage Vacuum Insulating Oil Purification System for sale
ZYD vacuum transformer oil filtration plant is special for treating various insulating oils, it can remove water, gas, impurity from insulating oil effectively, improve oil performance, the treated oil can be reused again.
Mobile transformer oil purifier is much suitable for outdoor working, like the outdoor transformer
oil treatment, ZYD is easy to move to far-way place, the completed-closed cover is waterproof, dustproof.
Feature
1.Mobile (trailer) type, completely closed structure, waterproof, dust-proof, move easily.2.
Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3.Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil.
4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6.Double infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8.Special oil pump is suitable for working under high vacuum states, low noise, working reliable.
Advantage
Mobile(trailer) type, completely closed structure, waterproof, dust-proof, it can move long distance working in field.
Technical Parameter
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working vacuum | MPa | -0.08 ~ -0.099 | |||||||
Working Pressure | MPa | ≤0.3 | |||||||
Breakdown Voltage | KV | ≥65 | |||||||
Water Content | PPM | ≤5 | |||||||
Gas Content | % | ≤0.1 | |||||||
Impurity Size | μ | ≤5 | |||||||
Temperature Range | ºC | 20 ~ 80 | |||||||
Power | Three Phase 50HZ380V(as per the customer's requirements) | ||||||||
Working Noise | dB(A) | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | KW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | KW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.

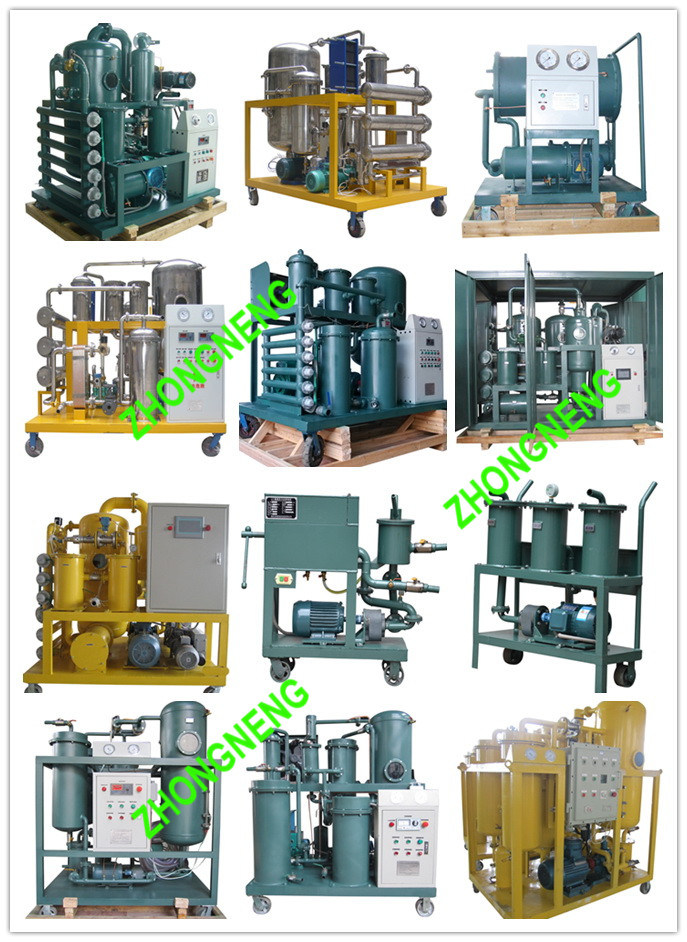

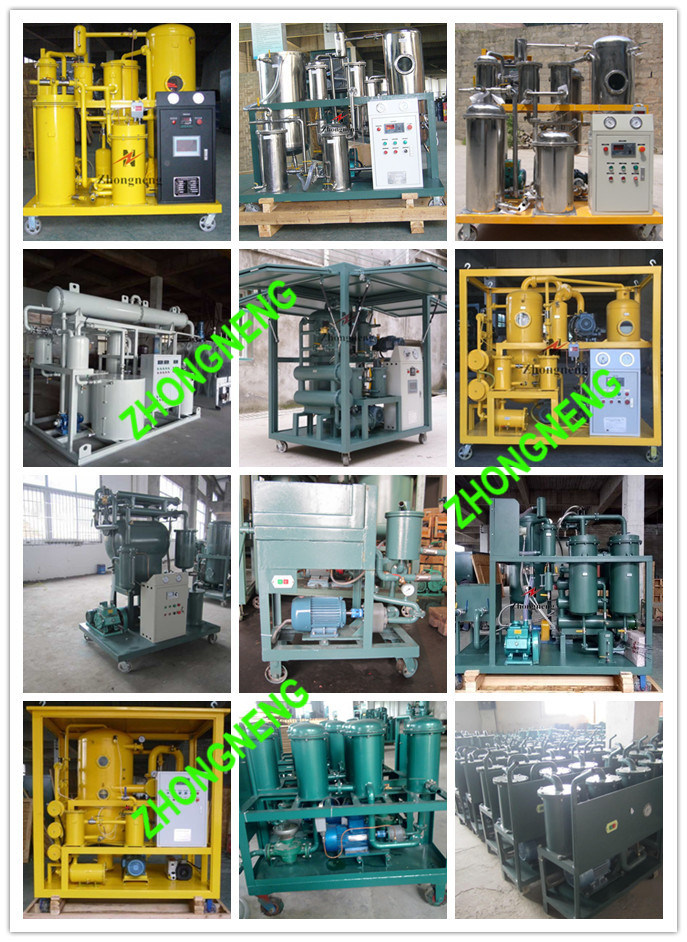

OUR CATALOGUE
