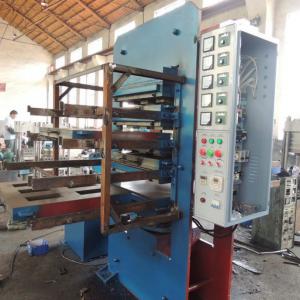

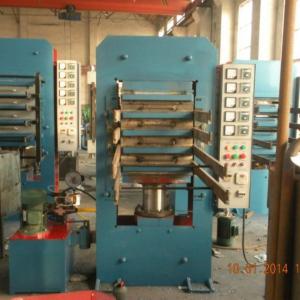

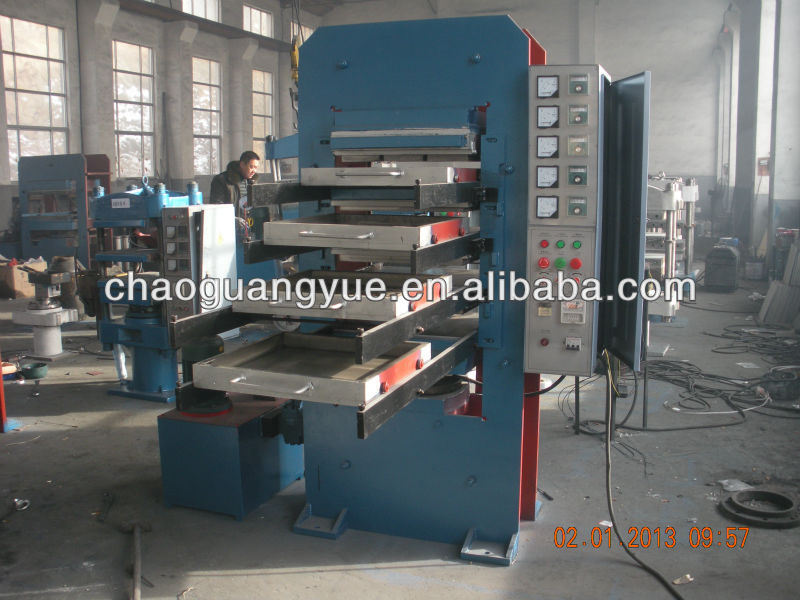

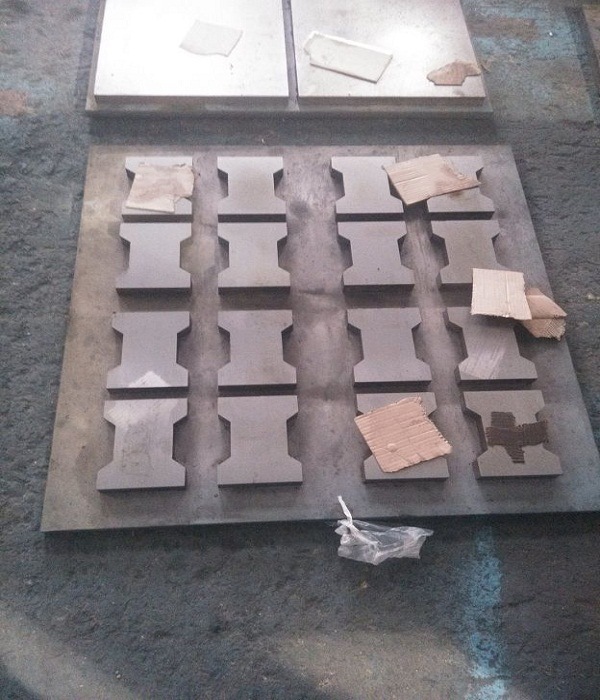

Recycle Rubber Floor Tile Mats Vulcanizing Machine/ Rubber Floor Tile Hydraulic Press
As a leading rubber machine manufacturer and exporter of China, we can supply professional quality rubber tile vulcanizer machine to you with competitive price and give guarantee to the quality. We also can produce various non-standard model press according to your detailed requirement.
Description:
1. This kind of vulcanizing machine is multi-functional beacuse it is suitable to be used for

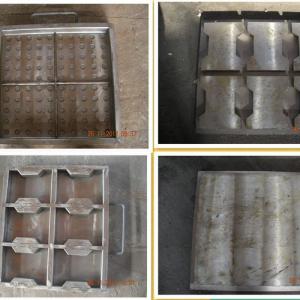

top opening double or triple mold plates.
2. High force employs dual pressure , and each oil system is designed seperately which
makes it stable ,quiet and low frequency of malfunction when working. Two sides can be
operated simultaneously.
3. The electric system adopt PLC programming control , which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy
consumption.
Technical Parameters
S.no | Model | XLB-D550×550×4/0.5MN | XLB-D650×650×2/0.5MN |
1 | Nominal clamping force (MN) | 0.5 | 0.5 |
2 | Heating platen size(mm) | 550×550 | 650×650 |
3 | Plate clearance (mm) | 150 | 150 |
4 | Working layers | 4 | 2 |
5 | Piston stroke (mm) | 400 | 400 |
6 | Plate unit area pressure (Mpa) | 1.65 | 3.20 |
7 | Overall dimension (mm) | 2200×900×2200 | 2200×1200×2400 |
8 | Weight (kg) | 3600 | 5000 |
Technical parameter of large frame structure:
Type | XLB-DQ1200×1200×2 | XLB-DQ1300×2000×1 | XLB-Q1200×2500×1 | XLB-Q1500×2000×1 |
Total pressure(MN) | 315t | 560t | 750t | 1000t |
Plate size(mm) | 1200×1200 | 1300×2000 | 1200×2500 | 1500×2500 |
Daylight(mm) | 200 | 400 | 400 | 400 |
Layer | 2 | 1 | 1 | 1 |
Piston stroke(mm) | 400 | 400 | 400 | 400 |
Plate unit area pressure (kg/ cm2) | 22 | 21.5 | 25 | 33.5 |
Main motor power(KW) | 3 | 8 | 9.5 | 11 |
Overall dimension (L×W×H)(mm) | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 |
Weight (kg) | 9500 | 17000 | 20000 | 24000 |
1. specialized in rubber machinery over 20 years;
2.100% real manufacturer, rather than a trading company;
3.Two-year guarantee for whole machine
4.We can design and manufacture all kinds of non-standard machinery according to customers requirement.
5.Our products have passed ISO9001:2008 International Quality Management System Certification, the EURO Cert
6.Main Clients:Southeast Asia, Central Asia, Middle East, South and North America, Europe and other countries and regions.
