Tire recycling machine magnetic screener

scrap tire tyre recycling equipment for sale

This plant is used to recycling the waste tire to final 20-100 mesh rubber powder .

We will crush the whole tires, separate the steel,and nylon fiber from the rubber .

Remarks:

1. Recycling Capacity: 1000kg/h

2. max outer diameter of the waste tires: 1200mm

3. Tire kinds: small truck tires and car tires (radial steel tires and nylon tires.)

4. products and sizes: rubber crumbs and powders, fibers and steel wires.

5. Water cooling, but water cooling tank and pipes from tank to machines not included in the quotation. Pipes on the machines included in the quotation.

6. Siemens brand motors (made-in-china), or customized but price difference adjustable

7. CHN brand electric parts (CHN is the best brand of electric parts in China), or Customized but price difference adjustable

8. CE certification

9. Electric buttons control system, automatic

10. Without pollution

11. Delivery time: 70 days after deposit.

12. Payment term: 30% to be paid by T/T in advance; balance to be paid by T/T after the buy test machine in our factory before shipment.

13. Guarantee: one year

14. Installation Charge is not included in the quotation.

If the buyer want us to install the machines, the buyer would pay the round air tickets, accommodation of our technicians, commission for each technician USD80/Day.

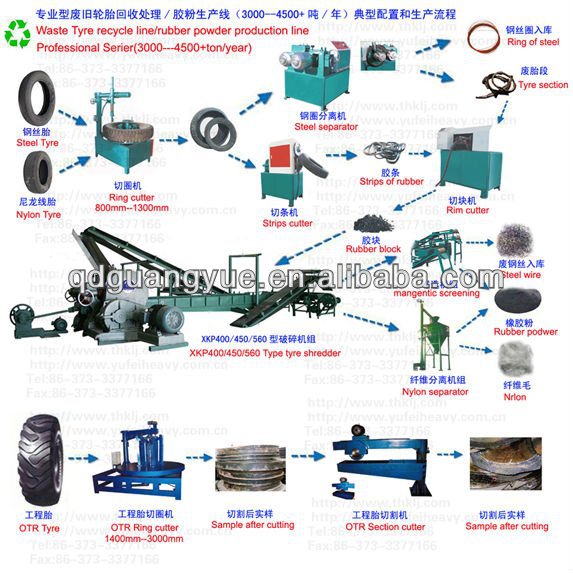

Main procession:

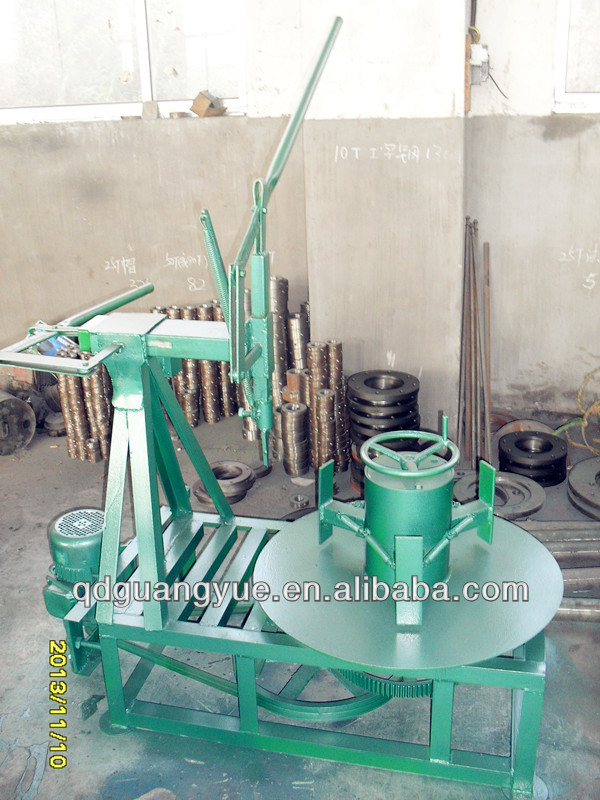

1.Ring cutter

   This machine mainly used to cut the sidewall of steel wire tire ,and then to the next step of segmentation .First, put the tire on the platform, then rotate the hand wheel , the three claws will stick the inner tire firmly ,Second ,Starting power,work platform will rotation ,cutting tool according to need to cut tire slowly step by step . until the tire side cut off.

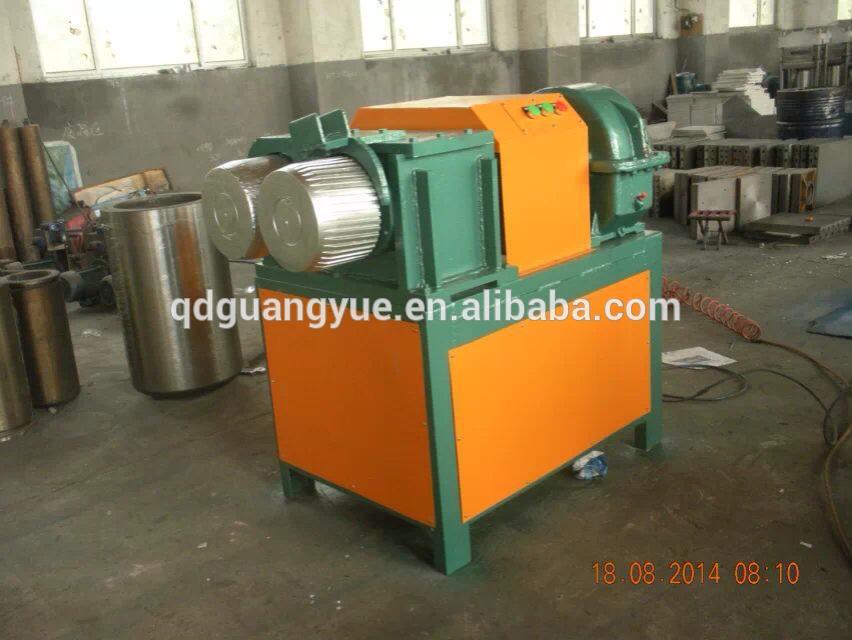

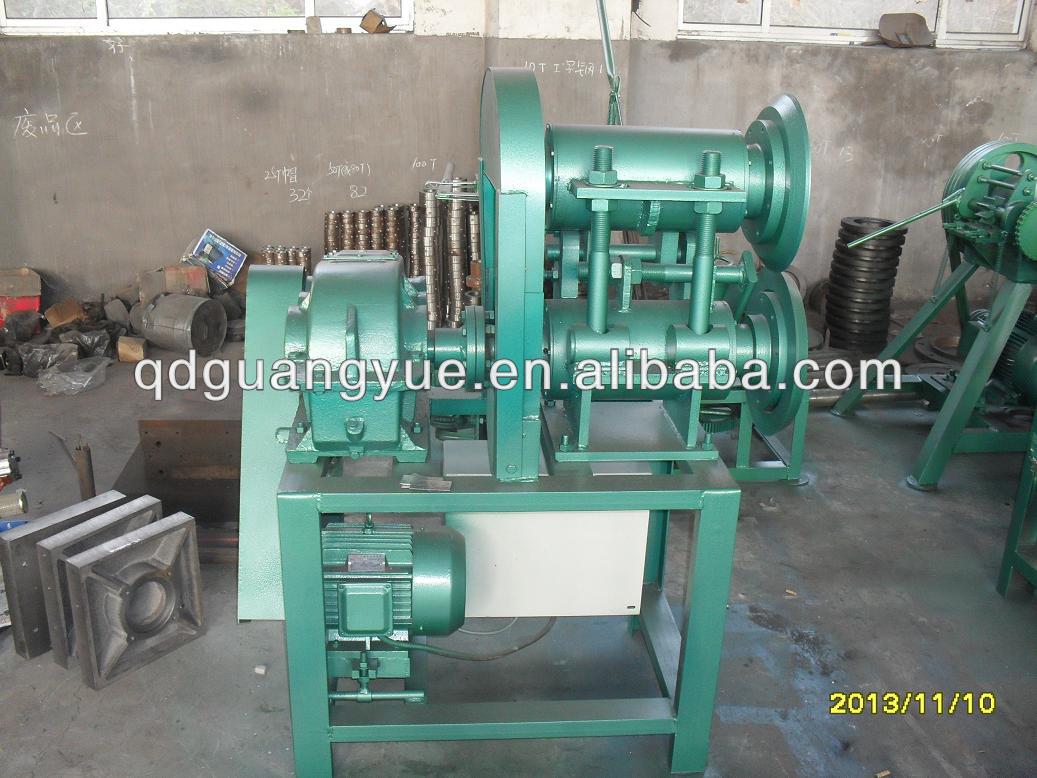

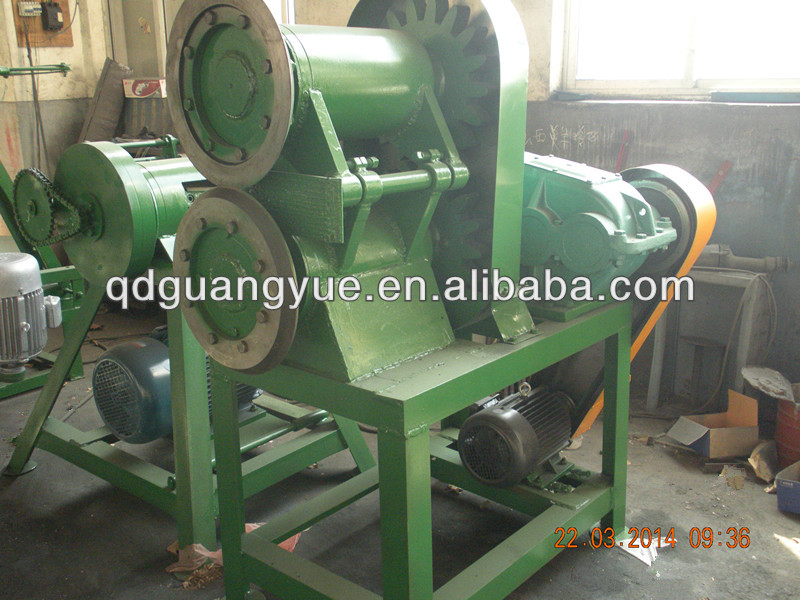

2.Strips cutter

 strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips ,and the width of the adjustable section .Two circular knives for special materials ,hard and durable , can be used repeatedly grinding for no more than 1200 steel tires.

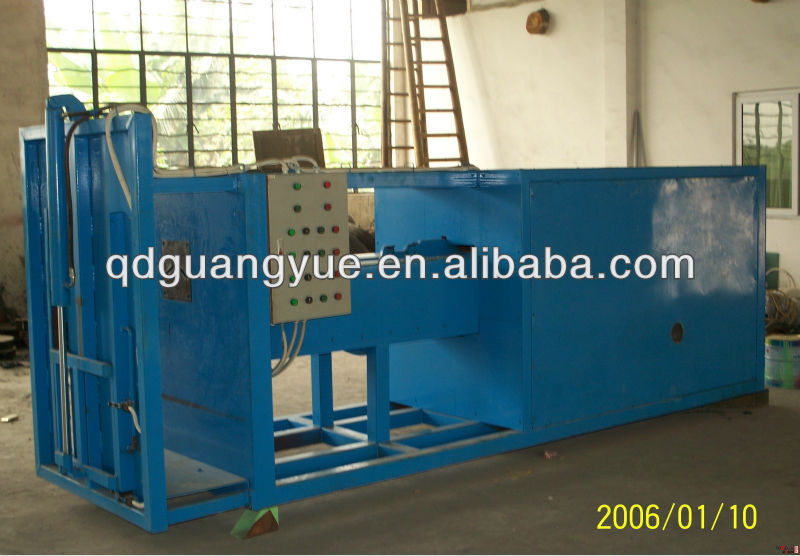

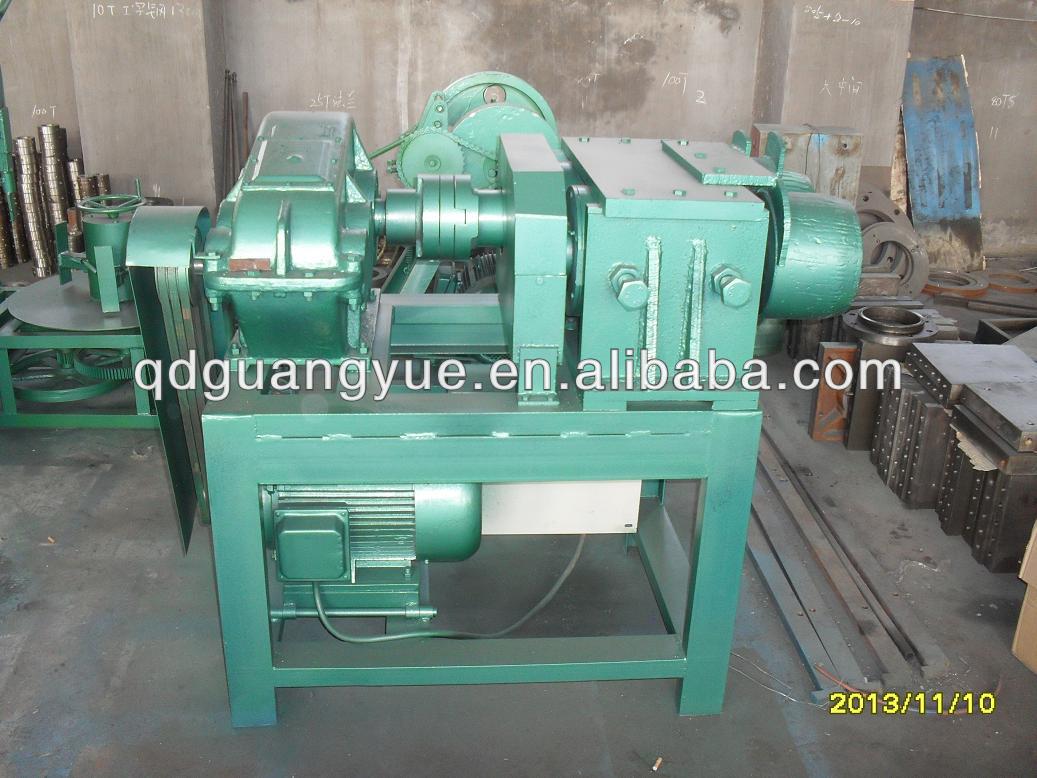

3.Block cutter

 Block cutter is designed to cut car, truck and rear tractor tire. range is up to 120cm truck tires. the tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120cm into your system ,The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.

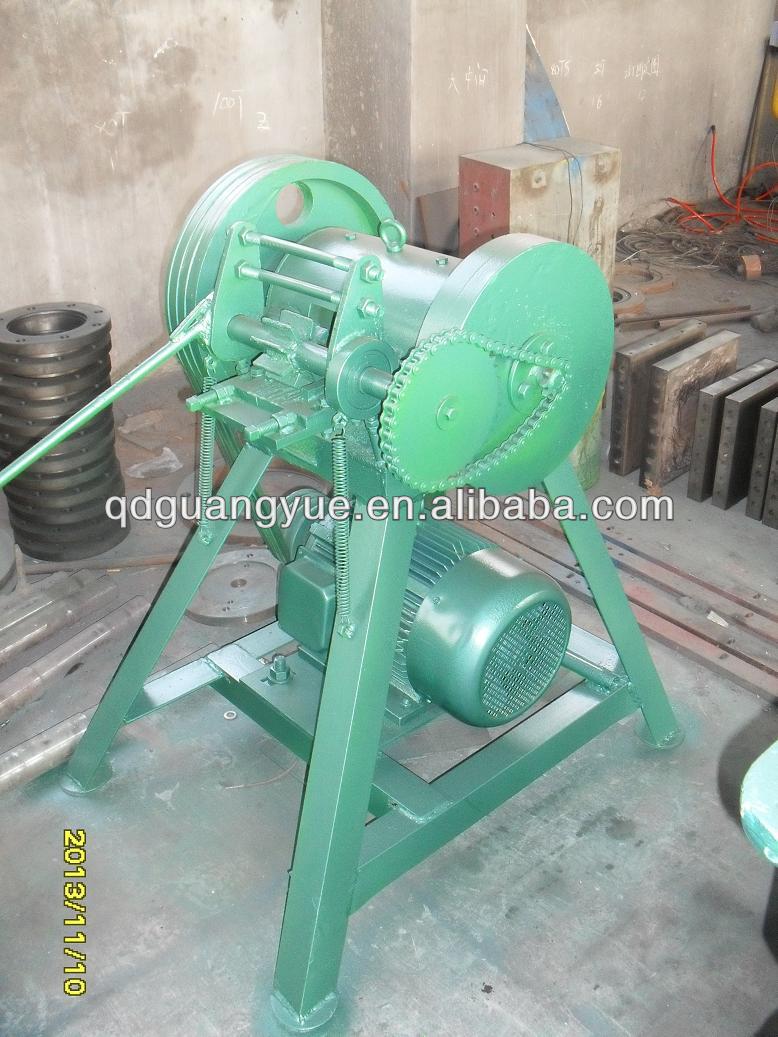

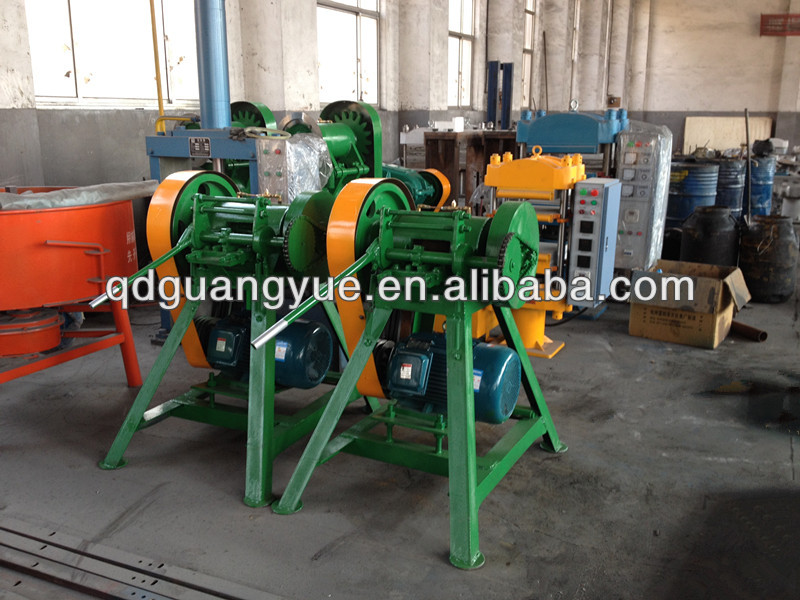

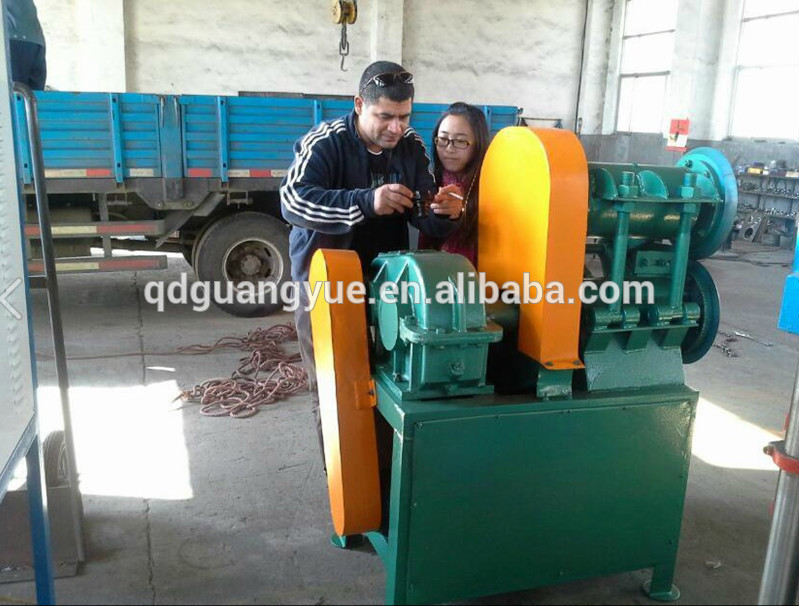

4.Bead wire separation

 Be utilized to separate rubber and steel wire of bead in order to get whole steel wire .

Feature:It is easy operation ,easy to be installed and maintained high efficiency and clean etc.

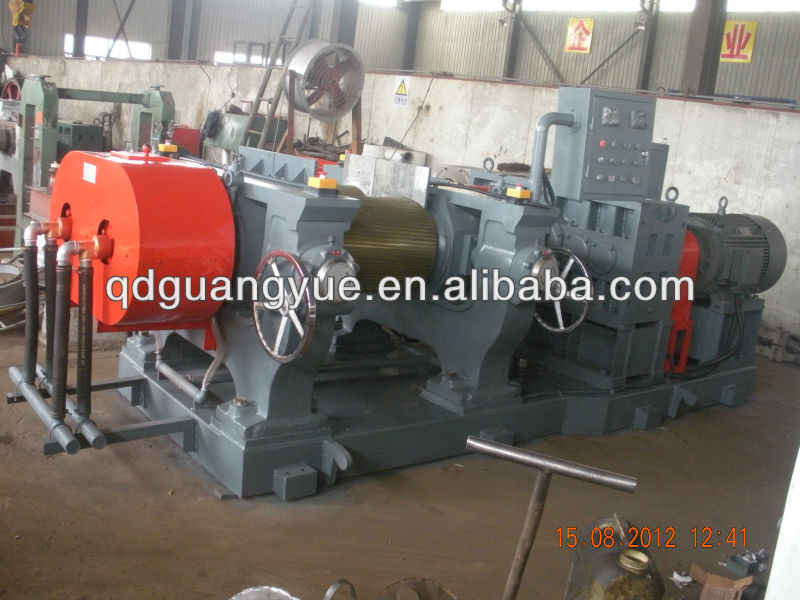

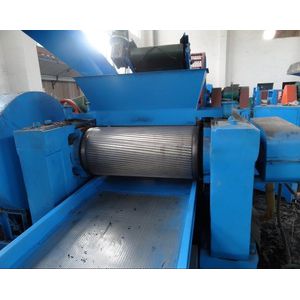

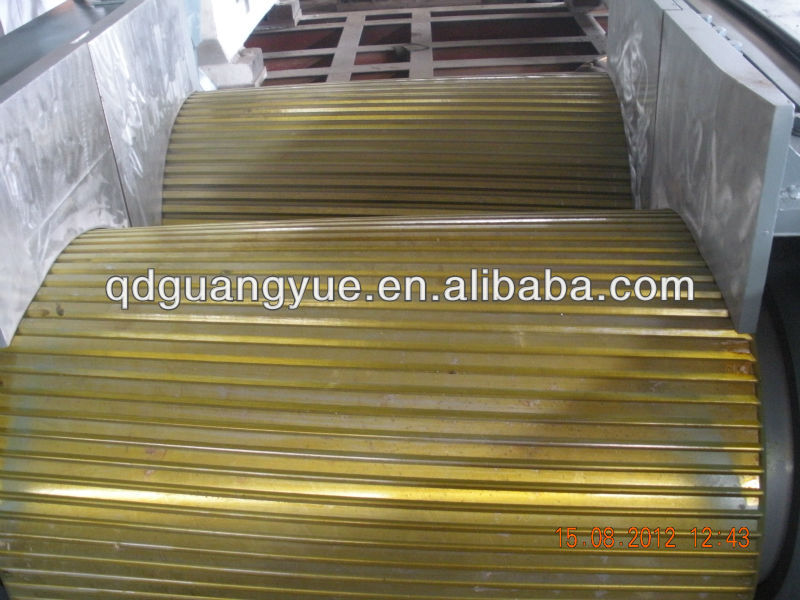

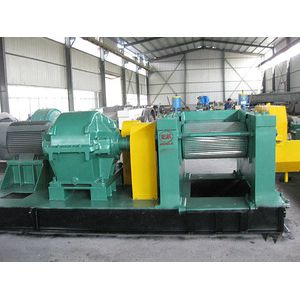

5.Tyre crusher

This machine is mainly used to crush waste tire and rubber .the structure is gear transmission

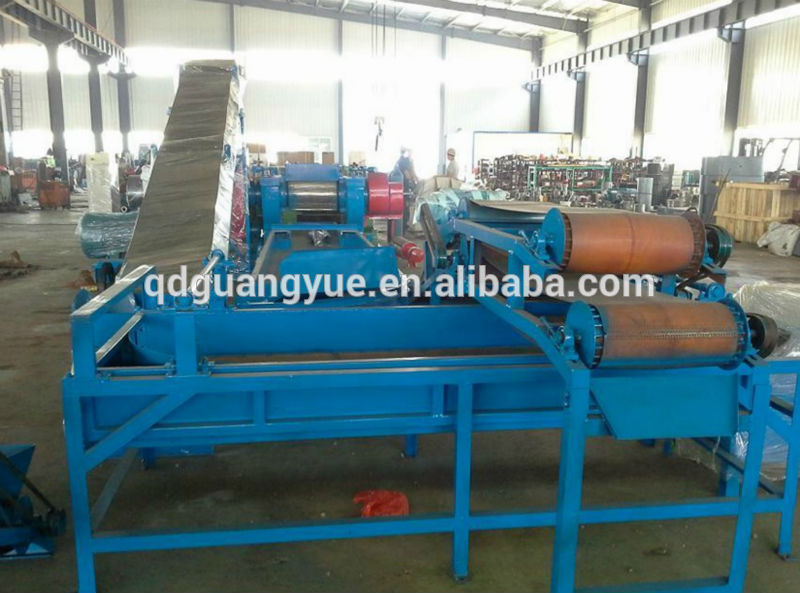

6. Selection and transportation system

                   Fully-auto waste tire recycle line

Usage:

  It could be applied to cut all kinds of rubber blocks and strips. It is good for cutting rubber tyre, rail tyre, rubber strips etc.

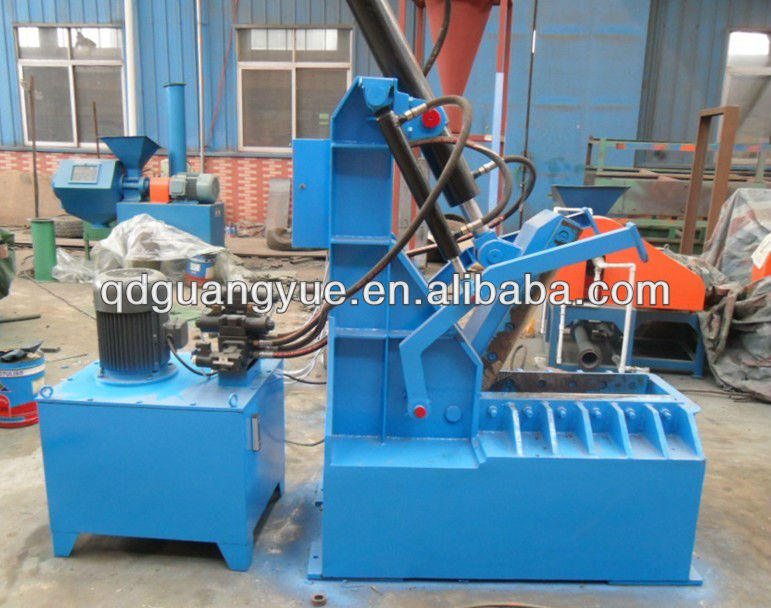

Construction & Principle: :

It mainly consists of the motor, cutting blades, static blades, frame, oil cylinder, hydraulic system, control box, etc.

Its basic principle is: The oil cylinder and hydraulic system are driven by a motor. Put the tyre without wire bead on the stand of the static blades. The tyre is fixed by locking arms tightly then cut by the blades driven by oil cylinder. The tyre is cut into several blocks, which will be more easily crushed or shredded for the next process.

 Technical Data:
