Performance data:
Viscosity: 3.0~ 760 mm2/ s;
Flow range: 10~ 1200 L/ min;
Maximum pressure: 1.6 MPa;
Max. Temperature: 120
Features:
1. Double bushes structure, axial balance at low pressure, deformation of screw not easy
2. Wearable and anti-jam working surface, with reliable operation;

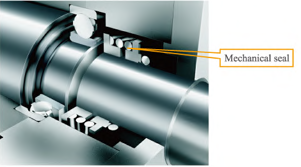

3. Unique double seal design, with reliable sealing effect
Application:
HSA series products can transfer various medium with lubricating property but without solid particles, mainly lubricant ( oil), including lubrication oil, machine oil, hydraulic oil, gear oil, turbine oil, etc.
The series products feature of simple structure, not only meet the operating requirements of the original three-screw pumps, but also meet the conditions of high speed and low viscosity; Therefore, they are widely used in the fields of machinery, petrochemical, metallurgy, iron & steel, marine, Centralized lubrication unit, Lube circulation system, compressor system, etc.
Mounting Type:
F: Fixed mounting with feet support and bracket
D: Fixed mounting with set bolt of motor
S: Vertical mounting with support bracket.
Viscosity: 3.0~ 760 mm2/ s;
Flow range: 10~ 1200 L/ min;
Maximum pressure: 1.6 MPa;
Max. Temperature: 120
Features:
1. Double bushes structure, axial balance at low pressure, deformation of screw not easy
2. Wearable and anti-jam working surface, with reliable operation;
3. Unique double seal design, with reliable sealing effect
Application:
HSA series products can transfer various medium with lubricating property but without solid particles, mainly lubricant ( oil), including lubrication oil, machine oil, hydraulic oil, gear oil, turbine oil, etc.
The series products feature of simple structure, not only meet the operating requirements of the original three-screw pumps, but also meet the conditions of high speed and low viscosity; Therefore, they are widely used in the fields of machinery, petrochemical, metallurgy, iron & steel, marine, Centralized lubrication unit, Lube circulation system, compressor system, etc.
Mounting Type:
F: Fixed mounting with feet support and bracket
D: Fixed mounting with set bolt of motor
S: Vertical mounting with support bracket.
