Screw Pump-Three Screw Pump-Oil Pump-Hydraulic Pump-Jacking Pump

DecriptionHSE series high pressure three-screw pump is selfdeveloped based on the introduction of global advanced technology and RSP's own rich application experience.The key parts technology is the initial in China.  B

Technical Feature

  • 500 PC/Year
  • Standard Seaworthy Wooden Case
  • L/C, T/T
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~5

PRIMARY PARAMETERS

Model NO.
HSE
Screw Suction Method
Single Suction
Performance
Health
Structure
Rotary Pump
Type
Horizontal Type
Function
Hydraulic System
Technology
Domestic Leading
Noise
Low
Trademark
RSP
Origin
China
Screw Number
Multi Screw Pump
Pump Shaft Position
Horizontal
Application
Metallurgy, Power, Petrochemical
Principle
Positive Displacement Pump
Pressure
High
Color
Any
Efficiency
High
Capacity
Medium
Specification
ISO 9001, CE and GB/T10886-2008
HS Code
8413604090

DETAIL DESCRIPTION

Decription
HSE series high pressure three-screw pump is self
developed based on the introduction of global advanced technology and RSP's own rich application experience.The key parts technology is the initial in China.  Being able to transfer various lubricity liquid without any solid particles, it is with high technical accumulation, reliable performance, high efficiency and long service life. It also has been patented as: ZL2013 20840721.4.

Performance Range
Flow: 20-430LPM
Pressure: maximum 16MPa
Speed: 1450-2900RPM
Viscosity: 10-760 cst
Temperature: maximum 120°C

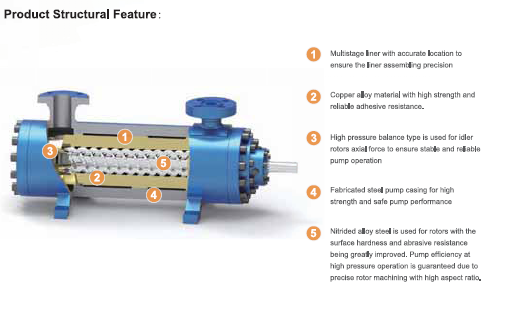

Feature
Screw Pump-Three Screw Pump-Oil Pump-Hydraulic Pump-Jacking Pump

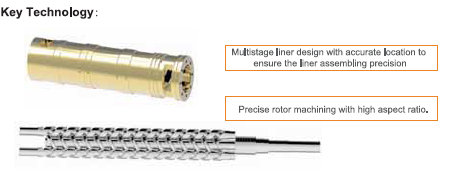

Key Technology
Screw Pump-Three Screw Pump-Oil Pump-Hydraulic Pump-Jacking Pump
