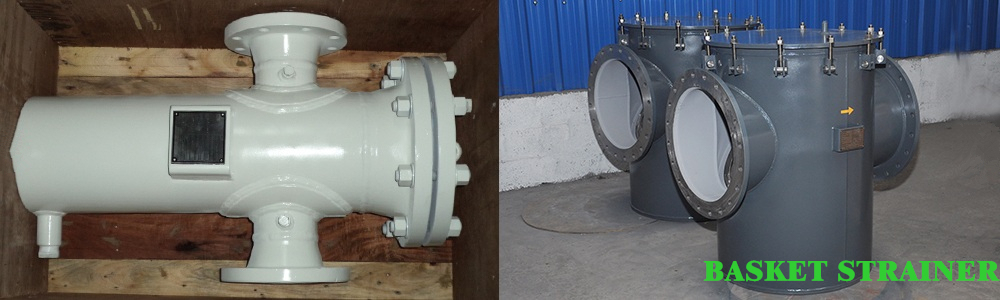

AEA Basket Strainer prevents costly shutdowns and protects your piping system and equipment. Ideal for steam, air, water, oil and gas lines, our basket strainer removes the dirt from the system that can damage moving equipment. Our strainer also helps maximize the life of pumps and other equipment.
Ruggedly constructed, it features a closed bottom and cast iron drain plug. Stainless steel basket for long life. Available in sizes from 2″ thru 24″, body castings and strainer screens are available in a variety of materials, perforations and mesh linings for virtually every application.
Production Range
| Size | NPS 2″~24″ |
| Pressure Rating | Class 150~1500 Lbs |
| Design & Manufacture | API 608,API 6D,BS 5351,ASME B16.34, DIN |
| Test and Inspection | ASME B16.34, API 6D, ISO5208, BS N 12266 |
| Face to Face | ASME B16.10,API 6D,BS EN 558 |
| End Connection | ASME B16.5,BS EN 1092 |
| Mesh | 10 Meshes-200 Meshes |
| Suitable Medium | Steam, Water, Gas and Oil Pipeline |
FEATURE
- Basket or "U" Type, Steel Fabricated;
-10 Meshes to 200 Meshes;
- Drain Plug is optional;
-Stainless Steel renewable Screen
-With Drain Valves
- Quick Opening
- Compact Design
-Bolted Blind Flange Cover
-NPT Vent (1/2") and Drain or SW Vent (1/2") and Drain
-Perforated Basket
-Integral Seat
-Basket Type Structure
OPTIONS:
-Carbon Steel, Stainless Steel, Alloy Steel, Bronze;
-Hinged Cover;
-Cover Davit;
-ASME B31.3, B31.4,B31.8;
-Support Legs or skirt;
-DP Gauge Connect;
-DP Gauge/Switch;
-Air Release Head;
-Spiral Wound Gasket;
-Weld Neck Flange;
-Larger perf or Mesh Liner;
-Renewable mesh liner;
-Flanged Vent and Drain;
-Heavy duty baskets and wedge wire;
-Blow-down basket
BASKET
Standard baskets are 304 stainless steel and are spot welded for maximum strength. Different size perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements. If media is not indicated, screens for water will be supplied.
CLEANING
Cleaning of this strainers is accomplished by removing the cover and pulling out the basket.

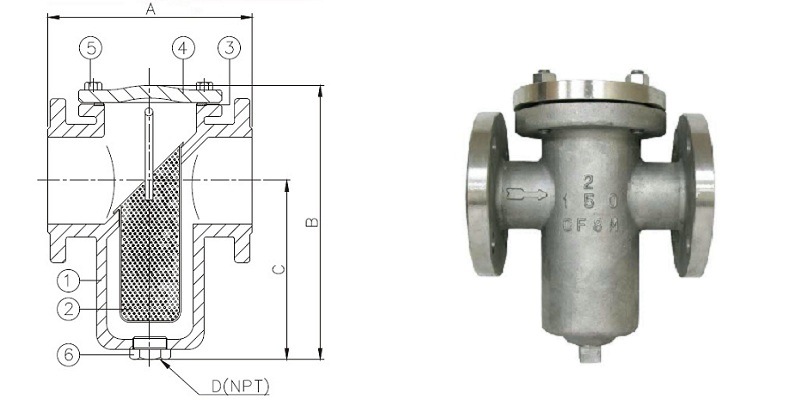

| PARTS LIST | ||
| ITEM | DESCRIPTION | MATERIAL |
| 1 | Body | Stainless Steel A351,CF8/CF8M); Carbon Steel A216 WCB |
| 2 | Basket | Stainless Steel 304 |
| 3 | Gasket | Spiral Wound Stainless Steel (304);VITON, BUNA-N |
| 4 | Cover | Stainless Steel A351,CF8/CF8M); Carbon Steel A216 WCB |
| 5 | Screen | Stainless Steel 304/316;Carbon Steel A105 |
| 6 | Drain Plug | Stainless Steel 304/316 |
| 7 | Hex Head Cap Screw | A193 B7;Stainless Steel 304/316 |
| 8 | Sealing Material | NBR, VITON |
APPLICATION
Steam, water, oil or gas where protection from foreign matter in a pipeline
is required.
CONSTRUCTION
The strainers are constructed from rugged carbon steel castings and are machined to exacting specifications. These bodies have raised faced and drilled flanges that are in accordance with ASME B16.5. All flanges come standard with back-faced bolt holes.
