Supler Stainless Steel Soft Seated PTFE Peek Seat Insert Top Entry Side Entry Double Block and Bleed Floating Flange Ball Val

PRIMARY PARAMETERS

Model NO.

Q41

Structure

Floating Ball Valve

Type

Floating Ball Valve

Function

Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve

Temperature

High Temperature

Standard

ANSI, DIN, GOST

Application

Industrial Usage, Water Industrial Usage, Household Usage

Body

Split Body or Integral Body

Ball

Trunnion Mounted Ball, Double Block & Bleed

Stem

Blowout-Proof

Seat

Self Relieving Seatss(Single Piston Effect Seat or

O Ring

Aed O Ring

Fire Safe Design

External Leakage Prevention, Internal Leakage Prev

Ball Seat Alignment

Mechanical Stops Are Equipped on All Valves to Ens

Sealing

Double Block and Bleed

Cryogenic Services

Extended Bonnet for Cryogenic Services

Special

Nace Mr-0175

Trademark

O. E. M or AEA Brand

Transport Package

Plastic+Wooden Case

Specification

1500*1500*2000mm

Origin

China

HS Code

848180

DETAIL DESCRIPTION

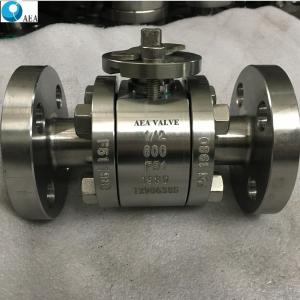

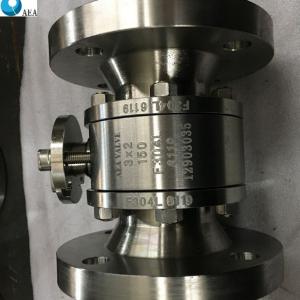

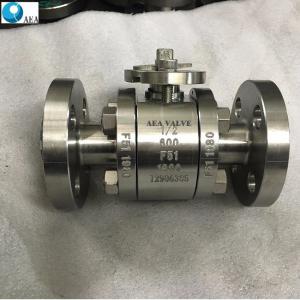

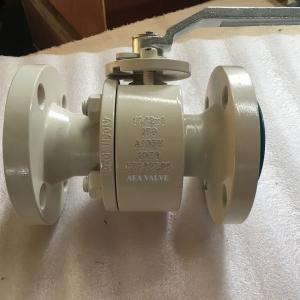

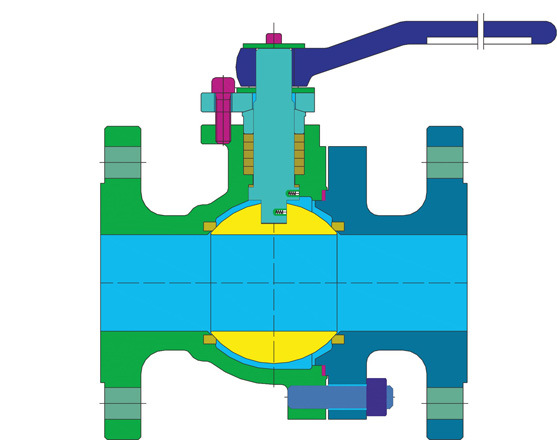

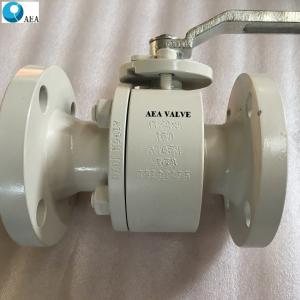

AEA Forged Steel Floating Ball Valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196ºC~ 500ºC) . It can substitute the small size trunnion mounted ball valves to save cost.

Supler Stainless Steel Soft Seated PTFE Peek Seat Insert Top Entry Side Entry Double Block and Bleed Floating Flange Ball Valve

Supler Stainless Steel Soft Seated PTFE Peek Seat Insert Top Entry Side Entry Double Block and Bleed Floating Flange Ball Valve

Product Range
-Valve size:
1/2" ~ 10" (DN15-DN250)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
End Connection :RF, RTJ,BW, SW, NPT

Technical Specifications
-Design: ASME 16.34/BS 5351/API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/API 6D/ BS 6755
-Special: NACE MR-01-75

Design Features
-Full port or reduce port
- Fire Safe Design
-Blowout-proof stem
- Anti-Static Device
-Low emission control
-Optional locking device
-ISO 5211 top flange

Size and Dimensions:

Class	Dimensions(mm)
NPS(inch)	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10
DN(mm)	15	20	25	32	40	50	65	80	100	125	150	200	250
150LB	L	108	117	127	140	165	178	190	203	229	356	394	457	533
H	59	63	75	86	97	107	142	152	178	252	272	342	345
W	130	130	160	220	220	260	320	320	400	700	1100	1100	*
300LB	L	140	152	165	178	190	216	241	283	305	381	403	502	568
H	59	63	75	86	97	107	142	152	178	252	272	342	345
W	130	130	160	220	220	260	320	320	400	850	1100	*	*
600LB	L	165	190	216	229	241	292	330	356	432	508	559	660	-
H	59	63	75	95	107	162	205	226	240	305	353	374	-
W	130	130	160	220	230	230	400	400	500	850	*	*	-
* Gear
