New Type Basket Filter Housing

New Type Basket Filter Housing  Features:    Shell inner and outer surface all used mirror polished, ensure that the material liquid contact surface Ra reached 0.4μm close to the sanitary requirement.   Filter shell can use Eyebolt connection

Technical Feature

  • Ningbo, China
  • 1000PCS/ Month
  • L/C, T/T
  • Ss 304/316L
  • 0.6MPa
  • Electric Power
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~150

PRIMARY PARAMETERS

Trademark
CHFNA
Transport Package
Wooden
Origin
Wenzhou, Zhejiang

DETAIL DESCRIPTION

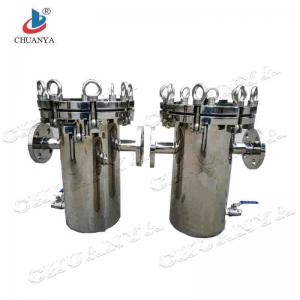

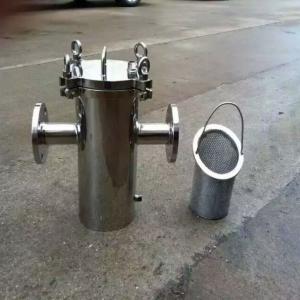

New Type Basket Filter Housing

Features:

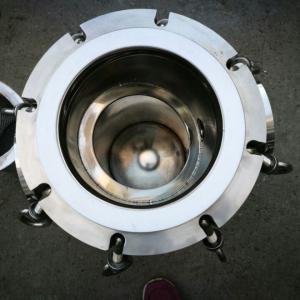

    Shell inner and outer surface all used mirror polished, ensure that the material liquid contact surface Ra reached 0.4μm close to the sanitary requirement.

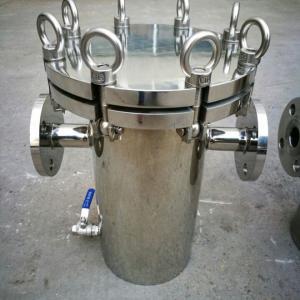

   Filter shell can use Eyebolt connection or quick-open connection, which is convenient for operation and economical and practical.


Surface
Treatment TypeMechanical polishing, electrolytic polishing, sand blasting, picking
Polishing precisionMirror Polish Ra≤0.4μm

Operating Conditions
Max Operating pressure0.6MPa, 1.0MPa
Max Operating Temp140ºC

Connection
Shell connectionFlange (Eyebolt)
In-outlet N1, N2Flange, thread, Tri-clamp
Vent valve N3(optional)3/4''  male thread
Drain valve N4(optional)1'' male thread

Dimension Parameters1 basket
In-outlet 2''In=outlet 3''
A: Total height
(excluding filter cover)
500580
B: The distance from inlet to center230
C: DiameterФ6''
D: The height from in-outlet N1, N2 to ground300360
E: Drain port N4 height from the ground60

The above-mentioned data is the standard, it can customize according to customer's requirements.

New Type Basket Filter Housing

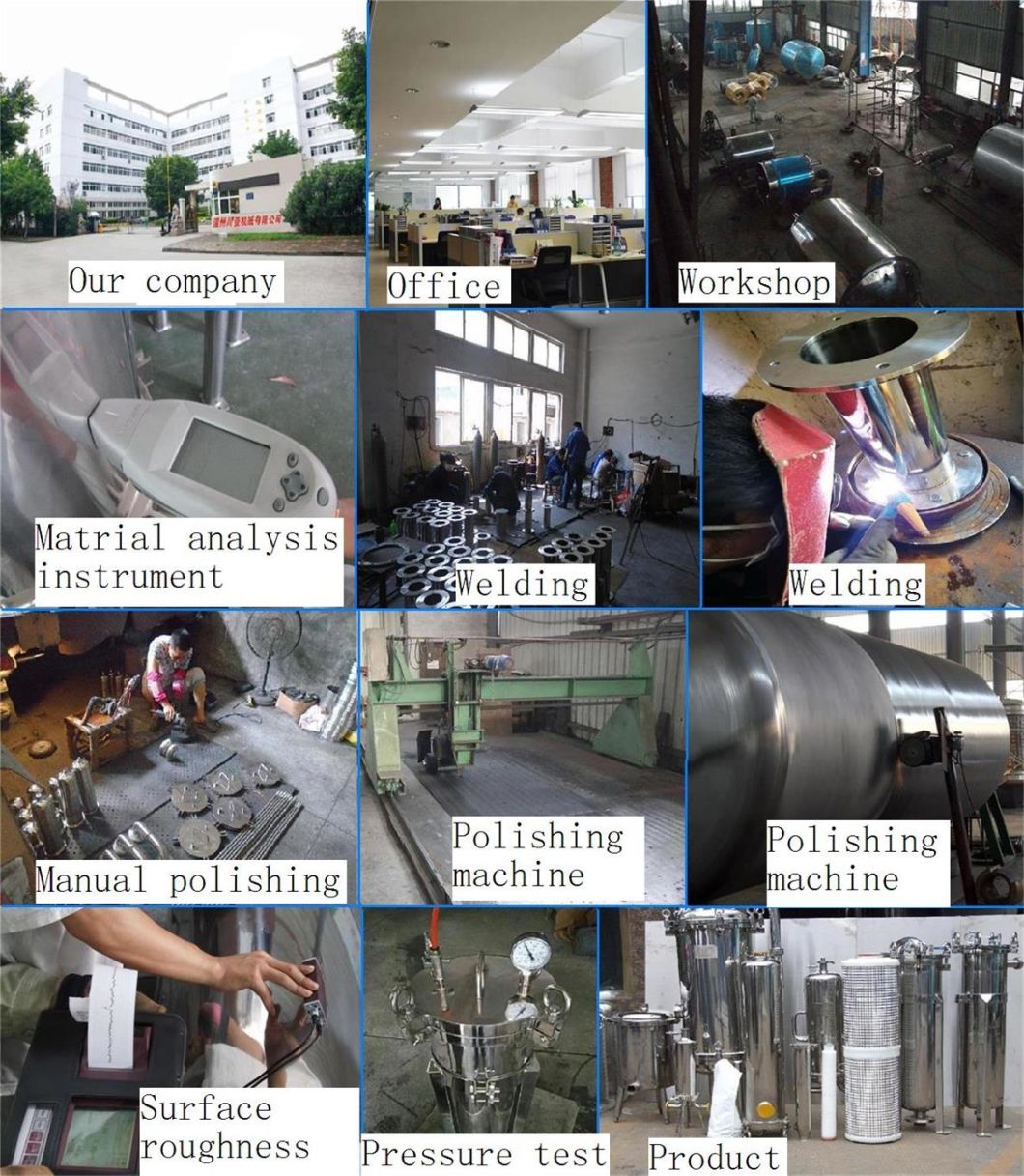

Company Show
