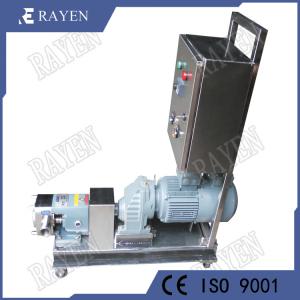

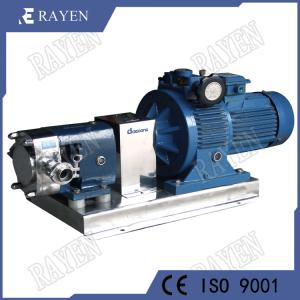

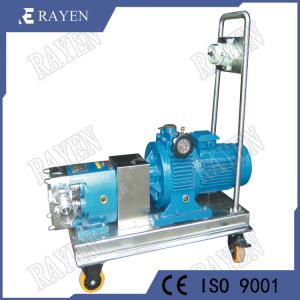

SUS304 sanitary stainless steel chocolate lobe pump single gear pump
1.Material: AISI 316L or AISI 304
2.Standard: 3A, SMS, DIN, RJT, ISO/IDF
3.Connection Way: Clamp, Male, Flange, Weld
4.Mechanisal Seal: C, SIC, EPDM
5.Power: 0.55Kw-22Kw
6.Max. Flow: 62m?/h / 272GPM
7.Max. Pressure: 12bar / 174 PSI
8.Max. Working Temperature: 120ºC / 248 ºF
9.Max. Rev.: 960rpm
10.Internal Surface Finishing: Ra≤0.6
11.External Surface Finishing: Mirror Polish
SUS304 sanitary stainless steel chocolate lobe pump single gear pump is suitable for transporting high viscosity, ensity and any medium containing particle.High pressure of out let makes sure the long distance and high resisitance transportation with stable capacity used widely in health ,food ,chemical, industial areas .
1.Material: AISI 316L or AISI 304
2.Standard: 3A, SMS, DIN, RJT, ISO/IDF
3.Connection Way: Clamp, Male, Flange, Weld
4.Mechanisal Seal: C, SIC, EPDM
5.Power: 0.55Kw-22Kw
6.Max. Flow: 62m?/h / 272GPM
7.Max. Pressure: 12bar / 174 PSI
8.Max. Working Temperature: 120ºC / 248 ºF
9.Max. Rev.: 960rpm
10.Internal Surface Finishing: Ra≤0.6
11.External Surface Finishing: Mirror Polish
SUS304 sanitary stainless steel chocolate lobe pump single gear pump is suitable for transporting high viscosity, ensity and any medium containing particle.High pressure of out let makes sure the long distance and high resisitance transportation with stable capacity used widely in health ,food ,chemical, industial areas .
1. Q: Are you manufacturer or trading company? |
| A: RAYEN is a professional manufacturer. |
2.Q: How could we confirm the details of the products? |
| A: RAYEN will provide the detail drawings for you to confirm. |
3.Q: How long the warranty will be? |
| A: 1 Year warranty. |
4.Q: Do you take L/C? |
| A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
5.Q: Can we become your distributor in our country? |
| A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
