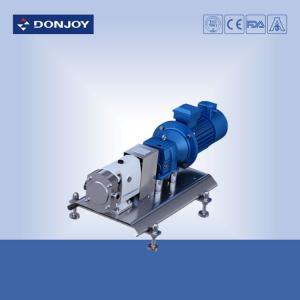

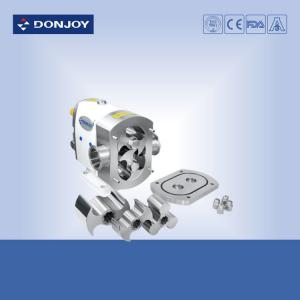

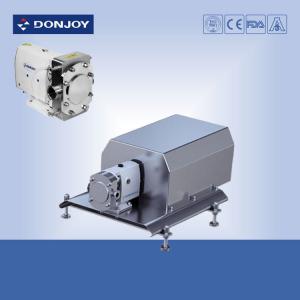

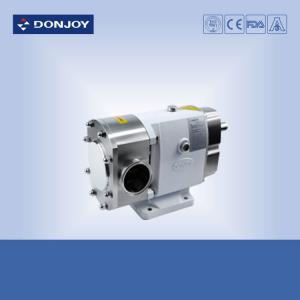

Stainles Steel Sanitary Vertical Rotary Lobe Pump (TUR Series)

Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.Specification:Product Name:Stainles Steel Sanitary Vertical Rotary Lobe Pump(TUR Series)Material:SS316L/1.4404Seal Material:EPDM (Standard, FDA appro

Technical Feature

  • Ningbo, China
  • 60 PCS/Month
  • L/C, T/T, Paypal
  • Rotary Vacuum Pump
  • Positive Displacement Pump
  • Vacuum
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.

Specification:
Product Name:Stainles Steel Sanitary Vertical Rotary Lobe Pump(TUR Series)
Material:SS316L/1.4404
Seal Material:EPDM (Standard, FDA approval)
Max. Flow:90m3/h / 395 GPM
Max.pressure:12bar/ 174PSI
Max. working temperature:150 C / 302 F
Max. rev:1450 rmp
Rotor Type:2-leaves, 3-leaves, butterfly, signal butterfly
Mechanical seal:SIC/SiC/EPDM(Standard)
Motor power:0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw
Sealing option:Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:110V, 220V, 380V
Motor:ABB, 50hz/ 60hz
Surface treatment:Inner polished and Sandblast outside
Availably connection:Clamp, Thread Butt weld, Flange
Availably standard:DIN, SMS, 3A, RJT, ISO/IDF
Operated:Electic
Certificate:3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope: Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:Plywood case or customerized. Or as per the request of customers
Delivery details:Usually within 20 days after receiving T/T down payment

Stainles Steel Sanitary Vertical Rotary Lobe Pump (TUR Series)
Stainles Steel Sanitary Vertical Rotary Lobe Pump (TUR Series)
Stainles Steel Sanitary Vertical Rotary Lobe Pump (TUR Series)
