Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.

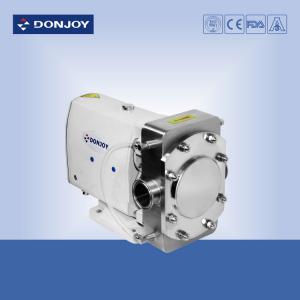

The pump is a positive displacement lobe roto pump designed accroding to UAS 3A stanard.
The equipment is processed with USA 3A and vey strict hygienc.
The pump is ideal for the transfer of viscous as well as low-viscous media in the food-processing,cosmetics and pharmaceutical industries.
Specification:
| Product Name: | Stainless Steel Rotary Lobe Pump for Chocolate, Honey |
| Configuration: | console, lockable mobile plate, mechanical avariable gearbox |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) |
| Max. Flow: | 62m3/h/395GPM |
| Max.pressure: | 12bar/ 174PSI |
| Max. working temperature: | 150 C / 302 F |
| Max. rev: | 1450 rmp |
| Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB, 50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
