Application:food chemical pharmacy
material: 304 316L
Main parameter
| 304/316L | |||
| FLOW / L 100RPM | POWER | RPM | connection size |
| 3 | 0.55kw | 100-200 | 25*1.5 |
| 6 | 0.75kw | 100-200 | 25*1.5 |
| 8 | 1.5kw | 100-200 | 32*1.5 |
| 12 | 2.2kw | 100-200 | 38*1.5 |
| 20 | 3.0kw | 100-200 | 38*1.5 |
| 30 | 4.0kw | 100-200 | 38*1.5 |
| 36 | 4.0kw | 100-200 | 38*1.5 |
| 52 | 5.5kw | 100-200 | 50.8*1.5 |
| 70 | 7.5kw | 100-200 | 63.5*1.5 |
| 78 | 7.5kw | 100-200 | 63.5*1.5 |
| 100 | 11kw | 100-200 | 76*2 |
| 160 | 18.5kw | 100-200 | 89*2 |
| 200 | 22kw | 100-200 | 102*3 |
Features:
With such features as simple structure ,easy disassembly, adjustable foot height ,vibration absorption device ,low noise ,high efficiency ,long operation time and soft and gentle material handing,the sanitary centrifugal pump meets food hygiene requirements and ensure the original flavor of products.
Purpose :
Conveying ,circulation,pressure increase,filling line ,filling, emptying,filtering, evaporating ,cleaning ,etc.
Application :
Medicine /cosmetics
Ultra-pure water,essence,lotion,injection,water,distillate.
Beer:
Beer,wort,yeast,water and CIP solutions
Dairy products:
Milk,cream,yoghurt,whey,brine and CIP solutions
Food :
Oil,condiments,brine,washing,flavoring materials,ice cream mixture.
Material: 304 316L
Connection type: butt joint ,union,flange
Mechanical seal type : Single mechanical seal
Dry grinding type mechanical seal
Static seal: silicone rubber,fluorine rubber,PTEF,EPDM.

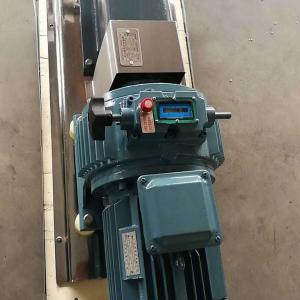

Speed reducer : Gear reducer
Stepless speed adjuster
delivery time :
according to the customer
Packaging & Shipping
Packing Details:standard wooden case
Delivery Time : 20 days after your oder
