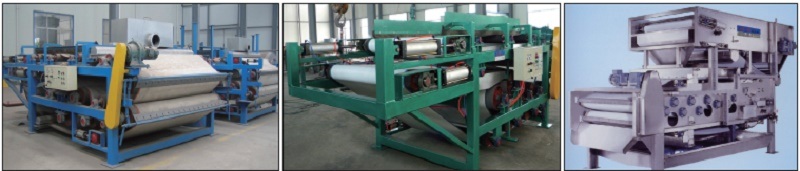

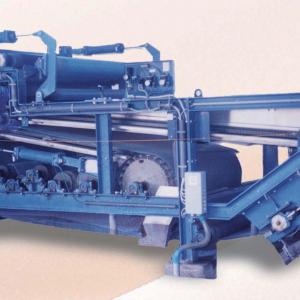

Belt press filter is a kind of dehydration equipment which is researched and developed through the absorption of the foreign advanced technology. It has the characteristics of large processing capacity, high dehydration efficiency and long performance life. As an associated equipment of sewage treatment, it can make the suspended substance and sediment dehydrate in filter press after air blowing and press them into mud cake so as to achieve the aim of secondary pollution prevention and treatment. It also can be used to condense the pulp and extract the black liquor and other processing treatment.
Technical Parameters
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
Technical Parameters
| Type | Filter belt width | Filter belt speed | Feed concentration | Discharge concentration | Working pressure | Hydraulic pressure | Driving power | Ability | Size |
| mm | m/min | % | % | MPa | MPa | KW | T/D | L×W×H mm | |
| SD-1000 | 1000 | 0.8-4 | 3 Min | 25-45 | 0.4 Min | 0.5 Min | 2.2 | 10-20 | 6500×1450×2920 |
| SD-1500 | 1500 | 0.8-4 | 3 Min | 25-45 | 0.4 Min | 0.5 Min | 2.2 | 20-30 | 6500×2100×2920 |
| SD-2000 | 2000 | 1.0-5 | 3 Min | 25-45 | 0.4 Min | 0.5 Min | 3.0 | 30-40 | 6500×2760×2920 |
| SD-2500 | 2500 | 1.0-5 | 3 Min | 25-45 | 0.4 Min | 0.5 Min | 3.0 | 40-60 | 6500×3450×2920 |
| SD-3000 | 3000 | 1.0-5 | 3 Min | 25-45 | 0.4 Min | 0.5 Min | 3.0 | 60-80 | 6500×4250×2920 |
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
