Description

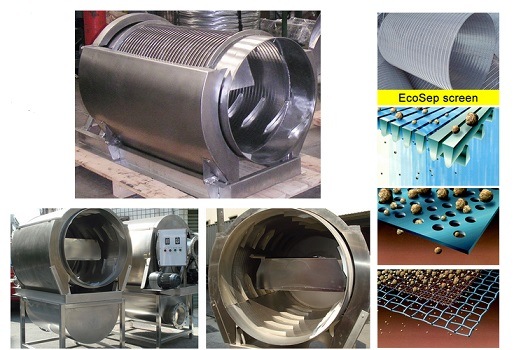

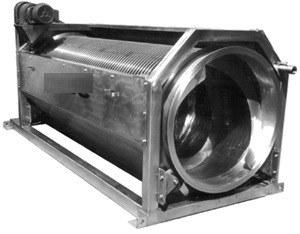

Internally fed drum screen filter

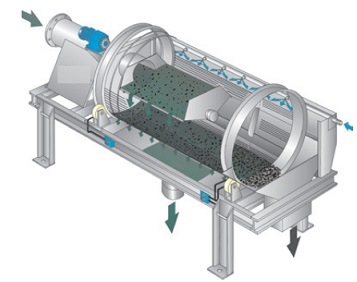

The Rotating Drum Fine Screen is used for filtration, the filtration process used here is inside out. The RDFS consists of a filtration screen drum which is rotating. The effluent to be filtered is fed right into the center of the drum. The rotating drum also consists of screw flights to move the trapped solids in the forward direction. The solids are trapped inside the drum and the filtered water simply flows out through the screen by gravity. The clogged screen is cleaned by a back washing flushing arrangement and a brush. Both these arrangements are provided from the outside of the screen. The feed into this equipment has to be pumped inside. The bottom collection tank has three compartments, one where the filtrate is collected, second where the overflow can be collected and third a guide hopper from where the solids fall down. The Equipment is completely enclosed when in operation.
Features:
The Screen can be Operated as Follows:
Technical Parameter
Advantages:
Packaging & Shipping
Packaging
1. All the products are packed in seaworthy wooden cases.
2.Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description
Internally fed drum screen filter
Features:
- Long working life
- Optimum finish
- Highly efficient
The Screen can be Operated as Follows:
- Manually as per requirement.
- By using timers. ( for Backwash Pump ) Prior to the fitting of this fine screen a coarse screen of minimum 10mm needs to be installed.
| Model | Tube diameter(mm) | Slot Size(mm) | Removal rate | Shape area(mm) | |
| Grain size >0.75mm | Grain size >037mm | ||||
| JXMR-600 | 600 | 0.2-2 | 95% | 55% | 2450x1000x960 |
| JXMR-800 | 800 | 3000x1200x1200 | |||
| JXMR-1000 | 1000 | 3400x1350x1250 | |||
| JXMR-1200 | 1200 | 3500x1850x1450 | |||
| JXMR-1500 | 1500 | 3650x1800x1880 |
- Direct collection of solids in bins without any operator interference.
- Screen outer portion remains always clean which helps in achieving the capacity even when the Suspended solids Percentage fluctuate.
- Very low power required.
- Plug and Play Equipment / Ease of Installation
- Minimum maintenance costs
- Very low space
Applications:
- Municipal wastewater treatment plants
- Plastic recycling, paper industry
- Fruit and vegetable processing
- Breweries, wine cellars
- Sugar industry
- Fiberglass industry, wood processing
