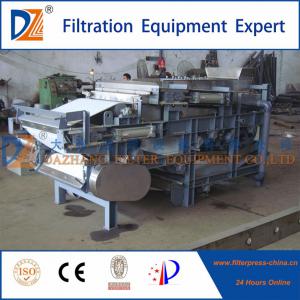

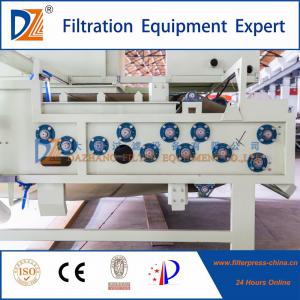

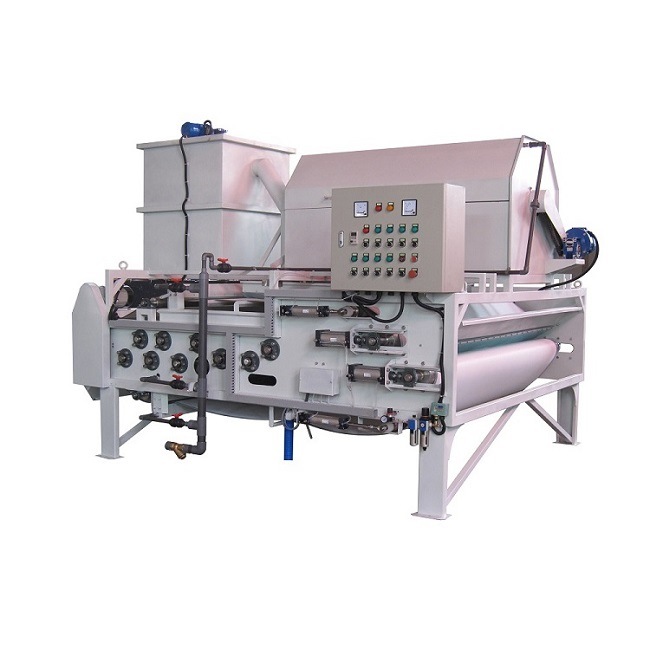

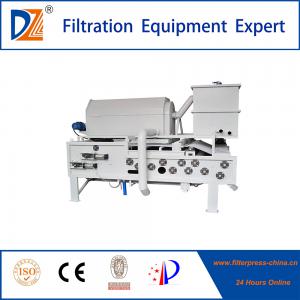

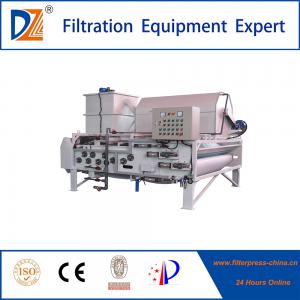

2017 Dazhang Belt Filter Press with Drum Thickening System( Stainless steel/ Carbon steel)
Product Description
Dazhang Belt filter press adopts advanced technology from Austria and has a good appearance. The BFP system mainly consists of Automatic Tracking System, Filter Cloth Tension System, Cloth Washing System, Cake Scraping System, Inclined Gravity Drainage Zone, Wedge Dewatering Zone and Roller Pressing Zone. And it can continuously dewater sludges/slurries by means of Gravity Belt Filter, Belt Filter Press.
Working Process of Belt Filter Press:
1.Preprocessing of flocculation. Mix polymer with the sludge to permits the agglomeration of particles.
2.Distribute the flocculated sludge onto the Gravity Dewatering Zone. The slurry moves through a series of plows and the free liquid is removed by gravity drainage porous.
3.Then the slurry moves into the Long Wedge Zone and became loosely structured cake.
4.The loosely structured cake proceeds forward and enter into the Roller Pressing Zone, which consists of a combination of rollers that decrease in size and accordingly can produce the medium and high pressure to squeeze. 5.Finally the cake is scraped off the belts and discharged. At the same time, both belts separate and back to the beginning of the process.
Features of Belt filter press:
-International Advanced Technology
-Welded Cast Iron Structure With Compact Design
-High Efficiency Long Gravity Dewatering Zone
-Perfect Long Wedge Dewatering Zone
-Automatic Dual Pneumatic Tensioning & Tracking System
-Large Area Drainage Rollers
-PLC Program Control and DCS remote interface reserves
-Thickening devices (optional) can greatly improve the dewatering effect
Applications of belt filter press:
-Municipal WWTP Sludge
-Pulp & Paper Sludge
-Water Plant Sludge
-Septage
-Ink Sludge
-Mineral Slurries
-Food Products
-Etc.
Technical Data
Working Site:
Work Shop:
Company overview
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
Product Description
Dazhang Belt filter press adopts advanced technology from Austria and has a good appearance. The BFP system mainly consists of Automatic Tracking System, Filter Cloth Tension System, Cloth Washing System, Cake Scraping System, Inclined Gravity Drainage Zone, Wedge Dewatering Zone and Roller Pressing Zone. And it can continuously dewater sludges/slurries by means of Gravity Belt Filter, Belt Filter Press.
Working Process of Belt Filter Press:
1.Preprocessing of flocculation. Mix polymer with the sludge to permits the agglomeration of particles.
2.Distribute the flocculated sludge onto the Gravity Dewatering Zone. The slurry moves through a series of plows and the free liquid is removed by gravity drainage porous.
3.Then the slurry moves into the Long Wedge Zone and became loosely structured cake.
4.The loosely structured cake proceeds forward and enter into the Roller Pressing Zone, which consists of a combination of rollers that decrease in size and accordingly can produce the medium and high pressure to squeeze. 5.Finally the cake is scraped off the belts and discharged. At the same time, both belts separate and back to the beginning of the process.
Features of Belt filter press:
-International Advanced Technology
-Welded Cast Iron Structure With Compact Design
-High Efficiency Long Gravity Dewatering Zone
-Perfect Long Wedge Dewatering Zone
-Automatic Dual Pneumatic Tensioning & Tracking System
-Large Area Drainage Rollers
-PLC Program Control and DCS remote interface reserves
-Thickening devices (optional) can greatly improve the dewatering effect
Applications of belt filter press:
-Municipal WWTP Sludge
-Pulp & Paper Sludge
-Water Plant Sludge
-Septage
-Ink Sludge
-Mineral Slurries
-Food Products
-Etc.
Technical Data
| Model | Belt Width(mm) | Capacity(m3/hr) InterConcentration(S.S.1.5-2.5%) | Dry Solid (kg/hr) | Cake Moisture |
| DNY500 | 500 | 3.0-5.2 | 45-78 | 63-84.5 |
| DNY750 | 750 | 4.5-7.5 | 68-113 | 63-84.5 |
| DNY1000 | 1000 | 6.5-10.5 | 98-158 | 63-84.5 |
| DNY1250 | 1250 | 7.5-12.5 | 113-188 | 63-84.5 |
| DNY1500 | 1500 | 9.5-16 | 143-240 | 63-84.5 |
| DNY1500L | 1500 | 12-20.5 | 180-308 | 63-84.5 |
| DNY1750 | 1750 | 15-24.5 | 225-368 | 63-84.5 |
| DNY2000 | 2000 | 18-30 | 270-450 | 63-84.5 |
| DNY3000 | 3000 | 40-55 | 360-675 | 63-84.5 |
| Remark | Decided by the nature of wastewater |

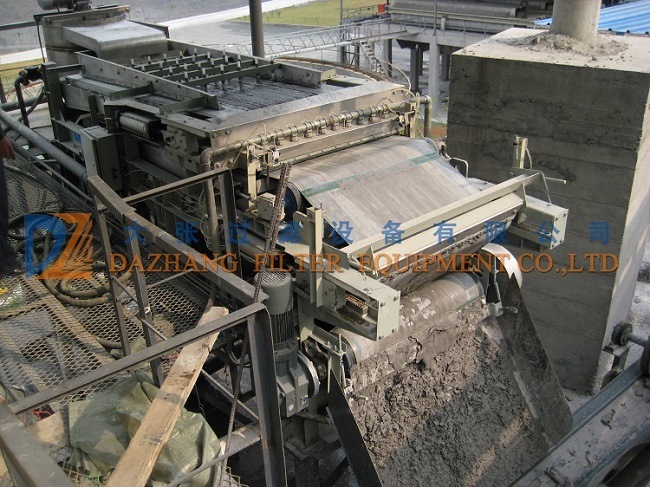

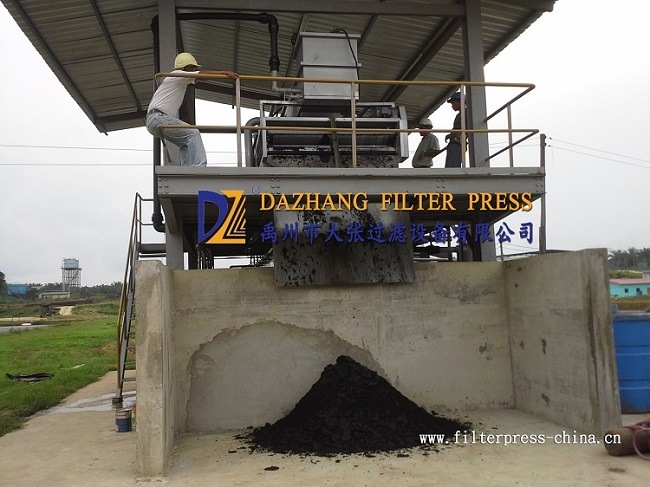

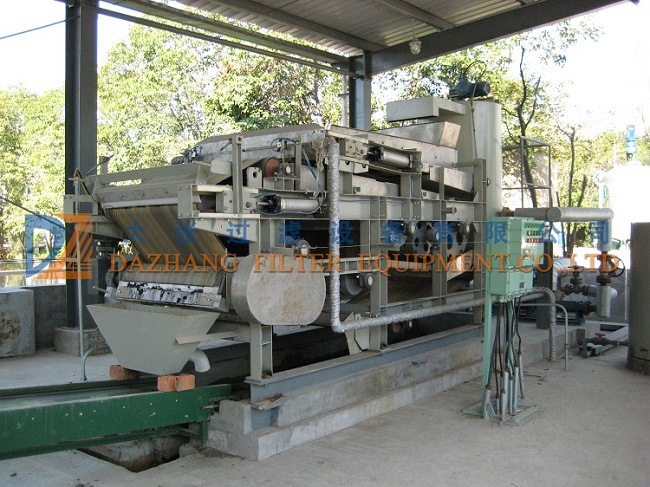

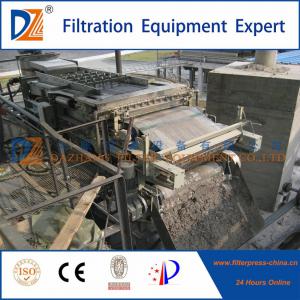

Working Site:

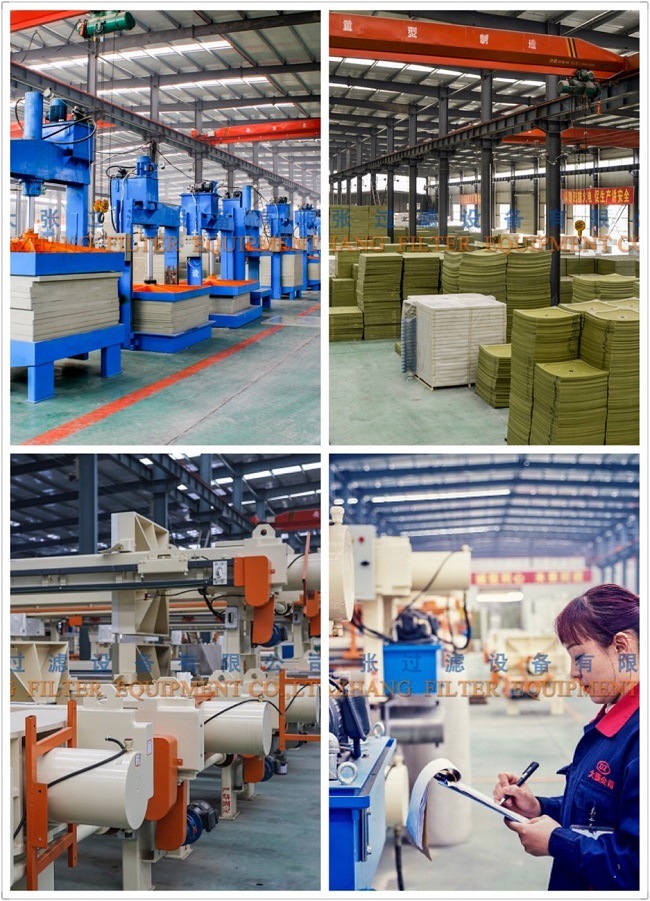

Work Shop:
Company overview
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
