Ozonated Water System (OWS) is a integrate ozone generator, mixing device and contact tank, all in one system. It is convenient and installation friendly system to give you minimum installation work. It is content normal water inlet and ozonated water outlet
It's widely used for aquaculture & zoo, bottled water, clean in space, cooling tower, drinking water treatment, wine & beer, livestock water treatment, washing vegetable etc. .
Features:
1. Technology corona discharge quartz ozone cell
2. Adjustbale water flow rate, advanced air or water-cooling
3. Inner PSA oxygen generator unit
4. No-water protection system, turn off machine if no water in mixing pump
5. Over-temperature protection, over current protection
6. Integrate ozone generator, oxygen concentrator, mixing pump
7. High concentration ozonated up to 1-5 ppm

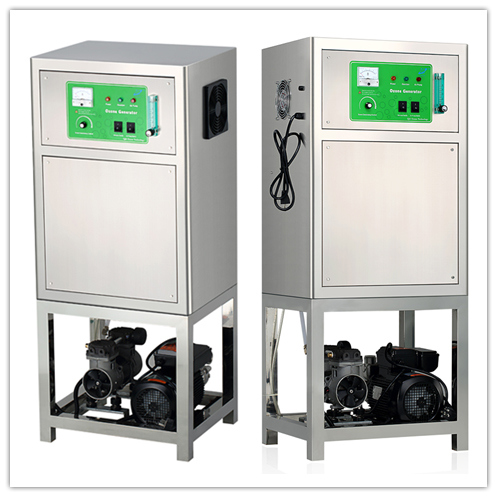

Product Picture:

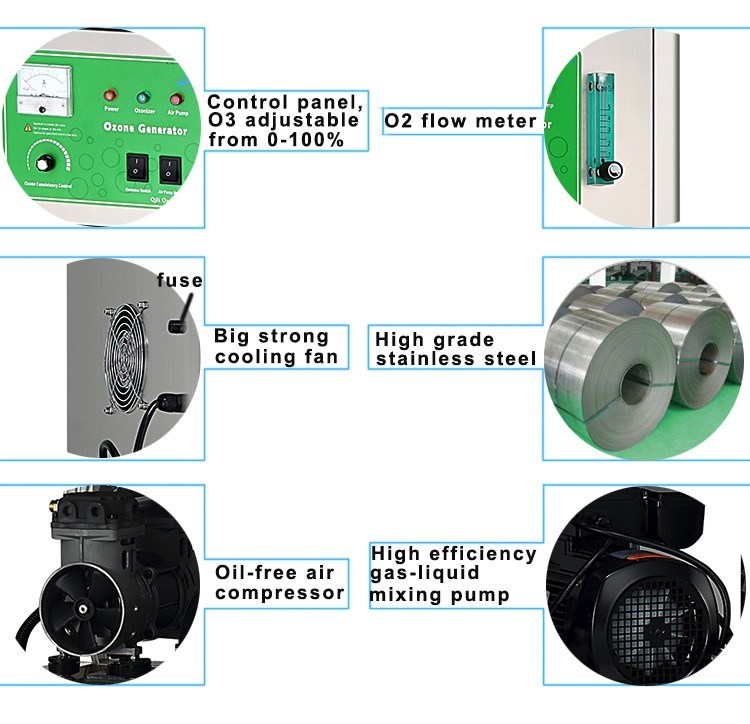

More details:
Specification
Model | QL-OWS-10G | QL-OWS-20G | QL-OWS-30G | |
Ozonated water output | Flow rate | 1000L/Hr | 2000L/Hr | 3000L/Hr |
Concentration | 1-5PPM | 1-6PPM | 1-7PPM | |
Output pressure | 2-3KG/CM2 | |||
Operating requirements | Voltage | 220~240V/50~60Hz | ||
Power | 1.1KW | 1.8KW | 2.0KW | |
Temperature | 5-40ºC | |||
Inlet pipe diameter | 3.4" | 1" | 1" | |
Outlet pipe diameter | 1/2" | 3/4" | 3/4" | |
Dimension | CM | 50*40*120 | 50*40*138 | 50*40*153 |
Net Weight | KG | 65 | 75 | 85 |
Ozone Benefits for Water Treatment
- More effective than chlorine in destroying viruses and bacteria
- Utilizes a short contact time
- No harmful residuals that need to be removed after ozonation because ozone decomposes rapidly
- No regrowth of microorganisms, except for those protected by the particulates in the wastewater stream
- Generated onsite, and thus, there are fewer safety problems associated with shipping and handling
- Elevates the dissolved oxygen (DO) concentration of the effluent
- Can eliminate the need for reaeration and also raise the level of DO in the receiving stream
- Clean, safe, and reliable, taking up less space, and less equipment than many chemical treatment/storage systems
- Saves money by eliminating on-going chemical costs
- Destroys all bacteria without a preference to one type of organism. Ozone will also remove some BOD, COD, and many other contaminates in the wastewater stream.
- Filtration will not be necessary after ozone disinfection
- Fewer secondary by-products like trihalomethones (THM) are formed with the use of ozone
- Ozone is most effective, however, by either eliminating or significantly reducing precursors in the raw water responsible for THM formation.
- Oxidation of odor causing compounds in the water may also be a secondary effect of ozone use in wastewater
- Odor control may be completed during the disinfection process
- Micro-pollutant removal and eliminates the need to add processes in the treatment stream with future regulations
More Applications:
- Bottle water , domestic water, well water, pool water disinfection & sterilization
- Waster water treatment, industrial waste gas removal, fishfarming water disinfection
- Air treatment & odor control, food processing & storage, laundry, HAVC,grain & feed remediation
- Drinking water treatment, coolong tower sewage treatment, garbage waste gas removal
About Ozone:
1. What is ozone?
Ozone is one of the most powerful oxidants available, destroying bacteria,viruses, mold and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology. Ozone's molecular structure is three oxygen atoms (O3).
2. Will Ozone hurt me?
Once the ozone concentration fails to meet the hygiene and safety standard, we can notice with our sense of smell and dodge away or take actions to avoid further leakage. So far there is no one death reported caused by ozone poisoning.
3. Why is ozone a green technology?
Ozone is a green technology with many environmental benefits. It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs). The only by product created by ozone applications is oxygen which is reabsorbed into the atmosphere. Ozone's ability to disinfect in cold water also saves energy
Shipping:
1. Sample sent by TNT, Fedex, DHL, UPS, EMS. ARAMEX, etc. door to door service2. Batch order: shipped by FCL sea way or by air
3. Customer can also arrange shipment yourself

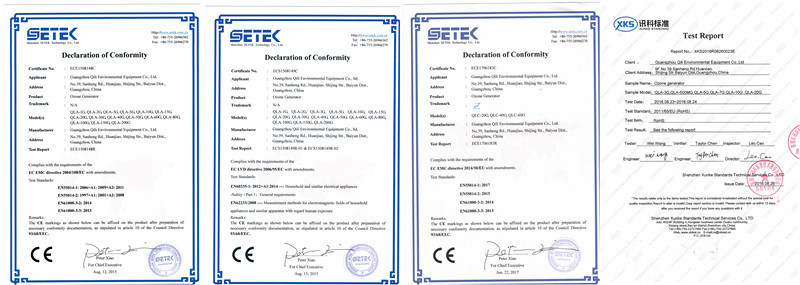

Certificates:
