Product Features
1. Quartz glass tube, corona discharge technology
2. Adjustable ozone output:10-100%
3. Air & water cooled, long service life
4. High conversion efficiency, low energy consumption
5. High grade stainless steel 304 housing, atmospheric and beautiful, durable
6. Clean dry air feeding, high ozone pressure output

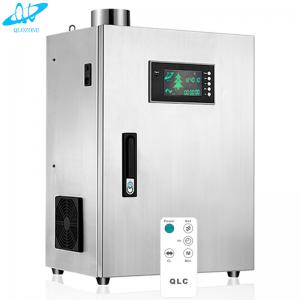

Product Photo
Specification
Item | Unit | QLA-15G | QLA-20G | QLA-30G | QLA-40G |
Ozone output | G/Hr | 15 | 20 | 30 | 40 |
Power | W | 250 | 280 | 350 | 400 |
Voltage | V/Hz | 220-240/50-60 | |||
Concentration | Mg/L | 15-25 | |||
Gas Feeding | / | Air feeding | |||
Dimension | CM | 40*30*62.5 | 40*30*73 | 50*40*85 | |
Net Weight | Kg | 14 | 15 | 20 | 22 |
External Case | / | Stailess steel 304 | |||
Cooling way | / | Air cooling | Water cooling | ||
Item | Unit | QLA-50G | QLA-60G | QLA-80G | QLA-100G |
Ozone Output | G/Hr | 50 | 60 | 80 | 100 |
Power | W | 530 | 680 | 950 | 1040 |
Voltage | V/Hz | 220-240/50-60 | |||
Concentration | Mg/L | 15-25 | |||
Gas feeing | / | Air feeding | |||
Dimension | CM | 50*40*91 | 50*45*110 | ||
Net Weight | Kg | 52 | 55 | 69 | 72 |
External case | / | Stainless steel 304 | |||
Working conditions | / | Up to 85% hunidity,-10~37 degrees | |||
Cooling way | / | Air cooling and Water cooling |
Applications
1. Keep fruits and vegetables fresh in cold room, ozone for grain, seed disinfection
2. Remove smell and odors of sea food factory, slaughtering, poultry and kill bacteria
3. Disinfect production water supply, disinfect water for poultry feeding
4. Surface sanitation, swimming pool and SPA, aquaculture and aquaium water sterilization
5. Cosmetic, mushroom, food processing and storage, pharmaceutical workshop, coolong tower
Ozone Benifits for Fish Farming :
Ozone (O3) is a very effective disinfection agent and can be used in aquaculture/ fish farming to replace chlorine and bromine containing disinfection chemicals.
The advantage of the use of ozone compared to the other water treatment agents is the fact that the water environment will increase dramatically. The use of ozone prevents the formation of chlorine or bromine containing byproducts, like chloramines and trihalomethanes. Ozone will even breakdown already formed unwanted chlorinated byproducts.
Ozone Aquaculture Applications :
Fish farming involves culturing of fish commercially in tanks or enclosures, usually for food. Fish hatcheries and fish farms play an ever increasing role in supplying the world's demand for fish. To effectively supply this demand, fish farms must practice intensive farming techniques where more and more fish are farmed in the same or smaller tank volumes. Of couurse, as the fish density grows so does the risk of infection by water-borne bacteria and viruses.
Because of these problems, some aquaculture operators frequently use strong antibiotic drugs to keep the fish alive (but many fish still die prematurely at rate of up to 30 percent). In some cases, these drugs have entered the environment. Additionally, the residual presence of these operations still use antibiotics, many of which considered to be serious problem to human health as well as for fish farming.
Ozone is the ideal disinfectant for aquaculture because of its ability to kill bacteria and viruses without leaving any residue. Ozone is an effective treatment that:
• Oxidizes organic matter such as fish excrement
• Precipitates dissolved matter
• Allows the micro-flocculation of organic matter
• Destabilizes colloidal particles
• Disinfects the water
Use of Ozone in Aquaculture :
• Removal of fine and colloidal solids
• Removal of dissolved organic compounds
• Removal of Nitrite
• Disinfection
Packing & Shipping
Shipping
♦Sample sent by TNT,FEDEX,DHL,UPS,EMS,ARAMEX,etc.,door to door service;
♦Batch order:shipped by FCL sea way or by air;
♦Customer can also arrange shipment yourself;
♦Express normally takes 3-9 days;sea way takes 25-35 days.
Our Service
♦Accept OEM & ODM order,but there's a MOQ request,details should be negotiated.
♦Logo can be printed.
♦Ozone generator matched equipments can be provided.
♦Solution for air & water treatment provided.
♦Sample is available,more quantity ,more discount .
♦Technical guidance is available.
♦After sales service available.
Company Profile
Invested by HK QEI LIMITED, Guangzhou Qili Environmental Equipment Co., Ltd is a high-tech enterprise located in Guangzhou City China, dedicating in ozone equipment research & development, production and sales. We have a wealth of experience in commercial kitchen oil and odor removal, aquaculture, food processing, cosmetics, HAVC system, waste water treatment, drinking water, industrial odor removal, beverage treatment with ozone equipment. We provide high-quality ozone generator together with completely solutions in order to creat more competing opportunities for our customer.
In the design philosophy of "Green & Eco-friendly" , we make new-generator products in accordance with domestic and international standards. Our main customers are Coca-Cola, Mengniu, Yibao, Rexam Beverage Can South America, United Air Specilists, Speedy Ventilation PTY LTD, subsidiary bodies of the United Nations to assist Afghanistan and other famous enterprises.

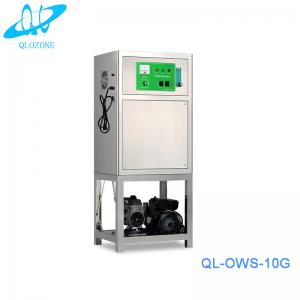

Our main products are: QLA air feeding ozone generator, QLO oxygen feeding ozone generator, QLC ceramic plate ozone generator, QLY series oxygen concentrator, QL-OWS ozone water system.
Ozone gas and water tester, ozone spare parts.
