Pet Bottles Washing Machine/ Washing Plant / Washing Line
******************************************************
Plastic Bottle Washing Machine/Pet flakes Recycling line/water bottle recycling machine
Machine Application:
PET plastic washing line is widely used to treat PET bottle (coke bottles) and scrap PET plastic broken into flakes. It is a crushing, washing, drying line.
PET flakes are mainly used for the fiber production and other related PET products. This PET washing line is high automatic operating and save labor cost and low after maintenance.
With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad. This pet recycling machine could be displayed "L" or "U" shape according clients' workshop.
Machine Technical Characteristics:
1. Final recycled PET flake quality standard:
2. Estimated Plant Paramter:
Machine Process Flow Introduction:
Bottle bales→Bale Opening→Trommel Filtering→Label Removing→Bottle Pre-washing→Bottle Optional sorting→Manual Sorting→Wet Crushing→Floating Washing→Drying→Hot Flotation Washer→Drying→Continuous Friction→Continuous Floating Washing→Drying→Fluid-bed drying→Blending→Label&Dust remover→Metal separation→Flake Optical Sorting→Packing
→Clean Flakes
Machine Main Parts' Function:
1. De-laber
Bottle bale opening
2.Belt conveyor
Put the material on the moving belt, which will convey the bottle into label remover
3. Trommel
Removing rock, stone, dust, loosen caps and small metals, especially, the iron will be removed by high speed
4.Bottle label separator
Removing labels from bottles
5.Manual Select working table
IF the label still in the bottle, worker can remove the label by hand
6.Belt conveyor
Put the material on the moving belt, which will convey the bottle into crusher
7.Crusher
Crush the material.
8.Screw loader
Put the flakes into the Hot washer to clean.
9.Floating washer
Cleaning flakes to remove chemicals and separating out rest labels and caps
10.Hot washer
Connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes waste; label and glue loosen from bottles.
11.Friction washer
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
12.Centrifugal dryer
Rejection the water from the flakes, moisture content is less than 2%
13.Pipe drying system
Hot air drying
14.PVC (label) separator
Used for the PET bottles, round and pressed bottles,effective more than 98%,save energy and labor,without water
15.Storage bunker
Storage materials
Machine packing details:
About our service:
PET Bottle washing line Before-sale
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information
Why choose us:
1. Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: KWELL produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an KWELL recycling machine is 30 days.
Please convenient yourselves by me !!
http://kwellgroup.en.made-in-china.com/
pet bottle recycling line
plastic washing machine
plastic crusher
pet flakes washing machine
pet recycling machine
Pet Bottles Washing Machine/ Washing Plant / Washing Line
******************************************************
Plastic Bottle Washing Machine/Pet flakes Recycling line/water bottle recycling machine
Machine Application:
PET plastic washing line is widely used to treat PET bottle (coke bottles) and scrap PET plastic broken into flakes. It is a crushing, washing, drying line.
PET flakes are mainly used for the fiber production and other related PET products. This PET washing line is high automatic operating and save labor cost and low after maintenance.
With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad. This pet recycling machine could be displayed "L" or "U" shape according clients' workshop.
Machine Technical Characteristics:
1. Final recycled PET flake quality standard:
| Index | Parameter |
| PET flake size | 8~12 mm |
| Moisture | < 1.5 % |
| Viscose | < 20 ppm |
| PP/PE | < 20 ppm |
| Metal | < 20 ppm |
| Other color PET flake | < 30 ppm |
| Label | < 20 ppm |
| PVC | < 30 ppm |
| Total impurities | < 100 ppm |
| PH | neutral |
| Bulk density | 0.3g/cm3 |
2. Estimated Plant Paramter:
| Capacity(kg/h) | Installation Power(kw) | Required Area(m2) | Manpower |
| 500 | 220 | 600 | 8 |
| 1500 | 430 | 800 | 12 |
| 3000 | 650 | 1000 | 18 |
| 6000 | 1000 | 1400 | 30 |

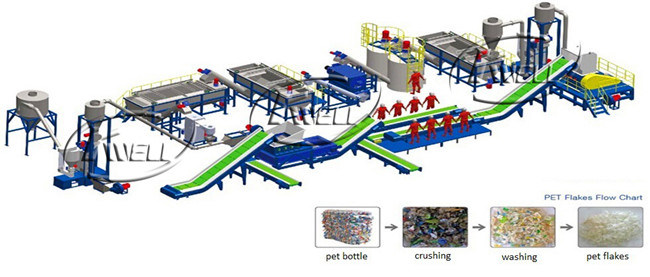

Machine Process Flow Introduction:
Bottle bales→Bale Opening→Trommel Filtering→Label Removing→Bottle Pre-washing→Bottle Optional sorting→Manual Sorting→Wet Crushing→Floating Washing→Drying→Hot Flotation Washer→Drying→Continuous Friction→Continuous Floating Washing→Drying→Fluid-bed drying→Blending→Label&Dust remover→Metal separation→Flake Optical Sorting→Packing
→Clean Flakes
Machine Main Parts' Function:

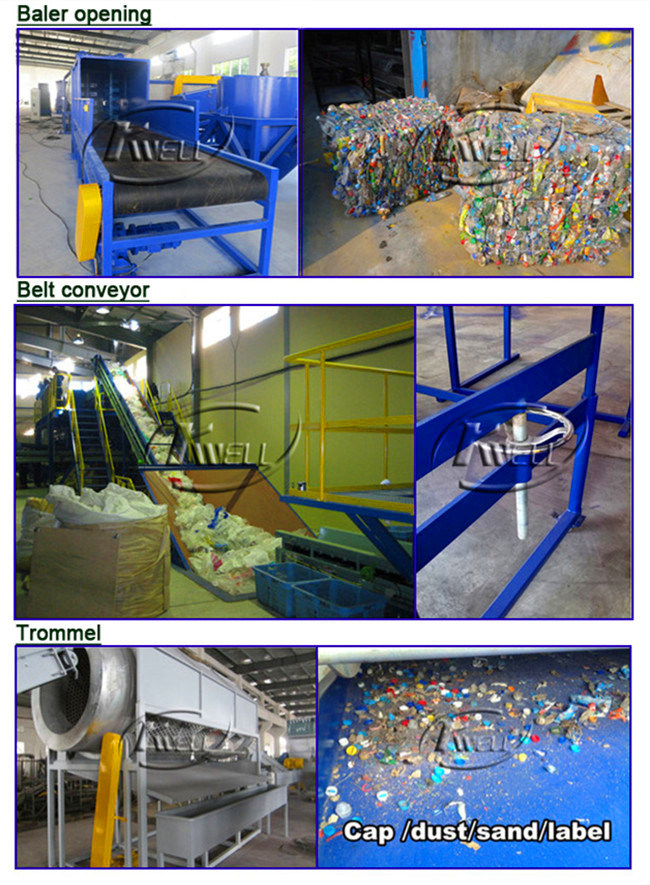

1. De-laber
Bottle bale opening
2.Belt conveyor
Put the material on the moving belt, which will convey the bottle into label remover
3. Trommel
Removing rock, stone, dust, loosen caps and small metals, especially, the iron will be removed by high speed

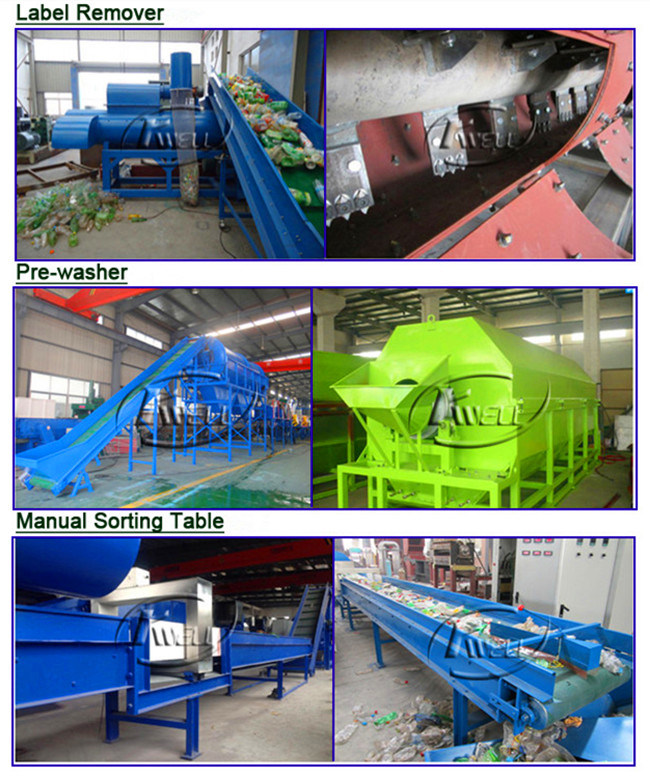

4.Bottle label separator
Removing labels from bottles
5.Manual Select working table
IF the label still in the bottle, worker can remove the label by hand
6.Belt conveyor
Put the material on the moving belt, which will convey the bottle into crusher

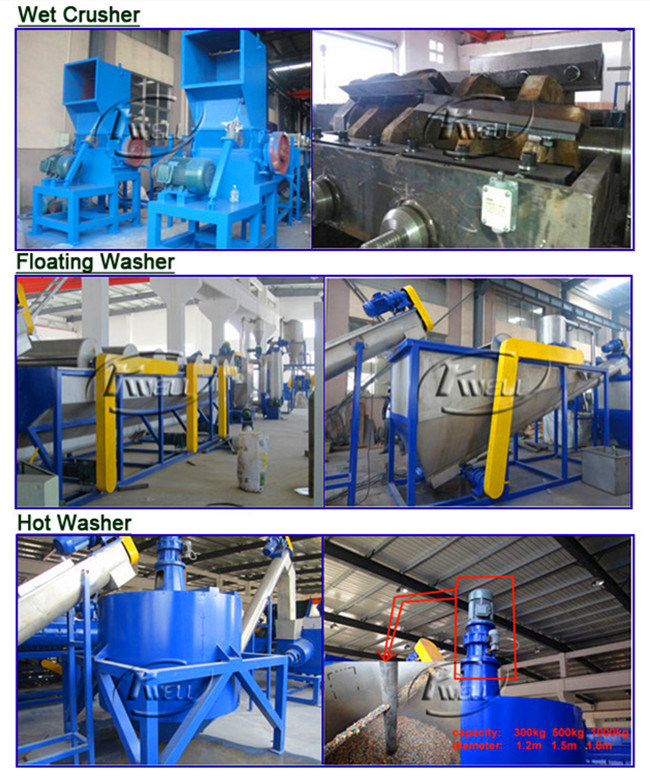

7.Crusher
Crush the material.
8.Screw loader
Put the flakes into the Hot washer to clean.
9.Floating washer
Cleaning flakes to remove chemicals and separating out rest labels and caps
10.Hot washer
Connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes waste; label and glue loosen from bottles.

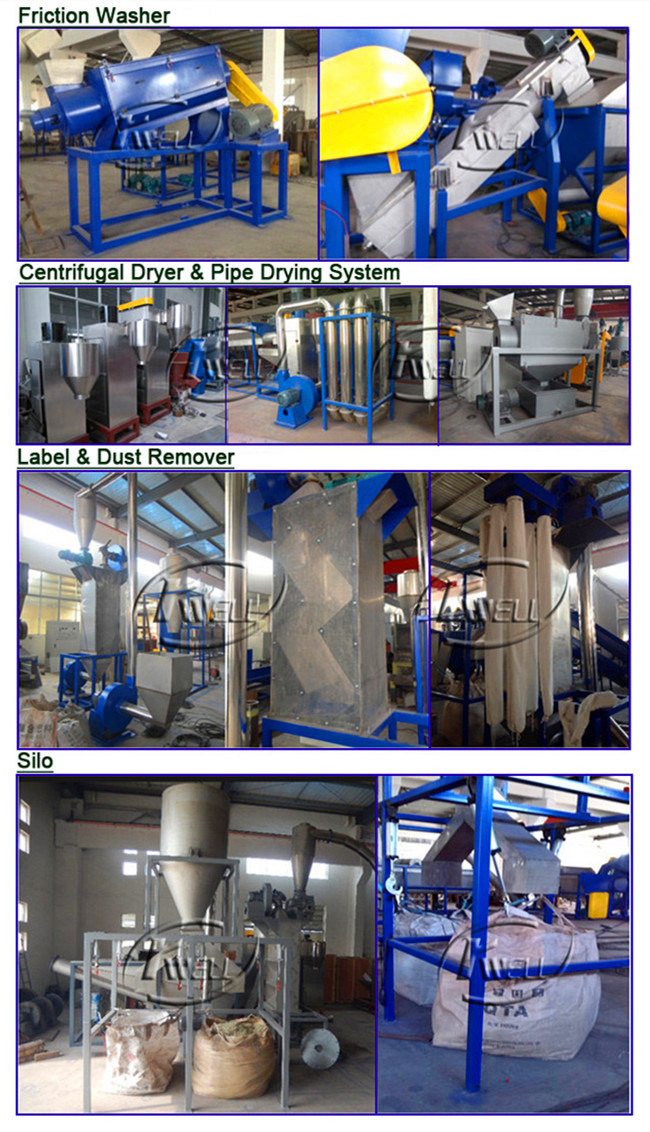

11.Friction washer
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
12.Centrifugal dryer
Rejection the water from the flakes, moisture content is less than 2%
13.Pipe drying system
Hot air drying
14.PVC (label) separator
Used for the PET bottles, round and pressed bottles,effective more than 98%,save energy and labor,without water
15.Storage bunker
Storage materials
Machine packing details:
About our service:
PET Bottle washing line Before-sale
- Introduce products and applications detain
- Recommend suitable solution
- Provide with reference information
- Offer lab for test
- Provide with layout and engineering conditions
- Inform the project processing status
- Offer other documents
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information
Why choose us:
1. Lower investment cost for a high quality and durable machine;
2. Low energy consumption with high production output;
3. Overseas installation and training are available;
4. Machine warranty with spares in stocking and in-time delivery;
5. Fast machine delivery and installation: KWELL produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers. The regular delivery time of an KWELL recycling machine is 30 days.
