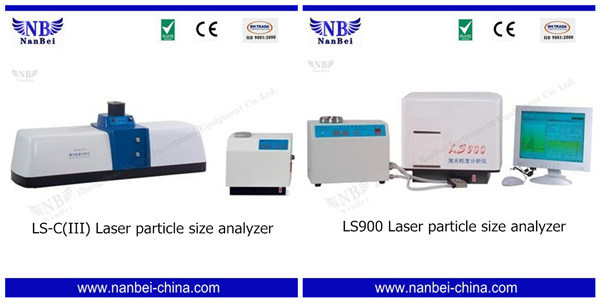

Advanced digital Laser particle size analyzer with ISO APPROVEDLS-C(IIA) Laser particle size analyzer
Details
LS-C(IIA) Dry Dispersion Laser Particle Size Analyzer uses compressed air to disperse the sample, suits for the measurement of samples that can't be dispersed in liquid.
Applications: measure samples that have chemical and physical changes when dispersed in water.
Principle: Uses the principle of laser light scattering to determine particle size distribution. OMEC's instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through OMEC's system integration and optimization for optics, mechanics, electronics and computer.
Report Items: Particle size distribution table, particle size distribution curve, median diameter, Characteristic particle size, width coefficient, SSA, industrial segmented percentage of particles, > 80μm percentage (fineness), other synthesis parameters of particle size , etc.
Parameters
| Model | LS-C(IIA) |
| Measuring Range | 0.2-500μm |
| Sample Feeding | dry dispersion |
| Repeatability | <3% |
| Motor Power of Dry Sample Feeder | 2W, stepless control |
| Measurement Duration | 1-2 minutes |
| Number of Detectors | 40 |
| Light source | Light source: He-Ne, 2Mw, 0.6328μm |
| Environmental Requirement | temperature: 5-35ºC humidity: <85% |
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Easy switch among different types of reports.
3. Auto clear of Electric noise.
4. Sample parameters editing, selecting and saving function.
5. Chinese and English report.
6. Customer size grading function.
7. Multiple ways of selecting "measurement parameters".
8. Multiple document formats.
9. Operating log and measuring log function.
10. Data input function.
11. Statistics of multiple documents.
12. Two distribution models: Rosin-Ramler, multi-wave crest;
13. Two report models: General report, statistics;
14. Two accumulative directions: small to large, large to small;
15. Reports can be exported as Excel format or other text format files;
16. Report items can be set/selected according to customers' requirements.
The Application of Patents and Proprietary Technology
1.Scattered light detection around a sphere surface (DAS)
The large angle detectors are placed in a spherical surface to get accurate focusing of large angle scattered light.
2.Integrated laser emitter
The beam expander and the pinhole filter are integrated in several concentric tubes, and then jointed into one tube with both ends enclosed. It is shock proof, easy to maintain and with stable laser output.
The Structure of LS-C(IIA) Dry Dispersion Laser Particle Size Analyzer
LS-POP (9)
Details
LS-POP (9) is a new cost-effective laser particle size analyzer designed and manufactured by Omec relying on powerful R&D managerial experience from Spectris and combining the market application features of LS-POP(6)- the star product and sales champion at present after Omec joining in UK Spectris plc. It will bring a feeling of freshness to powder industry with higher testing performance.
Applications: Measure the particle size distribution of powder or latex.
Principle: Light is an electromagnetic wave. When light meets with particles on it way of traveling, the interaction between light and particles will result in deviations of part of the light, which is called light scattering. The bigger the scattering angle is, the particle size will be smaller, the smaller the scattering angle is, the particle size will be bigger. The particle analyzer instruments will analysis the particle distribution according to this physical character of the light wave.
Parameters
| Model | LS-POP (9) |
| Theory | Mie scattering |
| Measuring Range | 0.1~750μm |
| Sample Feeding | wet dispersion |
| Repeatability | <1% (standard sample D50) |
| Scan frequency | 1 kHz |
| Measurement Duration | 1-2 minutes |
| Number of Detectors | 49 |
| Light Source | He-Ne laser, 2.0 mW, 0.6328 μm |
| Environmental Requirement | Temperature: 5-35ºC |
| Humidity:<85% | |
| Report Items | Particle size distribution table & graph, Average diameter, Median diameter, SSA, etc. |
| Dimension | 838 * 265 * 295mm(mainframe) |
Feature
Technical features Reliable optical platform
1. Use horizontal straight light path layout, no reflecting prism, light path is stable and reliable.
2. Good designability for base, good consistency of light path.
3. GB/T4857.18 drop test has been passed.
4. Anti-moist ability of laser power module and the stability of electric are better.
5. Modular construction design, maintenance is more convenient.
6. The testing performance for small particles is improved.
7. The all-in-one housing design, it's dust-protected and water-proof.
Schematic diagram of optical path
1. Totally enclosed design of light path system, dust pollution and external light pollution can be prevented.
2. Light path adopts lens back Fourier transform structure.
3. Optical source adopts He-Ne laser emitter which owns better monochromaticity, high coherence, small divergence angle and good stability compared to other laser emitters,
we also adopt the patent design of integrated laser emitter(patent no.: 00228952.0) which reduces heat distortion of laser tube and external mechanical vibration.
4. For laser emitter, except for traditional detection of output power value, we add the stability test of output power.
5. Smoothing processing technology is used to reduce the impact of power fluctuation to measurement.
6. Constant current limit and filling process of laser tube are used to reduce the flash frequency to the minimum.
7. Backward detector is added, the lower limit of measurement is extended to 0.1micron.
8. Spatial filter is fixed by powerful permanent magnet, the pinhole is not easy to shift under the disturbance of external force, so the stability of the optical path has been greatly improved. Besides, the new designed spatial filter eliminates the laser diffraction ring more effectively, the light background of the instrument is lower, optical energy data is more accurate, it is helpful to improve the testing capability for large particles.
9. Detector array adopts unique scattered light detection around a sphere surface (DAS) (patent no.: 95223756.3), the large angle detectors are placed in a spherical surface to get accurate focus of the large angle scattered light.
Advanced data collection and processing technology
1.New designed data collecting board uses 32 bit CPU from famous chip design company-ARM,the CPU has the advantages of high-effective signal processing capacity and low power
consumption.
2.Using 8-channel simultaneous sampling to sample 16 bit ADC, the sampling frequency of frame data can reach 1 kHz.
3.Using 64-channel simultaneous sampling technology and sample & hold switch with ultralow leakage current, the full scale accuracy can reach 0.15%.
4.Easy to update the firmware and layout data, more convenient for maintenance and operation
5.Offset function of electric background, it can help to get more accurate optical energy data.
Function
Friendly & practical software Functions:
1. SOP standardization operating procedure function, analysis & testing process standardization
2. Multiple distribution models:Rosin-Ramler mode, general mode, enhanced mode, Single mode
3. Two report models:General purpose, statistics
4. Two accumulative directions: small to large, large to small
5. Reports in two languages:Chinese, English
6. Data input function
7. Reports can be exported as Word, Excel format or other text format files
8. Multiple reports can be opened at the same time, easy to compare among reports
9. Report items can be set/ selected according to customers' requirements, also can be set as fixed report format.
10. Users can define refractive index parameters by themselves, including real part and imaginary part (correspond to the absorption of sample)
11. Automatic clear of electric background
Attachment: test report of LS-POP (9)
The Application of Patents and Proprietary Technology
1.Scattered light detection around a sphere surface (DAS)
The large angle detectors are placed in a spherical surface to get accurate focusing of large angle scattered light.
2.Integrated laser emitter
The beam expander and the pinhole filter are integrated in several concentric tubes, and then jointed into one tube with both ends enclosed. It is shock proof, easy to maintain and with stable laser output.
LS-POP(6)
Details
LS-POP (6) is OMEC's Basic product, the actual measurement range has reached domestic advanced level, it is a cost effective laser particle size analyzer.
Application: measure the particle distribution of the powder and latex
Principle: Using the phenomenon of light scattering of particle, according to the distribution of scattering light energy, to calculate the size distribution of particles measured. OMEC's instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through OMEC's system integration and optimization for optics, mechanics, electronics and computer.
Report Items: Particle size distribution table, particle size distribution curve, average particle size, median diameter, specific surface area, etc.
Parameters
| Model | LS-POP (6) |
| Measuring Range | 0.2~500μm |
| Sample Feeding | wet dispersion,circulating sample feeder & static sample cell |
| Repeatability | <3% |
| Scan frequency | 1000times/second |
| Pump: | 10m, max speed: 2800rpm, 10L/min. |
| Measurement Duration: | 1-2 minutes |
| Number of Detectors: | 43 |
| Light Source | He-Ne laser,2.0 mW,0.6328 μm |
| Environmental Requirement | Temperature: 5-35ºC |
| Humidity:<85% |
1.Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as "reversal" or "converging light") Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
2.Use integrative laser emitter (patent no.: 00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument.
3.Wet sample feeding system adopts booster pump, top speed can reach 2800 rpm, can effectively realize the circulation of large particles.
4.Inlet and outlet water solenoid valve adopts Germany Baode imported products, precision control action, durable.
5.Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
6.Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.
Software Function:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Easy switch among different types of reports.
3. Auto clear of Electric noise.
4. Sample parameters editing, selecting and saving function.
5. Chinese and English report.
6. Customer size grading function.
7. Multiple ways of selecting "measurement parameters".
8. Multiple document formats.
9. Operating log and measuring log function.
10. Data input function.
11. Statistics of multiple documents.
12. Two distribution models :Rosin-Ramler, multi-wave crest;
13. Two report models: General report, statistics;
14. Two accumulative directions: small to large, large to small;
15. Reports can be exported as Excel format or other text format files;
16. Report items can be set/selected according to customers' requirements.
Easysizer20
Details
Easysizer20 is the latest product of OMEC in Year 2006 and is highly automated, all the process can be done automatically after setting up initial parameters. Multiple sample feeding systems are available to meet your requirements.
Applications:Measure the particle size distribution of powder or latex
Principle:Use the principle of laser light scattering to determine particle size distribution.
Parameters
| Model | Easysizer20 |
| Measuring Range | 0.1~500μm |
| Sample | wet dispersion |
| Repeatability | <3%(for monodisperse particles) |
| Accuracy of stepper motor | 0.5 micron |
| Pump | 200w, max speed: 5000rpm |
| Measurement Duration | 2-3 minutes |
| Number of Detectors | 54 |
| Light source | He-Ne, 2Mw, 0.6328μm |
| Environmental Requirement | Temperature:5-35ºC,humidity:<85% |
1.Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as "reversal" or "converging light") Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
2.Use integrative laser emitter (patent no.:00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument.
3.Wet sample feeding system adopts booster pump, top speed can reach 2800 rpm, can effectively realize the circulation of large particles.
4.Inlet and outlet water solenoid valve adopts Germany Baode imported products, precision control action, durable.
5.Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
6.Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.
Software functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Automatic Search of communication port
3. Automatic & manual measurement of full compatible operation display.
4. Easy switch among different types of reports.
5. Repair damaged photocell by software
6. Auto clear of Electric noise.
7. Sample parameters editing, selecting and saving function.
8. Chinese and English report.
9. Customer size grading function.
10. Free switch of control software between simulation model and control measurement.
11. Dynamic display of all test process by process bar.
12. Password protection for key information.
13. Multiple ways of selecting "measurement parameters".
14. Multiple document formats.
15. Operating log and measuring log function.
16. Data input function.
17. Reports can be exported as Word, Excel format or other text format files;
18. Statistics of multiple documents.
19. Two distribution models: Rosin-Ramler, multi-wave crest;
20. Two report models: General report, statistics;
21. Two accumulative directions: small to large, large to small;
22. Single step adjustment
23. Single step control of the sample feeder
24. Safety password function
LS900 Laser particle size analyzer
Details
LS900 Laser Particle Size Analyzer is specially designed for high schools and labs, its lower limit of measuring range reaches submicron.
Applications: Measure the particle size distribution of powder or latex.
Principle: Uses the principle of laser light scattering to determine particle size distribution. OMEC's instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through OMEC's system integration and optimization for optics, mechanics, electronics and computer.
Report Items: Particle size distribution table, particle size distribution curve, average diameter, median diameter, SSA, etc.
Parameters
| Model | LS900 |
| Measuring Range | 0.05~500μm |
| Sample Feeding | wet dispersion,circulating sample feeder & static sample cell |
| Repeatability | <3% |
| Pump | 200w, max speed: 2800rpm |
| Measurement Duration | 1-2 minutes |
| Number of Detectors | 53 |
| Light Source | He-Ne laser, 2.0 mW,0.6328 μm |
| Environmental Requirement | Temperature: 5-35ºC Humidity: <85% |
Features:
1.Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as "reversal" or "converging light") Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
2.Use integrative laser emitter (patent no.:00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument.
3.Back scattering light receiving technology makes the lower limit to 0.1 micron, scattered light detection in two mutually perpendicular planes(patent no.: 1249644.8), This can significantly reduce the scattered light intensity fluctuations, can overcome the decline of the accuracy of small particles measurement caused by the competition of polarization mode, to ensure that the measuring lower limit to 0.05 micron
4.Wet sample feeding system adopts booster pump, top speed can reach 2800 rpm, can effectively realize the circulation of large particles.
Inlet and outlet water solenoid valve adopts Germany Baode imported products, precision control action, durable.
5.Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
6.Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.
Software Functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Easy switch among different types of reports.
3. Auto clear of Electric noise.
4. Sample parameters editing, selecting and saving function.
5. Chinese and English report.
6. Customer size grading function.
7. Multiple ways of selecting "measurement parameters".
8. Multiple document formats.
9. Operating log and measuring log function.
10. Data input function.
11. Statistics of multiple documents.
12. Two distribution models :Rosin-Ramler, multi-wave crest;
13. Two report models: General report, statistics;
14. Two accumulative directions: small to large, large to small;
15. Reports can be exported as Excel format or other text format files;
LS-C(III) Laser particle size analyzer
Details
LS-C(III) Dry & Wet Dispersion Particle Size Analyzer
Application: The dry dispersion mode can be used to measure the samples that can't be dispersed in liquid but in air, the wet dispersion mode can be used to measure the samples dispersed in liquid.
Principle: Uses the principle of laser light scattering to determine particle size distribution. OMEC's instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through OMEC's system integration and optimization for optics, mechanics, electronics and computer.
Report Items: Particle size distribution table, particle size distribution curve, median diameter, Characteristic particle size, width coefficient, SSA, industrial segmented percentage of particles, > 80μm percentage (fineness), other synthesis parameters of particle size , etc.
Parameters
| Model | LS-C(III) |
| Measuring Range | 0.1-1000μm |
| Sample Feeding | dry and wet dispersion |
| Repeatability | <3% |
| Accuracy of Stepper Motor | 0.5μm |
| Pump | 200W, max speed: 5000rpm |
| Motor Power of Dry Sampling System | 2W, stepless control |
| Measurement Duration | 1-2minutes |
| Number of Detectors | 54 |
| Light Source | He-Ne lase, 2.0 Mw, 0.6328 μm |
| Environmental Requirement | Temperature: 5-35ºC |
| Humidity: <85% |
1.Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as "reversal" or "converging light") Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
2.Use integrative laser emitter (patent no.:00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument. Stepper accuracy of automatic centering system can reach 0.5 micron, the user's operation is more convenient
3.Wet sample feeding system adopts booster pump, top speed can reach 5000 rpm, can effectively realize the circulation of large particles.
4.Vibration motor of dry sample feeder system is adjustable, to realize effective control of beam obstructions
5.Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
6.Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.
Software functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Automatic Search of communication port
3. Automatic & manual measurement of full compatible operation display.
4. Easy switch among different types of reports.
5. Repair damaged photocell by software
6. Auto clear of Electric noise.
7. Sample parameters editing, selecting and saving function.
8. Chinese and English report.
9. Customer size grading function.
10. Free switch of control software between simulation model and control measurement.
11. Dynamic display of all test process by process bar.
12. Password protection for key information.
13. Multiple ways of selecting "measurement parameters".
14. Multiple document formats.
15. Operating log and measuring log function.
16. Data input function.
17. Reports can be exported as Word, Excel format or other text format files;
18. Statistics of multiple documents.
19. Two distribution models: Rosin-Ramler, multi-wave crest;
20. Two report models: General report, statistics;
21. Two accumulative directions: small to large, large to small;
22. Single step adjustment
23. Single step control of the sample feeder
24. Safety password function
LS-CWM Laser particle size analyzer
Details
LS-CWM Laser particle size analyzer is specially designed for measuring samples with broad size distribution, customized products are available.
Applications: Measure the particle size distribution of powders with broad size distribution, such as sea mud, coal water slurry, soil, etc.
Principle: Uses the principle of laser light scattering to determine particle size distribution.OMEC's instruments own the advantages of wide measurement range, good repeatability
Parameters
| Model | LS-CWM |
| Measuring Range | 0.5-1500μm |
| Sample Feeding | wet dispersion |
| Repeatability | <3% |
| Pump | 10m, max speed: 2800rpm (equipped with other type according to sample) |
| Measurement Duration | Measurement Duration: 2-3 minutes |
| Number of Detectors | Number of Detectors: 40 |
| Light Source | He-Ne laser, 2.0 mW, 0.6328 μm |
| Environmental Requirement | Temperature:5-35ºC,Humidity:<85% |
1. High speed centrifugal pump ensures the suspension of coarse particles.
2. Multiple circulating sample feeding systems available.
3. Customized products available.
Software Functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Easy switch among different types of reports.
3. Auto clear of Electric noise.
4. Sample parameters editing, selecting and saving function.
5. Chinese and English report.
6. Customer size grading function.
7. Multiple ways of selecting "measurement parameters".
8. Multiple document formats.
9. Operating log and measuring log function.
10. Data input function.
11. Statistics of multiple documents.
12. Two distribution models :Rosin-Ramler, multi-wave crest;
13. Two report models: General report, statistics;
14. Two accumulative directions: small to large, large to small;
15. Reports can be exported as Excel format or other text format files;
16. Report items can be set/selected according to customers' requirements.
DP-02 Laser particle size analyzer
Details
DP-02 is specially designed to measure fog drops, and its structure can be changed according to site requirements
Applications: Measure fog drops.
Principle: Uses the principle of laser light scattering to determine particle size distribution.
Report Items: Particle size distribution table, particle size distribution curve, average diameter, median diameter, SSA, etc.
Features:
1. Specially designed for the measurement of spray, the structure of the instrument can be changed according to requirements.
2. Multiple Fourier lens with different focus distances are available for change to get different measuring ranges.
Parameters
| Model | DP-02 |
| Measuring Range | 1-1500μm |
| Repeatability | < 3% |
| Measurement Duration | 1-2 minutes |
| Number of Detectors | 32 |
| Light source | He-Ne,2mW,0.6328μm |
| Environmental Requirement | temperature: 5-35ºC humidity: <85% |
Contact Person
Ms.Angelina Wang
Mobile:0086-15890668062/0086-15136169519
Please feel free call me and email me.
We do not just sell equipment,we pay more attention to provide users with high quality service!
China
