Product Description
Sprial Type Sludge Dewatering Equipment is our main product. It is a new kind of solid-liquid separation technology by adopting multi-disk structure. Low rotation speed, energy-saving, non-clogging design, easy to operate, all these advantages make this dewatering press more and more popular around the world. And it can work 24h automatically, it saves labor cost. Compact and smart design saves the construction cost. Easy to maintain saves your maintenance cost.
Technical Parameters
| Model | DS Process Capacity | Sludge Volume | |||||
| Concentration | 2000mg/L | 5000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | |
| XF101 | 3~5kg/h | ~1.5m³/h | ~0.6m³/h | ~0.5m³/h | ~0.25m³/h | ~0.2m³/h | ~0.1m³/h |
| XF131 | 6~10kg/h | ~3m³/h | ~1.2m³/h | ~1m³/h | ~0.5m³/h | ~0.4m³/h | ~0.2m³/h |
| XF132 | 12~20kg/h | ~6m³/h | ~2.4m³/h | ~2m³/h | ~1m³/h | ~0.8m³/h | ~0.4m³/h |
| XF202 | 18~30kg/h | ~9m³/h | ~3.6m³/h | 3m³/h | ~1.5m³/h | ~1.2m³/h | ~0.6m³/h |
| XF301 | 30~50kg/h | ~15m³/h | ~6m³/h | ~5m³/h | ~2.5m³/h | ~2m³/h | ~1m³/h |
| XF302 | 60~100kg/h | ~30m³/h | ~12m³/h | ~10m³/h | ~5m³/h | ~4m³/h | ~2m³/h |
| XF303 | 90~150kg/h | ~45m³/h | ~18m³/h | ~15m³/h | ~7.5m³/h | ~6m³/h | ~3m³/h |
| XF352 | 120~200kg/h | ~60m³/h | ~24m³/h | ~20m³/h | ~10m³/h | ~8m³/h | ~4m³/h |
| XF353 | 180~300kg/h | ~90m³/h | ~36m³/h | ~30m³/h | ~15m³/h | ~12m³/h | ~6m³/h |
| XF403 | 270~450kg/h | ~135m³/h | ~54m³/h | ~45m³/h | ~22m³/h | ~18m³/h | ~9m³/h |
| XF404 | 360~600kg/h | ~180m³/h | ~72m³/h | ~60m³/h | ~30m³/h | ~24m³/h | ~12m³/h |
| Model | Screw Shaft Specification | Distance from the sludge cake outlet to the ground(mm) | Dimension(mm) | N.W.(kg) | Process Weight (kg) | ||
| L | W | H | |||||
| XF101 | φ100×1 | 215 | 1816 | 756 | 1040 | 190 | 280 |
| XF131 | φ130×1 | 250 | 1969 | 756 | 1040 | 205 | 300 |
| XF132 | φ130×2 | 250 | 2069 | 910 | 1040 | 275 | 420 |
| XF202 | φ200×2 | 350 | 2500 | 935 | 1270 | 470 | 680 |
| XF301 | φ300×1 | 495 | 3255 | 985 | 1600 | 820 | 1230 |
| XF302 | φ300×2 | 495 | 3455 | 1295 | 1600 | 1350 | 2050 |
| XF303 | φ300×3 | 495 | 3650 | 1690 | 1600 | 1820 | 2810 |
| XF352 | φ350×2 | 585 | 4140 | 1550 | 2250 | 2450 | 3400 |
| XF353 | φ350×3 | 585 | 4420 | 2100 | 2250 | 3350 | 4850 |
| XF403 | φ400×3 | 800 | 5150 | 2350 | 2550 | 4350 | 6400 |
| XF404 | φ400×4 | 800 | 5350 | 2850 | 2550 | 5250 | 8500 |

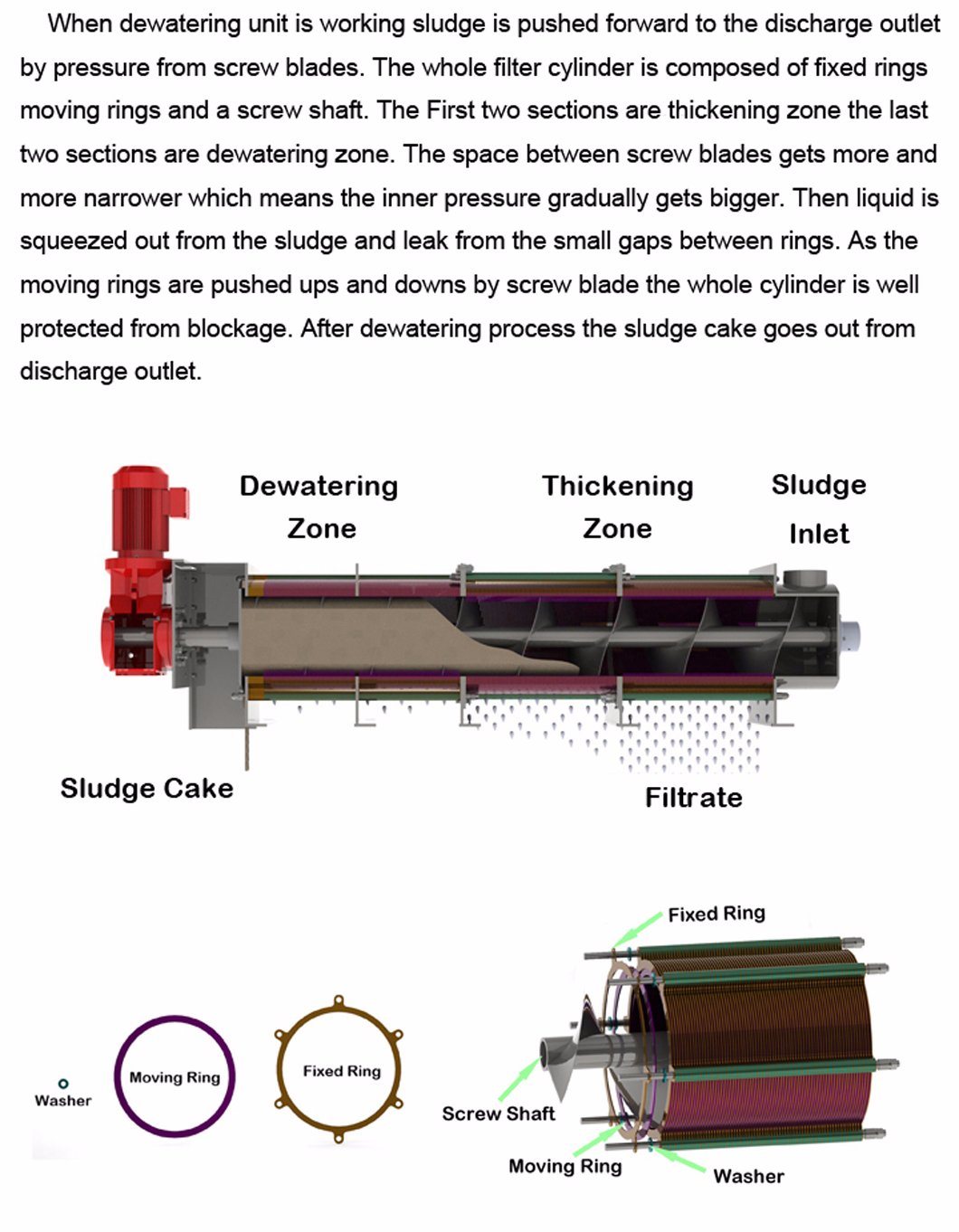

Working principle

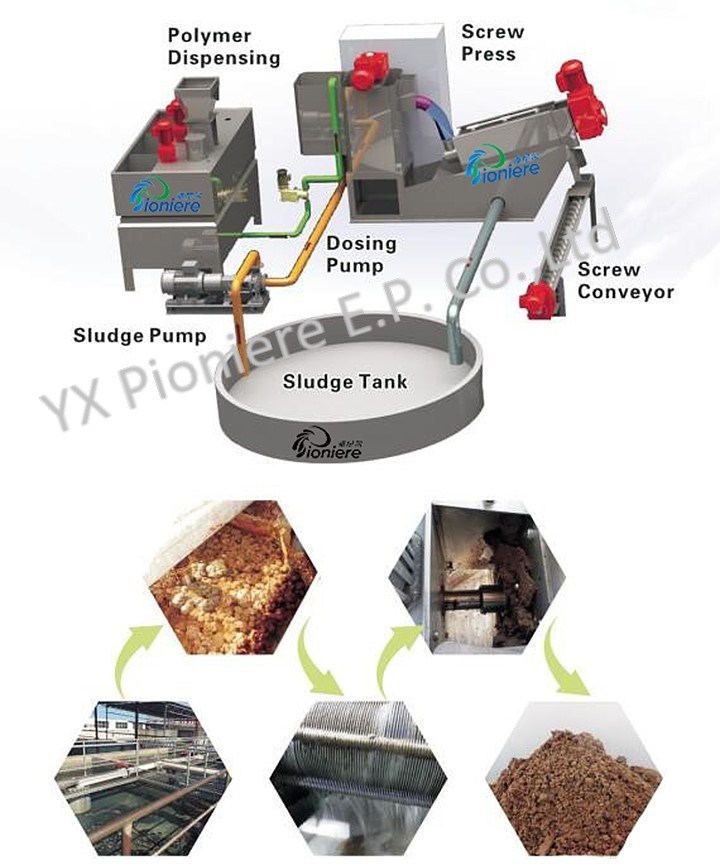

Technical process
Key features
1. Widely applied in municipal sewage, industries of food, beverage, chemical, leather, petro-refining, printing&dyeing, papermaking, pharmacy.
2. Simple technological process, high-efficiency & energy-saving, low system investment.
3. Pre-programmed system makes operation easy and convenient.
4. Unique polymer dosing gets better dewatering effect.
Advantages
Low operation cost
40% of Belt Press, 20% of Decanter Centrifugal
Power-saving
5% of Decanter Centrifugal
Water-saving
0.1% of Belt Press
Polymer-saving
Save 60% polymer in average
Compact Design
Save space and 60% construction cost
Non-clogging Design
Handle oily sludge easily
Certificate
