Product Description:
Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pionere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Product Details:
Working Principle:
Selection Reference:
Application:
Advantages:
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance
Process Diagram:
Cases:
Remarks:
♦ Model selection: Sludge type, sludge volume, solid content and daily runtime of machine are necessary.
♦ Raw material: is SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Manufacturer: We have our own workshop so that best quality and loweat price can be provided for you.
♦ Corollary equipments: Sludge pump and polymer dosing pump are used together with screw press.
♦ Customization: Custom-made is available.
About us:
Yixing Pioniere, established in 2012, is specialized in manufacturing, developing and marketing of multi-disc sludge dewatering equipment and related wastewater treatment system. With the spirit "High Quality, Fast Service", and against strong technical force, sophisticated equipment, prompt and comprehensive service, we believe we can be your best long-term cooperator.
Contact Us:
YEW
Tel:(86)0510-88568099
Product Description:
Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pionere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.

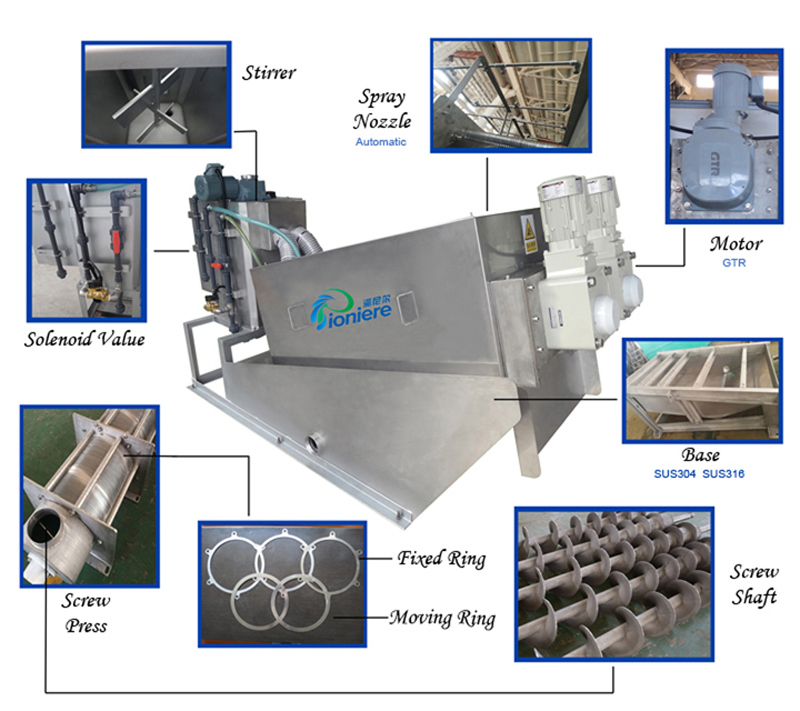

Product Details:
Working Principle:

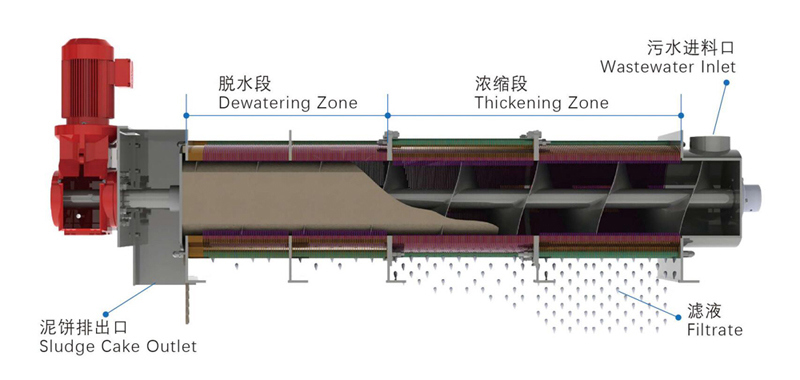

As equipment starts running, sludge flows into the filter cylinder and moves forward to sludge cake outlet under the thrust from screwshaft. The whole filter cylinder is composed of fixed rings, moving rings and shaft. The first two sections are thickening zone, last two are dewatering zone, The space between screw blades gets more and more narrower, which means the inner pressure gradually gets bigger. Under this pressure, liquid is squeezed out from the sludge and leaks from the small gaps between rings. And the left dry solid is pushed to the sludge cake outlet.
Selection Reference:
| Model No. | DS standard capacity (kg/h) | Sludge Volume (m³/h) | ||||||
| Concentration Low~High | 2000mg/L | 5000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | ||
| XF 101 | 3 | 5 | ~1.5 | ~0.6 | ~0.5 | ~0.25 | ~0.2 | ~0.1 |
| XF 131 | 6 | 10 | ~3 | ~1.2 | ~1 | ~0.5 | ~0.4 | ~0.2 |
| XF 132 | 12 | 20 | ~6 | ~2.4 | ~2 | ~1 | ~0.8 | ~0.4 |
| XF 202 | 18 | 30 | ~9 | ~3.6 | ~3 | ~1.5 | ~1.2 | ~0.6 |
| XF 301 | 30 | 50 | ~15 | ~6 | ~5 | ~2.5 | ~2 | ~1 |
| XF 302 | 60 | 100 | ~30 | ~12 | ~10 | ~5 | ~4 | ~2 |
| XF 303 | 90 | 150 | ~45 | ~18 | ~15 | ~7.5 | ~6 | ~3 |
| XF 352 | 120 | 200 | ~60 | ~24 | ~20 | ~10 | ~8 | ~4 |
| XF 353 | 180 | 300 | ~90 | ~36 | ~30 | ~15 | ~12 | ~6 |
| XF 403 | 270 | 450 | ~135 | ~54 | ~45 | ~22 | ~18 | ~9 |
| XF 404 | 360 | 600 | ~180 | ~72 | ~60 | ~30 | ~24 | ~12 |
Model No. | Dimension (mm) | Power (kw) | N.W. (kg) | ||
| L | W | H | |||
| XF 101 | 1816 | 756 | 1040 | 0.2 | 190 |
| XF 131 | 1969 | 756 | 1040 | 0.2 | 205 |
| XF 132 | 2069 | 910 | 1040 | 0.3 | 275 |
| XF 202 | 2500 | 935 | 1270 | 0.8 | 470 |
| XF 301 | 3255 | 985 | 1600 | 0.8 | 820 |
| XF 302 | 3455 | 1295 | 1600 | 1.2 | 1350 |
| XF 303 | 3605 | 1690 | 1600 | 1.95 | 1820 |
| XF 352 | 4140 | 1550 | 2250 | 3.75 | 2450 |
| XF 353 | 4420 | 2100 | 2250 | 6.0 | 3350 |
| XF 403 | 5150 | 2350 | 2250 | 6.0 | 4950 |
| XF 404 | 5350 | 2850 | 2550 | 8.2 | 5250 |
Application:
Advantages:
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance

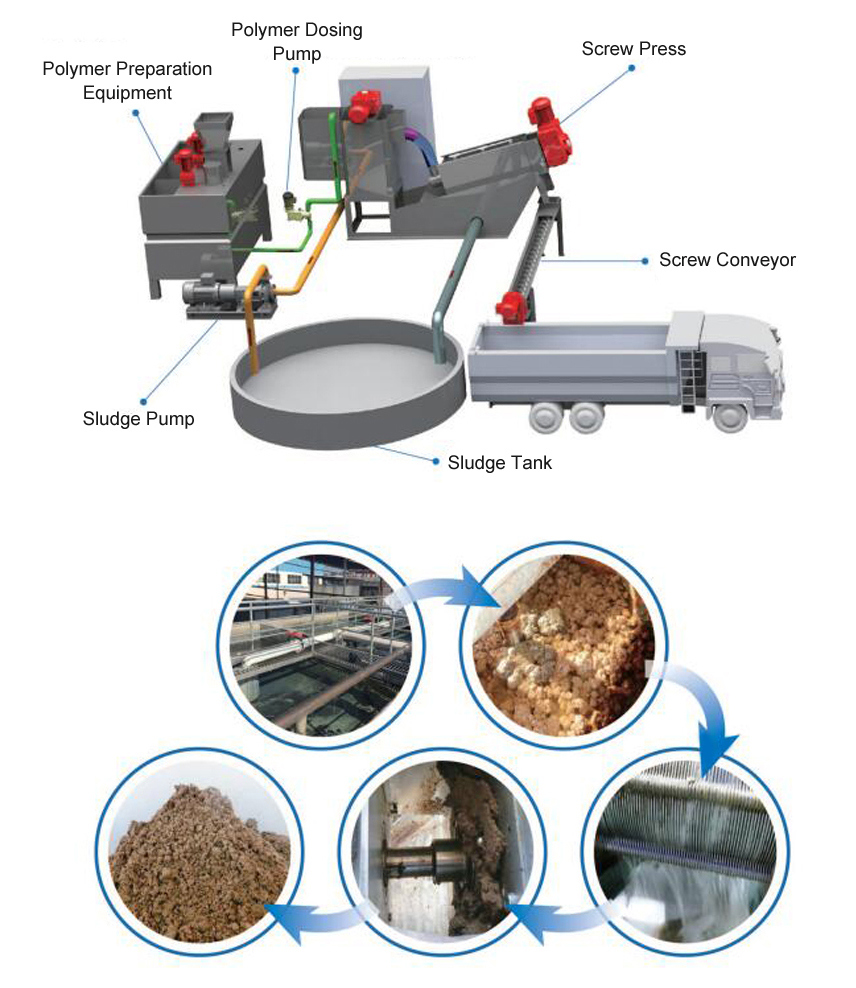

Process Diagram:
Cases:
Remarks:
♦ Model selection: Sludge type, sludge volume, solid content and daily runtime of machine are necessary.
♦ Raw material: is SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Manufacturer: We have our own workshop so that best quality and loweat price can be provided for you.
♦ Corollary equipments: Sludge pump and polymer dosing pump are used together with screw press.
♦ Customization: Custom-made is available.
