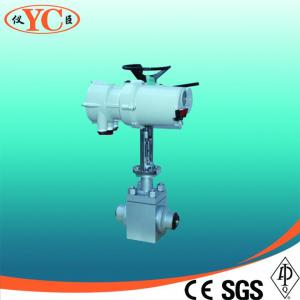

Electric High Pressure and Hightemperature Steam Control Valve

Electric high pressure and high temperature steam control valve''HIGH PRESSURE DESIGNThe cage guided single seat control valve is used for high pressure and high temperature working condition of steam and water purpose. It is assembled with pre

Technical Feature

Shanghai, China

10000/Month

T/T

Control Valve

1/2" ~ 20"

Plywood Case

Send Standard Inquiry

Add Inquiry List

$5~100

PRIMARY PARAMETERS

Model NO.

ZRHMu00a0

HS Code

8481804090

DETAIL DESCRIPTION

Electric high pressure and high temperature steam control valve Electric High Pressure and Hightemperature Steam Control Valve '
'

HIGH PRESSURE DESIGN
The cage guided single seat control valve is used for high pressure and high temperature working condition of steam and water purpose. It is assembled with pressure sealed forged body and trim of anti-cavitation design, processed with high grade alloy steel, which offers the effective solution to high pressure drop conditions. The cooperation between cage and trim ensures the more accurate adjusting performance and very tight sealing under extreme steam conditions.
BASIC DESIGN
*Available sizes: DN15(3/4") up to DN200(8")
Available rating: PN40 to PN100, Class 300# to 2500#
*Flow Characteristics: Linear, Equal Percentage
*Leakage Level: ANSI B16.104 CL IV
*Rangeability: 50:1
*Temperature Range: -20~485 DegreeC
*Connection: Flange, Butt Weld

FAQ
1.Q: What is your main market?
A: Our main market is North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe.
2.Q: Are there products standard?
A: Our model is standard, if you have specific demand, pls tell us.
3.Q: Do you have interest to do our own design items?
A: Absolutely! It's our pleasure.

Our Services

1)Our advantage:
We are the manufacturer with almost 20 years experience on valves. Best price,quality and service, Also we can control the production status. Shanghai YI CHEN team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose SHANG HAI YI CHEN , we are always ready!
