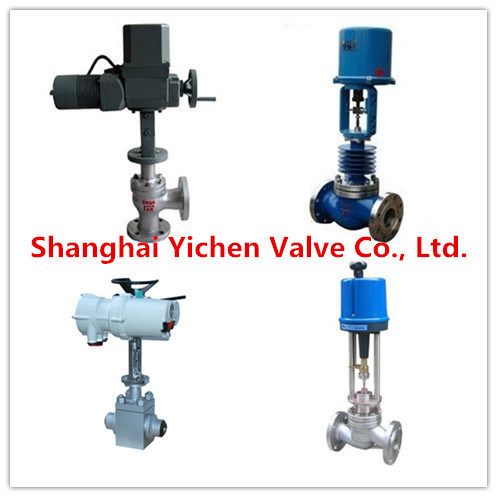

High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)

ZJHM high pressure and high temperature steam pneumatic control valveProduct DescriptionThe Series 100C Single seated cage guided control valve with large Cv value,and dynamic stability is suitable to a variety of heavy duty services. Thi

Technical Feature

  • Shanghai, China
  • 10000/Month
  • L/C, T/T, Western Union, Paypal
  • CE, ISO9001
  • Standard
  • Pneumatic
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~100

PRIMARY PARAMETERS

Model NO.
ZJHM
Trademark
YI CHEN
Specification
CE API ISO
Origin
China
HS Code
8481804090

DETAIL DESCRIPTION

High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)
High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)
High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)
High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)

High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)
High Pressure and High Temperature Steam Pneumatic Control Valve (ZJHM)
ZJHM high pressure and high temperature steam pneumatic control valve

Product Description

The Series 100C Single seated cage guided control valve with large Cv value,and dynamic stability is suitable to a variety of heavy duty services.

 This series is characterized by pressure balanced type trim for very high pressure drops.For those severe fluid conditons that can't be covered by this series,pls select multi-hole type or low-noise labrinth control valve.

 Standard Specifications:

Series :100C

Body Size:1.5B~12B(DN40~DN300)
Body Ratings: ANSI 150#,300#,600#,(900~2500#)
                           JIS 10K,20K,30K,40K,(63K)

                           JB/T79-94 PN1.6,PN4.0,PN6.3,PN10

Characteristics:Equal%,Linear
Rangeability:50:1
Temperature: -196~+565ºC
Leakage:Metal SeatedANSI CLASS IV,V
                 SoftedSeatedANSI CLASS VI


Characteristics:

1.Large Cv and large rangeability,Good Dynamic Stability,Suitable to hard controls of fluids

2.Pressure Balance Plug Type, Suitable to the controls of high-pressure fluids.
3.Adopt Imported Balance Seal,improved the Seat.
4.Trim form is easy for disassembly,reassembly, exchange and maintence.
5.Fine-Extension Type Bonnet    -         For Middle-High Temp(+230~+565ºC)

                                                                       For Low Temp(-45 ~ +5ºC)

Extra-long-Extension Type Bonnet   -   For Low Temp(-100~-45ºC)

Long-Extension Type Bonnet   -      For Low Temp(-196 ~ -100ºC)

  • FAQ
  • 1.Q: What is your main market?
  • A: Our main market is North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe.
  • 2.Q: Are there products standard?
  • A: Our model is standard, if you have specific demand, pls tell us.
  • 3.Q: Do you have interest to do our own design items?
  •  A: Absolutely! It's our pleasure.
Our Services

1)Our advantage:
We are the manufacturer with almost 20 years experience on valves. Best price,quality and service, Also we can control the production status. Shanghai YI CHEN team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.

2)Terms of payment: T/T, L/C, Western union.

3)Shipment: average 20-25days after receiving deposit.

4)Delivery:  Shanghai/Ningbo ,by sea or air.

5)Gurantee: One year since delivery.

6)Inspection: 100% testing for all the valves.

7) All kinds of CERTIFICATE OF ORIGIN.

Welcome to choose SHANG HAI YI CHEN , we are always ready!
