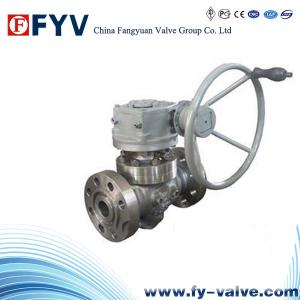

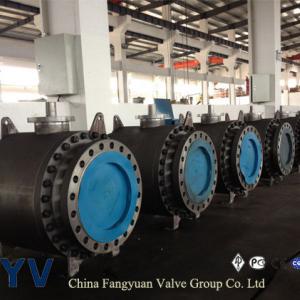

API 6D Forged/Cast Steel Top Entry Trunnion Ball Valve

Ball valves: Top-Entry Ball ValveMAIN FEATURES:The top-entry ball valve is designed as an integrated valve body. Its support and ball rod fixed by an upper-assembled pivot and an integrated pivot respectively and the integrated high-strength ball rod

Technical Feature

  • Shanghai, China
  • 12, 000tons/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Stainless Steel
  • Flange
  • Worm Gear
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$199~299

PRIMARY PARAMETERS

Model NO.
Q47F-150lb~2500lb
Type
Flexible Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
12 Inches
Class
150-2500
Std.
API6d, API608
Ends Con.
Flanged, Butt-Welded
Trademark
FYV
Transport Package
Plastic+Wooden Box
Specification
API/ISO/CE/GB
Origin
Wenzhou, Zhejiang, China
HS Code
8481804090

DETAIL DESCRIPTION

Ball valves: Top-Entry Ball Valve

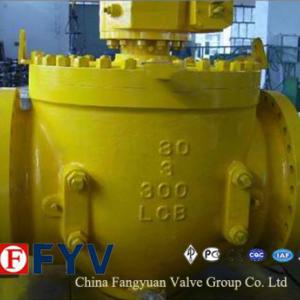

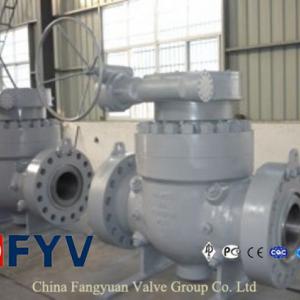

API 6D Forged/Cast Steel Top Entry Trunnion Ball Valve
MAIN FEATURES:
The top-entry ball valve is designed as an integrated valve body. Its support and ball rod fixed by an upper-assembled pivot and an integrated pivot respectively and the integrated high-strength ball rod ensure an accurate ball positioning. The unique technology of retractable valve seat is adopted, realizing online replacement of valve stem, valve stem seal rings, metal valve seats and preloaded springs.

Design Features
The ball valve are designed in accordance with ISO14313,API 6D,API608,BS 5351;
Simple structure with good tightness and small torque;
One piece type body;
Have reduce bore and full bore with the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;

Optional extended bonnet.


TOP ENTRY BALL VALVE is mainly used in pipeline and industry system and it has a top entry and on line maintenance function.It has a lot of advantages,such as small fluid resistance,simple structure,small volume,light weight,reliable saaling,convenience for operation and maintenance,open and close quickly,as well as start and close flexibly.

1.One piece body
One piece body is used for the body to guarantee sufficient strength and rigidity under maximum rated operating pressure.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of operating condition.Enough margin wall thckness and adaptation of high strength connective bolts are convenient for valve maitenance and sufficiency to support the stress from piping.

2.Top entry
Its most difference from common ball valve is that its maintenance can be made on pipe line and without dismounting from the pipe line.The back space seat structure is adopted for the seat and the rear portion of seat retainer is oblique angle to prevent accumulation of impurity from affecting back space of seat.

3.Low operation torque
Top entry series ball valve has a trunnion mounted ball,whose surface is ground,polished and hard face treated.The ball and stem is integrated,sliding bearing is installed on the external bore so that the friction radius is small and operation torque is very low.

4.Emergency sealing
Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve.When sealing of stem or seat is damaged to induce leakage,the compound can be used to do the second time sealing.A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance.The top of the compound injection valve is the connector for fast connection with compound injection gun.

5.Reliable sealing
The seat sealing is formed by seat sealing and metal retainer component.The seat retainer floats axially and low pressure sealing of valve seat is reached by pre-pressure of spring.In addition,the piston effect of valve seat is designed reasonably,which realized high pressure sealing by the pressure of operating medium and realize the interception of retainer to form the sealing of the body.The expansion graphite ring is designed to realize sealing under fire condition.

6.Double block&bleed(DBB)
When ball is full open or close position,the transmitter substance in center cavity of body can be released by drainage and emptying devices.In addition,the over loaded pressure in the center cavity of valve can be  released to low pressure end by self relief seat.

 7.Anti-static and fire safe design
The fire prevention design of valve meets the requirement in API6FA/API607 standard and the design of the anti-static conforms to regulations in API6D and BS5351.

8.Extension stem
For the underground installed valve,the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.

9.Various driving types
The top pad of valve designed according to ISO 5211,which is convenient for connection and exchange of various drivers.The common driving types are manual,electrical,pneumatic and pneumatic/hydraulic.


Our Advantages:
1.We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters : 110,000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

We are the professional manufacturer of Slab Gate Valve.

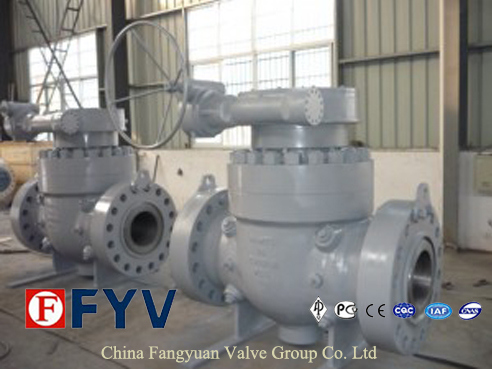

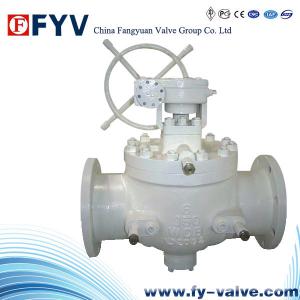

API 6D Forged/Cast Steel Top Entry Trunnion Ball Valve

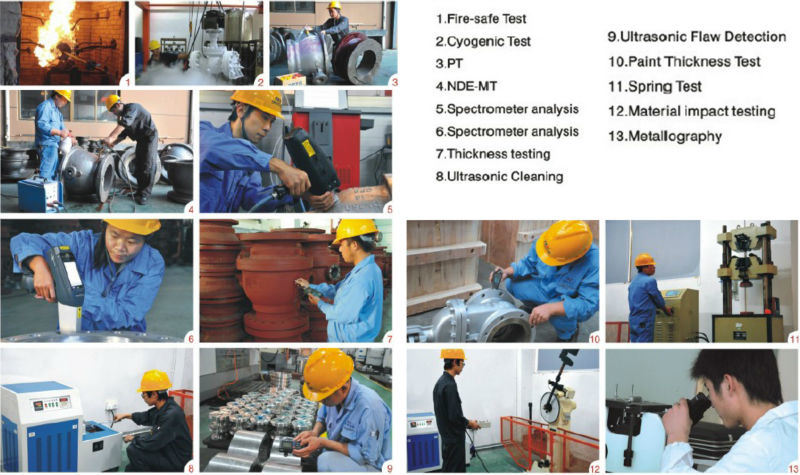

Fangyuan Valve Group has a series of quality control system.


API 6D Forged/Cast Steel Top Entry Trunnion Ball Valve


Standard2-56
50-1400
2-48
50-1200
2-30
50-750
2-16
50-400
1-8
25-200
 1-8
25-200
1-8
25-200
1-8
25-200
Low Temperature-46ºC/-50°F2-56
50-1400
2-48
50-1200
2-30
50-750
2-16
50-400
1-8
25-200
1-8
25-200
1-8
25-200
1-8
25-200
Cryogenic-47ºCto-196ºC/-52°Fto-320°F2-36
50-900
2-36
50-900
2-24
50-600
2-12
50-300

Sub Sea2-56
50-1400
2-48
50-1200
2-30
50-750
2-16
50-400
1-8
25-200
1-8
25-200
1-8
25-200
1-8
25-200
Underground2-56
50-1400
2-48
50-1200
2-30
50-750
2-16
50-400
1-8
25-200
1-8
25-200
1-8
25-200
1-8
25-200
High Temperature
280ºCto450ºC/536°Fto842°F
2-36
25-900
2-36
25-900
2-24
50-600
2-12
50-300
1-8
25-200
1-8
25-200
1-8
25-200
1-8
25-200
Underground-
LowTemperature-46ºC/-50°F
2-56
50-1400
2-48
50-1200
2-30
50-750
2-16
50-400
1-8
25-200
1-8
25-200
1-8
25-200
1-8
25-200

BodyA105A182 F304A182 F316A182F304L        A182 F316L
Body capA105A182 F304A182 F316A182 F304LA182 F316L
BallA105+NipA182 F304A182 F316A182 F304LA182 F316L
StemA105+NipA182 F304A182 F316A182 F304LA182 F316L

SeatA105+NipA182 F304A182 F316A182 F304LA182 F316L
Seat ringPTFE/RPTFE/NYLON
Fixed turnnion         A105+NipA182 F304A182F316A182 F304LA182 F316L



Part nameMaterial
BodyWCB/A105/CF8M/F316/CF8/F304/CF3M/F316L/CF3/F304L/CD3MN/F51
Sealing ringFlexible graphite
StemF6a/A105+ENP/F304/F316/F304L/F316L/F51
BonnetWCB/A105/CF8M/F316/CF8/F304/CF3M/F316L/CF3/F304L/CD3MN/F51
BoltB7M/B8M
Lower lidA105+ENP/F304/F316/F304L/F316L/F51
Ball(F304/F304L/F316/F316L/F51)+lonitriding/HardChromium/Nialloysurfacing
PackingFlexible graphite
Spring17-4PH/Inconel series
Bushing(304/316)+lonnitriding
NutB7M/B8M
Seat(F304/F304L/F316/F316L/F51)+Stellite
Seal gasket304+Flexible graphite
