API Side Entry Trunnion Ball Valve

Forged Steel Trunnion Mounted Ball ValvesBolted cover or welded cover, 3-PC Body, trunnion BallFull or Reduced bore, Blowout Proof StemFire safe and Anti staticDual seat with injection and drain & outletASTM A105N, A182 F304, A182 F316, A182 F304L, A

Technical Feature

  • Ningbo, China
  • 12000 Tons/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Carbon Steel
  • Flange
  • Electric
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~88

PRIMARY PARAMETERS

Model NO.
API 6D
Type
Fixed Ball Valve
Function
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature
High Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
1u2032u2032-56u2032u2032 Inches
Class
150#-2500#
Trademark
FYV
Transport Package
Plastic+Wooden Box
Specification
SIZE 1u2032u2032-56u2032 Inches
Origin
China
HS Code
8481804090

DETAIL DESCRIPTION

Forged Steel Trunnion Mounted Ball Valves

Bolted cover or welded cover, 3-PC Body, trunnion Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N, A182 F304, A182 F316, A182 F304L, A182 F316L

Standards compliance
Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607~API 6FA
Test and inspection: API 598, API6D

BodyA105A182 F304A182 F316A182F304LA182 F316L
Body capA105A182 F304A182 F316A182 F304LA182 F316L
BallA105+NipA182 F304A182 F316A182 F304LA182 F316L
StemA105+NipA182 F304A182 F316A182 F304LA182 F316L
SeatA105+NipA182 F304A182 F316A182 F304LA182 F316L
Seat ringPTFE/RPTFE/NYLON
Fixed turnnionA105+NipA182 F304A182F316A182 F304LA182 F316L

Contact spring17-7PH/In conelIn conelIn conelIn conelIn conel
Cover boltA193 B7A193 B8A193 B8MA193 B8MA193 B8M
Cover nutA194 2HA194 8A194 8MA194 8MA194 8M
BearingSF-1SF-1SF-1SF-1SF-1

API Side Entry Trunnion Ball Valve

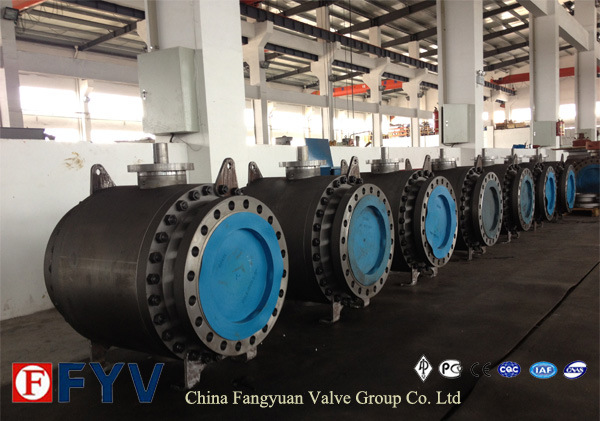

API Side Entry Trunnion Ball Valve
API Side Entry Trunnion Ball Valve

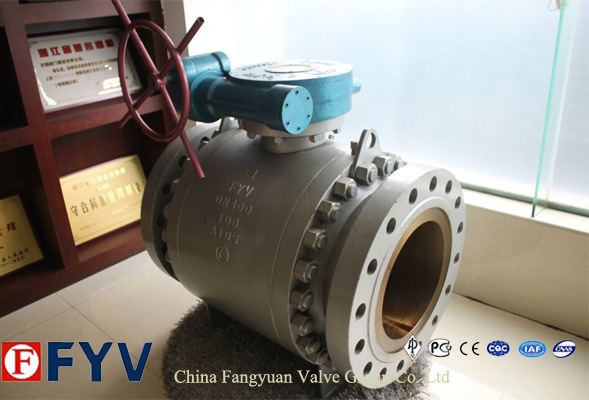

API Side Entry Trunnion Ball Valve

API Side Entry Trunnion Ball Valve
API Side Entry Trunnion Ball Valve
