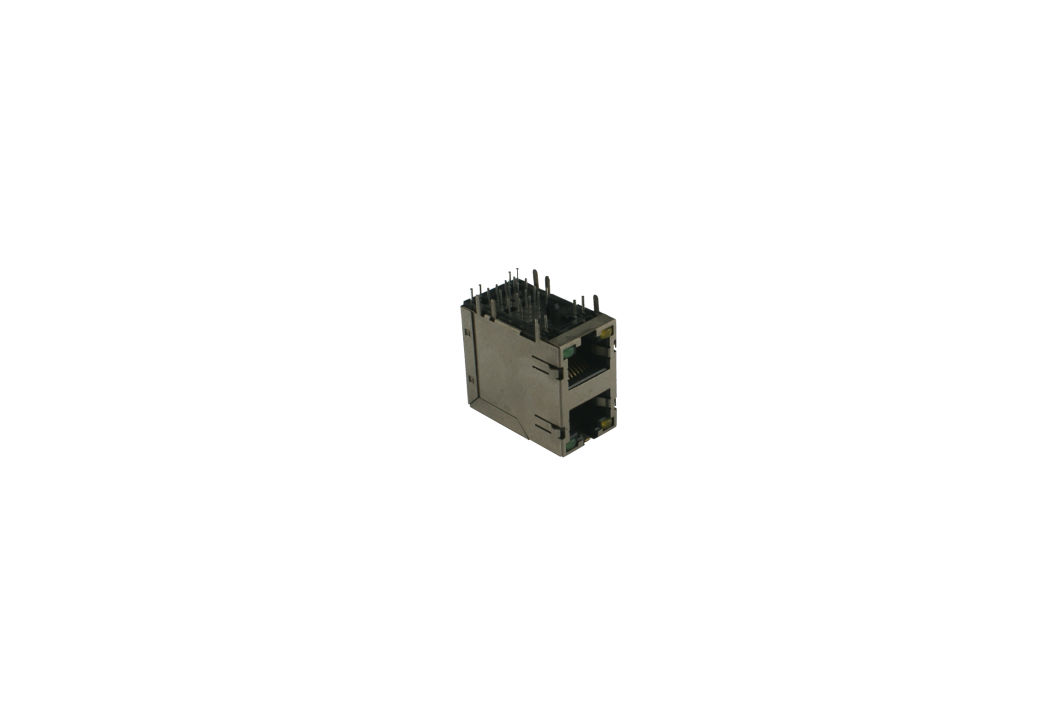

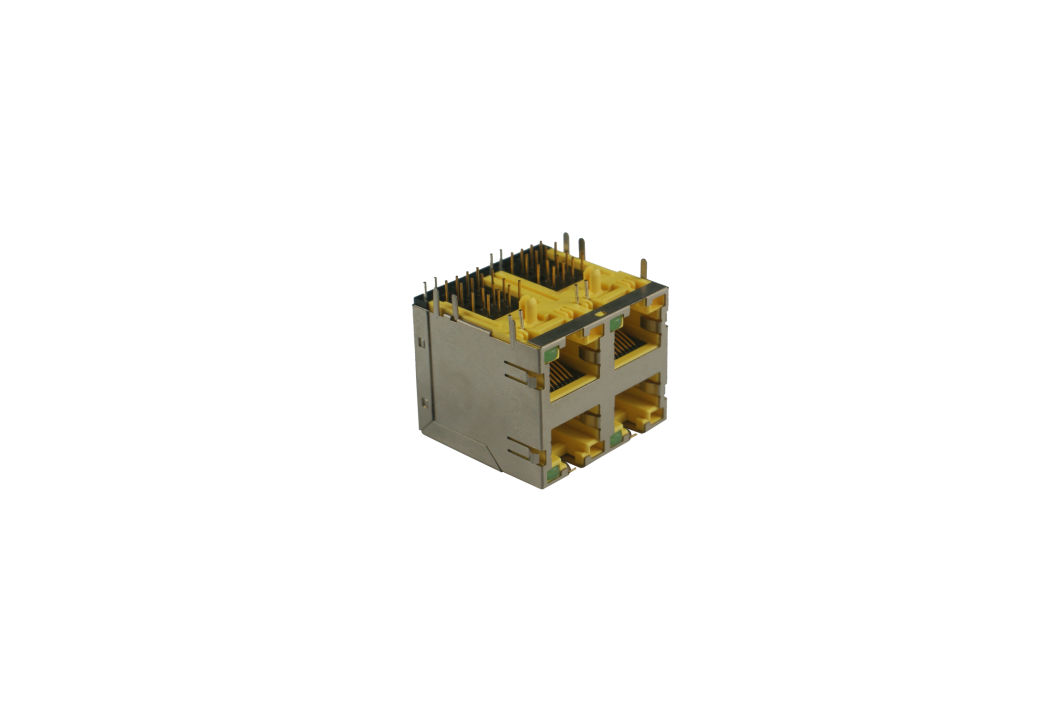

Multi-Port Top Entry with/Without LED Rj 45 Connector

Technical Feature

Ningbo, China

30, 000, 000

L/C, T/T, Western Union, Paypal

PCB, Communication

Optional

Rj Connector

Send Standard Inquiry

Add Inquiry List

$0~5.98

PRIMARY PARAMETERS

Customized

Working Frequency

High Frequency

Feature

Fire/Flame Retardant

Cards Support

Single Card

Shield

Phosphor Bronze

Thickness

Option/ Gold Flash

Cage

Optional

Housing

Glass Filled Polyester

Trademark

ZSNOW

Transport Package

Custom Plastic Tray, Box

Specification

ROHS

Origin

Ningbo

DETAIL DESCRIPTION

Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωmax
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel 0.35mm thickness phosphor bronze alloy selective gold Plating over nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Gold flash, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch

Multi-Port Top Entry with/Without LED Rj 45 Connector

Multi-Port Top Entry with/Without LED Rj 45 Connector
