Product Description:
Butterfly Valve Type:
Package:
Company Information:

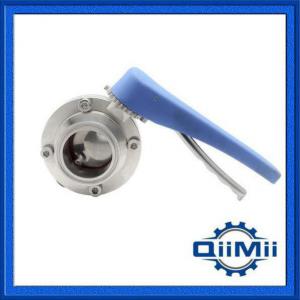

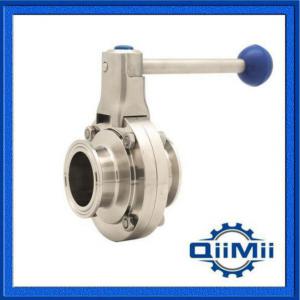

| Product Name: | Ss304/Ss316L Sanitary Stainless Steel Butterfly Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 1/2"-8" or DN15-DN200 |
| Connection Way: | Weld, Clamp, Male, Female, Flange, or Combinations |
| Operated: | Manual, Pneumatic, Electric |
| Manual Handle: | Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions), Stainless Steel Trigger Handle (13 Positions) |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Working Pressure: | 0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150) |
| Packing Details: | Usually bubble pack for each Tri-clamp Butterfly Valve within carton box, Plywood case is also available depends on the quantity and the way of transport. |
