Product Description:

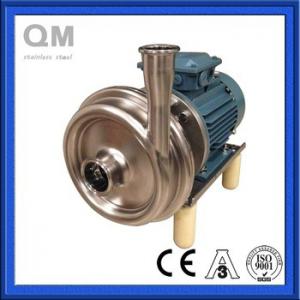

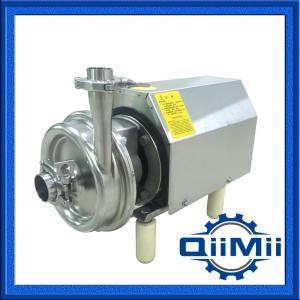

Sanitary Centrifugal Pump Stainelss Steel Pump for Food Industry SS304/316L
The Series centrifugal pump is your solution to a lower cost of ownship while providing the the flexibility your operations need. Its stainless steel construction provides the durability, intergrity and absolute quality required for your sanitary fluid transfer operations.
Technical Specification:
It will be helpful when you send a inquiry to us:
Fluid Medium:
Voltage and frequency:
Material:
Connections:
Flow rate, pressure and temperature
Density and viscosity of products
Other requirements

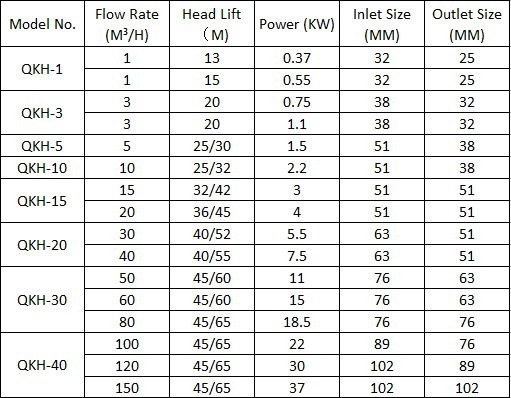

Model list for you to choose:
FAQ:
Q: Why would I choose you?

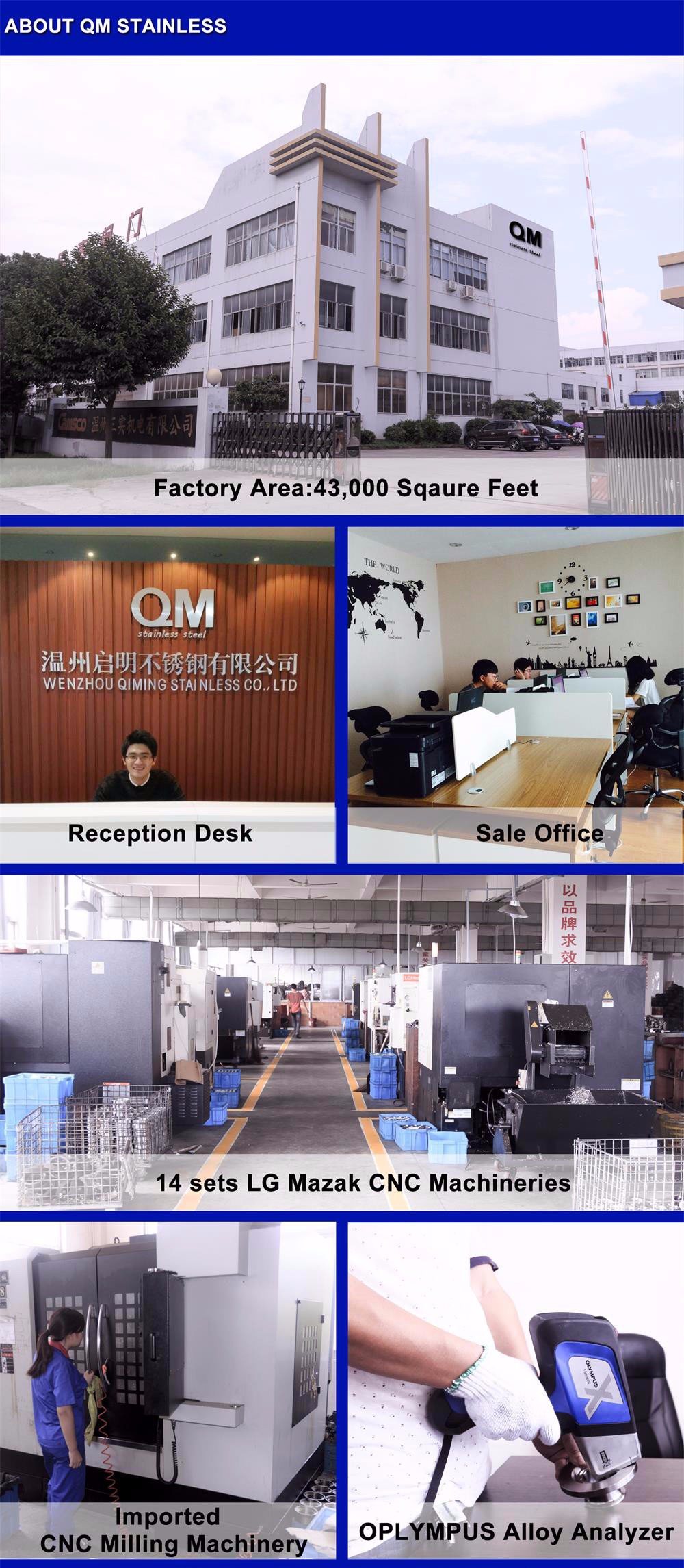

Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What's the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What's the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then list couples of reasonable options with Pros and Cons to customers, letting them to decide.
Sanitary Centrifugal Pump Stainelss Steel Pump for Food Industry SS304/316L
The Series centrifugal pump is your solution to a lower cost of ownship while providing the the flexibility your operations need. Its stainless steel construction provides the durability, intergrity and absolute quality required for your sanitary fluid transfer operations.
Technical Specification:
| Body Materials: | SS304, SS316L |
| Mechnical seal: | C/SIC/EPDM |
| Max. Discharge Head: | 120m³/h |
| Max. Revolution: | 2900r/min |
| Temperature Range: | -20~+135ºC(EPDM) |
| Max. Inlet Pressure: | 58Psi/4Bar |
| Max. Outlet Pressure: | 94Psi/6.5Bar |
| Supply pressure for air actuator: | 70 ~ 115psi |
| Voltage: | AC 220V, 380V, 460V, 690V, 50HZ, 60HZ |
| Standards: | DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE |
| End Connections: | Clamp, Union, Butt-weld, or others upon request |
It will be helpful when you send a inquiry to us:
Fluid Medium:
Voltage and frequency:
Material:
Connections:
Flow rate, pressure and temperature
Density and viscosity of products
Other requirements
Model list for you to choose:
FAQ:
Q: Why would I choose you?
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What's the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What's the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then list couples of reasonable options with Pros and Cons to customers, letting them to decide.
