Belt Conveyor Specifications:
| 1.Name | belt conveyor | |
| 2.Model | B400 | |
| 3.Capacity | 40-80t/h | |
| 4.Belt Length Power/power | I(m/kw) | ≤12/1.5 |
| II(m/kw) | 12-20/2.2-4 | |
| III(m/kw) | 20-25/3.5-7.5 | |
| 5.Belt Width(mm) | B400 | |
| 6.Belt Speed(m/s) | 1.3-1.6 |
Belt Conveyor Brief Description:
1. Name: belt conveyor
2. Model: B400
3. Quality: national quality control standards
4. Certification: CE/ ISO9001:2008
Belt Conveyor Introduction:
White Lai offer belt conveyor series. This series belt conveyor is widely used in mining, metallurgy industry to transport both of bulk materials and end products. According to different technology it can be used in single, multiple or combined with other equipments to form horizontal or incline transportation system to satisfy different production line arrangement needs. It works with environment temperature range -20ºC--+40ºC, material temperature below 50ºC.
Belt Conveyor Working Principle:

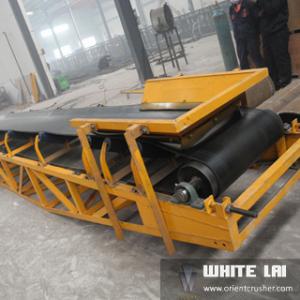

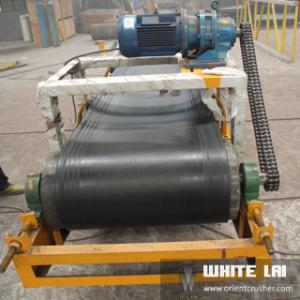

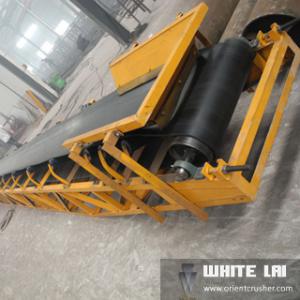

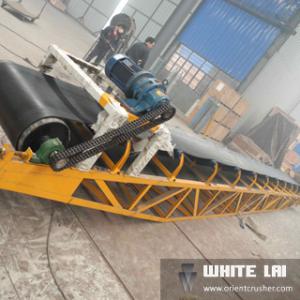

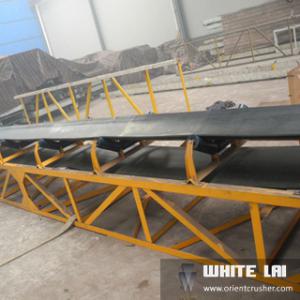

Belt Conveyor consists of two conveyor rollers, some carrier roller, steel frame, rubber belts and tight conveyor components. On the head, connecting with motor, rotating drum called driving roller; another tail drum is to change the direction of rubber belt movement called returning roller. Driving roller driven by a motor through reducer, conveyor and conveyor drive roller drag the belts relying on friction between them. Usually the drive rollers are mounted at the discharge end, to increase traction receiving drag. Material from the feed, fall to the rotating belt, relying friction transported to the discharge end for unloading.
Belt Conveyor Advantages and Characteristics:
1. Smooth, material and conveyer belt can avoid transporting content damage.
2. Large transportation capacity, good insulation effect, do not need cooling device, less power consumption.
3. Simple structure, debugging easier, easy maintenance.
4. Start, stop quickly, smooth operation, good performance, small noise.
5. Convenient installation, do not need special foundation and its installed by bolts, facilitate mobile location.
7. Vertical transmission structure form, more suitable for the coal and underground mines used on transport machinery.
Belt Conveyor Guarantee and After-sales Service:
1. One year guarantee for main machine components, exclude wearing parts.
2. Experienced technicians guidance is available
3. 24 hours technical support by e-mail, by phone.
4. Use-friendly English user manual
5. Engineers could be dispatched to the quarry site, if requested by customer.

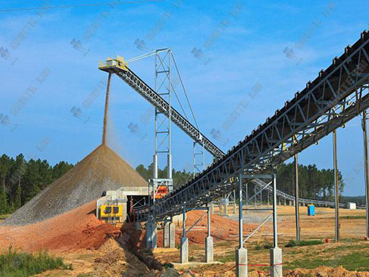

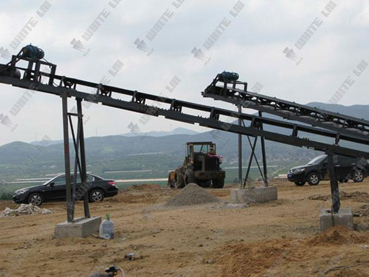

Belt Conveyor Applications:
This series belt conveyor is widely used in mining, metallurgy industry to transport both of bulk materials and end products.
Belt Conveyor Site:
China
