• Model number: 304L645A+
• Place of Origin: China
• Shaft Dimension: Φ12* L645mm (Stainless Steel)

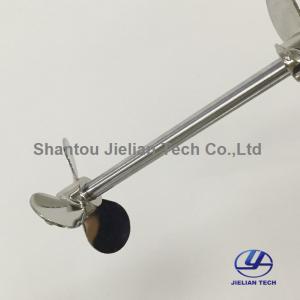

• Blade:Type A(Stainless Steel): Φ94mm
• Air intake-tube: 8mm
• Power:  1/8 HP
• Free speed: 50~2500 r/min
• Capacity: 50L square drum(or round drum)
• Spare part: governor valve(Brass); stainless steel blade

Advantages:

1.Pneumatic mixer machine is various speed available. Just to control the inlet valve or vent valve, then it can adjust the motor's output power and revolving speed.

2.Its working environment is not affected by vibration, high temperature, electromagnetic and radiation. Applies to bad working environment. It can work as usual under the bad condition like inflammable, explosive, high temperature, vibration, moisture and dust.

3.It is easy to operate, maintain and repair. Pneumatic motor is simple structure, small, light and strong power. Using air as medium, easy operation, easy maintenance.

Pneumatic mixer mainly used in the industries requesting anti-explosion, Flammable and explosive, dust, overloading, and wet workplace, such as Petroleum, chemical industry, paint, oil paint, wood, food, cosmetic, etc.

Applied range:  oil paint, printing ink, seed fat, resin, asphalt, gooey, medicine liquid, motor oil, dope, coloring matter and so on.
