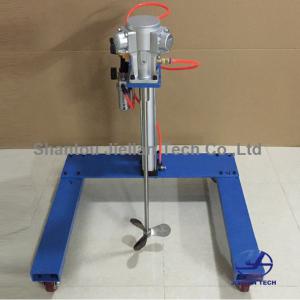

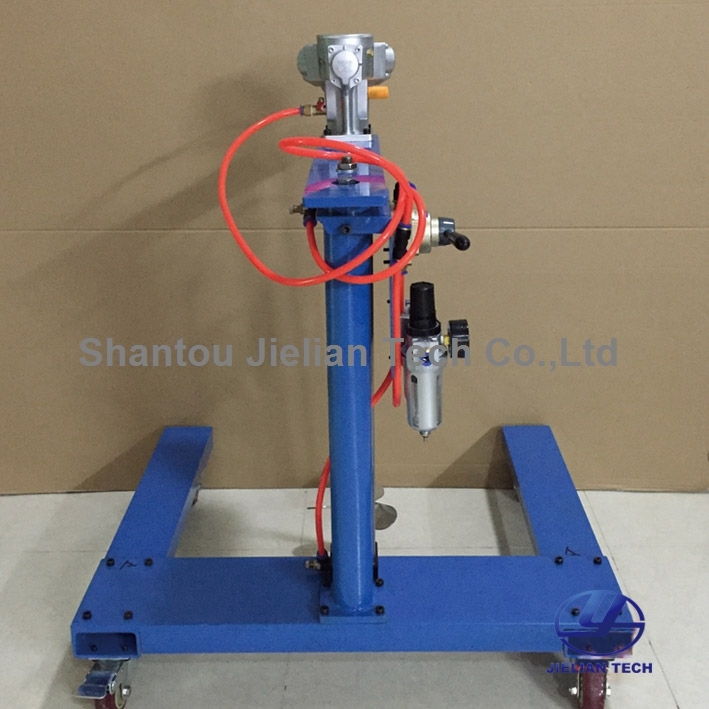

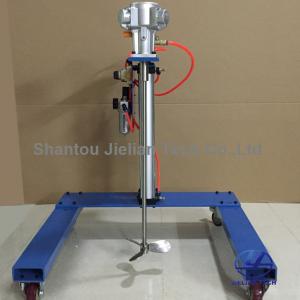

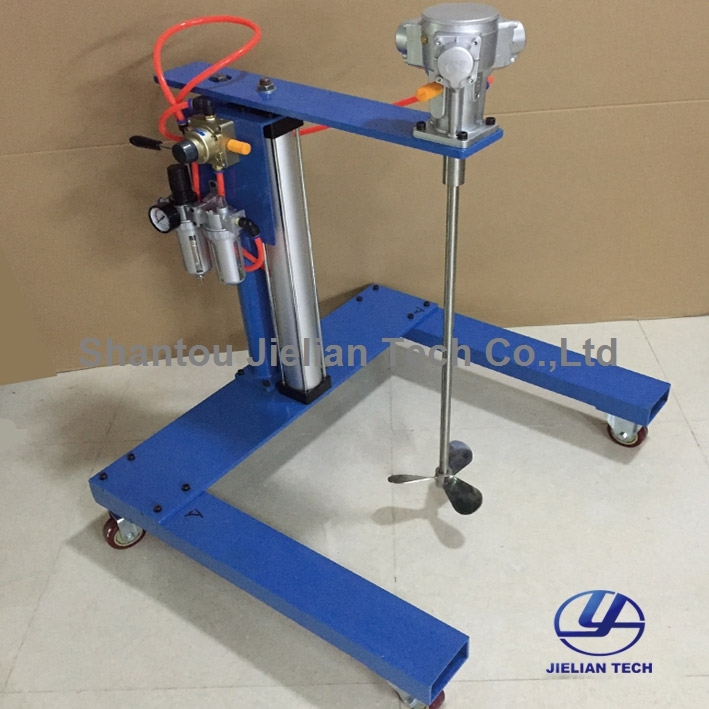

Model number:800U

Revolving Speed: 0-900RPM (Various speed available)

Mixing Shaft: Φ16mm*L500mm (diameter & length are optional)

Blade Material: Stainless Steel / Φ200mm

Max Mixing Capacity:170L

Features:

1. Four wheels in the bottom, moveable or brake.

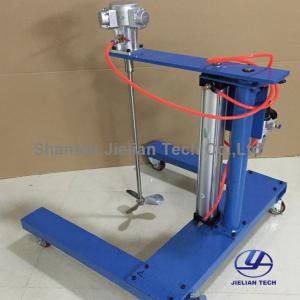

2. Free positioned lifting by the air cylinder.

3.Mixing range:it is suitable to mix about 170kg material, mixing barrel diameter and height less than 600mm is available.

Advantage:

1.Large torque, low air consumption, low noise, stable performance

2.Donot need gas, no pollution.

3.Air compressor as power, no sparks, explosion-proofing

4.Various speed available.

5.It can work for a long time in case of full load.

6.Bi-rolling, rotating forward or back

7.Working Pressure: 6 kg/cm²  (85 PSI); Max working pressure: 8 kg/cm²  (115 PSI)

8.Working Environment Temperature: -10ºC~120 ºC

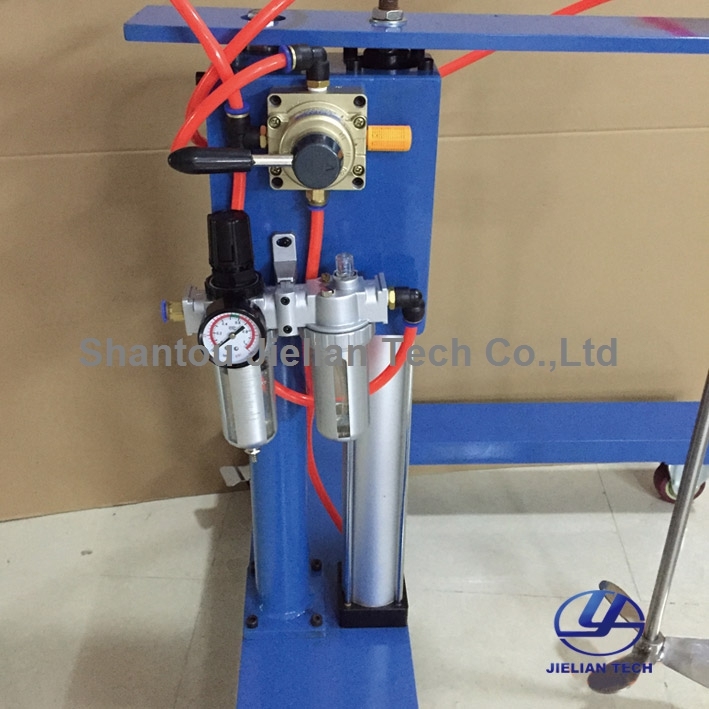

9.It needs air filtration oil mist device when air motor working, it can reach the best efficiency and long service life.

10.Suitable industries: Paint, ink, floor production line, coating production line, chemical, food, automobile, motorcyle, electron, container, ship, cosmetics, essence, spice, shoe factory, leather factory, wooden product factory, artwork, paper-making, adhesive, tire manufactring, water treatment, etc.

Pneumatic mixer mainly used in the industries requesting anti-explosion, Flammable and explosive, dust, overloading, and wet workplace, such as Petroleum, chemical industry, paint, oil paint, wood, food, cosmetic, etc.


Applied range:  oil paint, printing ink, seed fat, resin, asphalt, gooey, medicine liquid, motor oil, dope, coloring matter and so on.
