Packaging & Delivery
Packaging Detail: EXPORT STANDAR WOODEN CASE
Delivery Detail: WITHIN 7 DAYS
Specifications

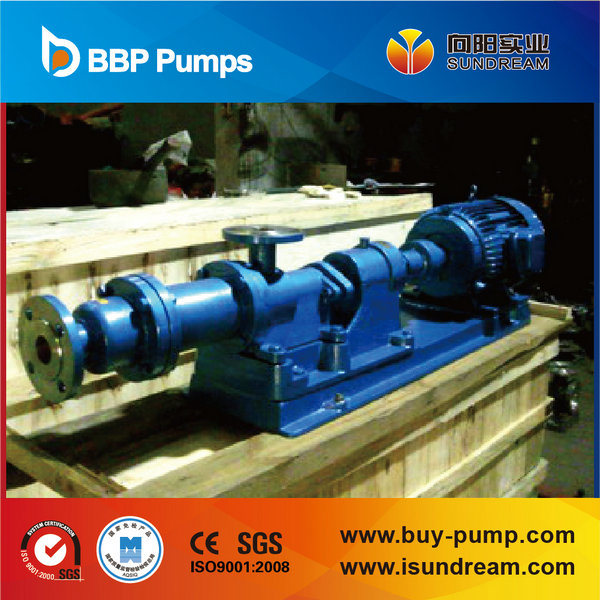

1. Positive displacement progressive cavity pump
2, HIgh viscosity up to 200, 000 cp
3. Food grade rubber for stator
4. SS rotor
Brief
1-1B series pump is a closed type screw pump of inner gearing, is one of rotor pump. Because of its adaptability for medium. Stable flow, well suction ability, low presure fluctuate. It is not only transport all kinds of flow medium, but also the medium with high viscosity., suspend granule or solid granule and fibre., etc.
Excellent performance and high effifency make it widely applicate in mining, environment protect, boats, petroleum, chemical, food stuff, pharmacy, brewage, construction, mining, printing, paper making, electricity, boller industrial. Etc.
Working Principle
Single screw pump is a inner gearing rotor pump, the main working parts are eccentric screw (rotator) and static bush (stator), because of special geometry shope. Form several single sealed cavity to pump the medium from suction part to discharge part continuously and regularifily.
Feature
1 High viscosity medium
2 medium contain solide granule and fibre
3 continuous operation, stable pressure without periodicity fluctuation
4 To stir gently, can not destroy the stucture of granule be transported
5 low nosie
Application
Environmental protection:
The shipping industry:
The medical and daily health product industry:
The canned food industry:
Brewing industry:
The construction industry:
The mining industry:
The chemical industry:
The printing & paper industry:
Packaging Detail: EXPORT STANDAR WOODEN CASE
Delivery Detail: WITHIN 7 DAYS
Specifications
1. Positive displacement progressive cavity pump
2, HIgh viscosity up to 200, 000 cp
3. Food grade rubber for stator
4. SS rotor
Brief
1-1B series pump is a closed type screw pump of inner gearing, is one of rotor pump. Because of its adaptability for medium. Stable flow, well suction ability, low presure fluctuate. It is not only transport all kinds of flow medium, but also the medium with high viscosity., suspend granule or solid granule and fibre., etc.
Excellent performance and high effifency make it widely applicate in mining, environment protect, boats, petroleum, chemical, food stuff, pharmacy, brewage, construction, mining, printing, paper making, electricity, boller industrial. Etc.
Working Principle
Single screw pump is a inner gearing rotor pump, the main working parts are eccentric screw (rotator) and static bush (stator), because of special geometry shope. Form several single sealed cavity to pump the medium from suction part to discharge part continuously and regularifily.
Feature
1 High viscosity medium
2 medium contain solide granule and fibre
3 continuous operation, stable pressure without periodicity fluctuation
4 To stir gently, can not destroy the stucture of granule be transported
5 low nosie
Application
Environmental protection:
The shipping industry:
The medical and daily health product industry:
The canned food industry:
Brewing industry:
The construction industry:
The mining industry:
The chemical industry:
The printing & paper industry:
| model | inlet/outlet(mm) | speed(rpm) | flow(m3/h | pressure(Mpa) | head(M) | motor(kw) | |
| 1-1B1 | 25mm | 960 | 1.5 | 5 | 50 | 1.1 | |
| 1-1B1 | 25mm | 960 | 1.5 | 5 | 50 | 1.5 | |
| 1-1B1 | 25mm | 960 | 1.5 | 10 | 100 | 2.2 | |
| 1-1B1 | 25mm | 960 | 1.5 | 12 | 120 | 2.2 | |
| 1-1B1.5 | 40mm | 960 | 3.2 | 8 | 80 | 2.2 | |
| 1-1B1.5 | 40mm | 960 | 3.2 | 8 | 80 | 3 | |
| 1-1B1.5 | 40mm | 960 | 3.2 | 12 | 120 | 4 | |
| 1-1B2 | 50mm | 960 | 5.6 | 8 | 80 | 3 | |
| 1-1B2 | 50mm | 960 | 5.6 | 12 | 120 | 5.5 | |
| 1-1B2.5 | 65mm | 960 | 6.5 | 6 | 60 | 3 | |
| 1-1B2.5 | 65mm | 960 | 6.5 | 12 | 120 | 5.5 | |
| 1-1B3 | 75mm | 960 | 12 | 6 | 60 | 5.5 | |
| 1-1B3 | 75mm | 960 | 12 | 6 | 60 | 7.5 | |
| 1-1B3 | 75mm | 960 | 12 | 12 | 120 | 11 | |
| 1-1B4 | 100mm | 960 | 16 | 6 | 60 | 7.5 | |
| 1-1B4 | 100mm | 960 | 16 | 12 | 120 | 11 | |
| 1-1B5 | 125mm | 960 | 19 | 6 | 60 | 11 | |
| 1-1B6 | 150mm | 960 | 24 | 6 | 60 | 15 | |
