SW & SWH series non-clogging self-priming high capacity water Pump is our latest generation product base on the latest technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
Its known as King of Self Priming Pump, and the most idea new-generation sewage product.
Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the sewage of uptown;
3. Sewage transportation in Hospital, hotel, slaughter house, fish breeding;
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Sewage and deposit of water purifying system;
7. Industrial sewage of light industry, paper mill, textile, food prpcessing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
9. Irrigation, flood protection, wastewater, sewage treatment, dewatering, industrial, construction, petroleum etc.
Features: Solids Handling Impeller, Exclusive Abrasion-Resistant Seal, Removable Cover Plate with Easy-Grip Handle, Replaceable Wear plate, Removable Rotating Assembly.
Specification:
1. Inlet/Outlet: 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2. Impeller Diameter: 158.74mm-457.2mm
3. Rotary Speed: 550RPM-2150 RPM
4. Flow Rates: 8m3/h-1275m3/h20GPM-5500GPM
5. Head: 6m-63m
6. Horsepower: 1HP-125HP
7. N. W: 92KG-998KG
8. G. W: 114KG-1066KG
9. Solid Passing: 20.63mm-76.2mm
10. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
11. Diesel Driving: Water cooled or air cooled
12. Method of Connection: Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
13. Drive Variation: Cummins, Deutz, Ricardo, Chinese Diesel, Electric Motor
14. Skid Mounted on Trailer2 wheels or 4 wheels Trailer/Trailer

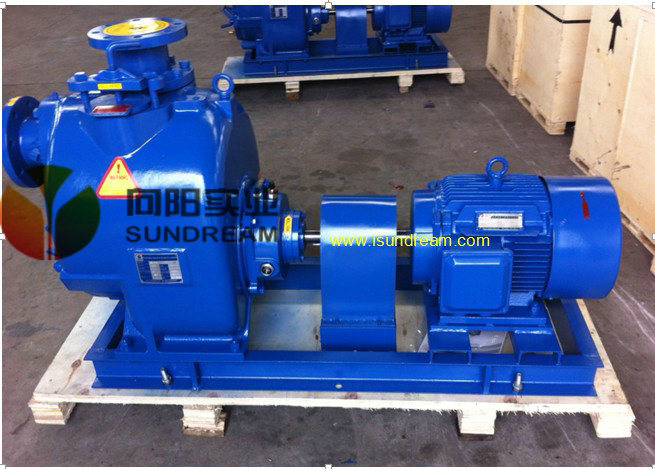

photos for electric pumps:
photos for diesel engine pump for reference:
Its known as King of Self Priming Pump, and the most idea new-generation sewage product.
Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the sewage of uptown;
3. Sewage transportation in Hospital, hotel, slaughter house, fish breeding;
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Sewage and deposit of water purifying system;
7. Industrial sewage of light industry, paper mill, textile, food prpcessing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
9. Irrigation, flood protection, wastewater, sewage treatment, dewatering, industrial, construction, petroleum etc.
Features: Solids Handling Impeller, Exclusive Abrasion-Resistant Seal, Removable Cover Plate with Easy-Grip Handle, Replaceable Wear plate, Removable Rotating Assembly.
Specification:
1. Inlet/Outlet: 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2. Impeller Diameter: 158.74mm-457.2mm
3. Rotary Speed: 550RPM-2150 RPM
4. Flow Rates: 8m3/h-1275m3/h20GPM-5500GPM
5. Head: 6m-63m
6. Horsepower: 1HP-125HP
7. N. W: 92KG-998KG
8. G. W: 114KG-1066KG
9. Solid Passing: 20.63mm-76.2mm
10. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
11. Diesel Driving: Water cooled or air cooled
12. Method of Connection: Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
13. Drive Variation: Cummins, Deutz, Ricardo, Chinese Diesel, Electric Motor
14. Skid Mounted on Trailer2 wheels or 4 wheels Trailer/Trailer
photos for electric pumps:
photos for diesel engine pump for reference:
| selection Chart and Performance | |||||||
| item no | model | flow(m3/h) | head(m) | power(kw) | speed(rpm) | inlet/outlet(mm) | weight(kg) |
| 1 | sw-2 | 0-45m3/h | 0-40M | 1kw-15kw | 1150rpm-2900rpm | 2" | 92kg |
| 2 | sw-3 | 0-110m3/h | 0-40M | 1kw-25kw | 650rpm-2150rpm | 3" | 183kg |
| 3 | sw-4 | 0-180m3/h | 0-40M | 2kw-45kw | 650rpm-1950rpm | 4" | 280kg |
| 4 | sw-6 | 0-350m3/h | 0-40M | 2kw-55kw | 650rpm-1550rpm | 6" | 391kg |
| 5 | sw-8 | 0-650m3/h | 0-40M | 5.5kw-90kw | 650rpm-1500rpm | 8" | 634kg |
| 6 | sw-10 | 0-800m3/h | 0-50M | 7.5kw-120kw | 650rpm-1500rpm | 10" | 663kg |
| 7 | sw-12 | 0-1300m3/h | 0-50M | 18.5kw-145kw | 650rpm-1500rpm | 12" | 1066kg |
| 8 | swh-3 | 0-90m3/h | 0-60M | 2kw-30kw | 850rpm-2150rpm | 3" | 225kg |
| 9 | swh-4 | 0-160m3/h | 0-60M | 3kw-50kw | 850rpm-2150rpm | 4" | 297kg |
| 10 | swh-6 | 0-300m3/h | 0-60M | 5kw-90kw | 850rpm-1950rpm | 6" | 437kg |
| for more detailed specification and performance data , please contact us directly by email or call. |
